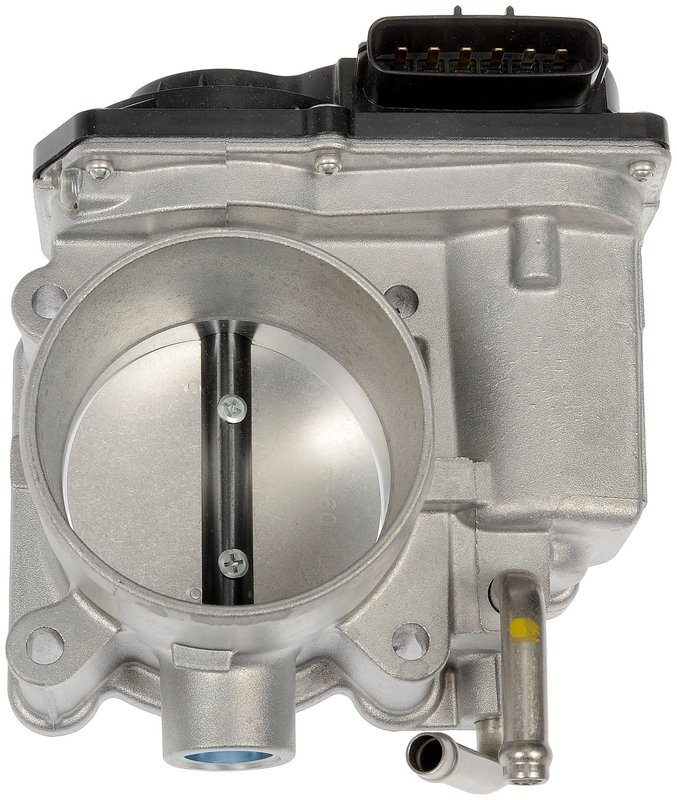

Dorman 977-843 Fuel Injection Throttle Body
| Brand | Dorman 977-843 |
|---|---|
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Gasket Or Seal Included | No |
| Gasket Or Seal Included | Non |
| Adjustable | No |
| Adjustable | Non |
| Inlet Diameter | 70 |
| Inlet Type | Embridado |
| Inlet Type | Flanged |
| Outlet Type | Non-flanged |
| Outlet Type | Sin brida |
| Outlet Quantity | 1 |
| Outlet Quantity | 1 ensamble de manguera del calentador |
| Outlet Diameter | 70 |
| Fuel System Type | Gas |
| Airflow Rate | 95 |
| Bore Diameter | 70 |
| Fuel Injectors Included | No |
| Fuel Injectors Included | Non |
| Idle Air Control Motor Included | No |
| Idle Air Control Motor Included | Non |
| Throttle Body Finish | Natural |
| Throttle Body Material | Aluminio |
| Throttle Body Material | Aluminum |
| Throttle Body Spacer Included | No |
| Throttle Body Spacer Included | Non |
| Throttle Body Type | Electronic |
| Throttle Body Type | Electrónico |
| Throttle Position Sensor Included | Oui |
| Throttle Position Sensor Included | Sí |
| Fits | Toyota · 25 vehicles |
OE-style replacement. Matches original equipment performance for specified electronic throttle body applications.
Integrated sensor. Includes the throttle position sensor for a complete throttle body assembly.
Aluminum construction. Natural-finish housing built from aluminum and PBT materials.
Cross-references Cardone New 6E-8016, Cardone Reman 67-8016 and Frenkit S20136 for the same application. See all 8.
Electronic throttle body replacement
This Dorman fuel injection throttle body is built for specified Toyota applications where idle issues, a malfunction indicator lamp, or diagnostic trouble codes can trace back to contamination inside the electronic throttle body. Part number 977-843 is engineered to match original equipment performance and uses high-quality materials for a direct replacement solution.
Key features
- Electronic throttle body design for gas fuel systems
- 70 mm inlet and bore diameter for the specified application
- Aluminum throttle body construction with a natural finish
- Integrated throttle position sensor included
- 6-terminal blade connector with male electrical connection
- Flanged inlet and non-flanged outlet configuration
Detailed fitment
Compatible with Toyota Tacoma, Toyota Hiace, Toyota 4Runner, and Toyota Hilux applications listed below. Fits 2005-2015 Toyota Tacoma, N/A. Fits 2006-2014 Toyota Hiace, N/A. Fits 2010 Toyota 4Runner, N/A. Fits 2007-2010 Toyota Hilux, N/A. Part number 977-843 is intended for specified vehicles only, and fitment should be verified against the original unit before installation.
What it helps address
- Erratic idle caused by throttle body contamination
- Malfunction indicator lamp concerns related to throttle control
- Diagnostic trouble codes tied to electronic throttle body faults
- Replacement needs after oil ingress or carbon buildup
Installation notes and quality
Installation hardware is not included. This throttle body does not include a gasket or seal, so the sealing components should be confirmed before service. The unit is built to match original equipment performance on specified vehicles and is manufactured to exacting standards to help reduce repeat failures. Part number 977-843 cross-references Cardone New 6E-8016 and Hitachi Automotive ETB0105 for the same application.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2015 | Toyota | Tacoma | 2.7L | L4 | — |
| 2014 | Toyota | Hiace | 2.7L | L4 | — |
| 2014 | Toyota | Tacoma | 2.7L | L4 | — |
| 2013 | Toyota | Hiace | 2.7L | L4 | — |
| 2013 | Toyota | Tacoma | 2.7L | L4 | — |
| 2012 | Toyota | Hiace | 2.7L | L4 | — |
| 2012 | Toyota | Tacoma | 2.7L | L4 | — |
| 2011 | Toyota | Hiace | 2.7L | L4 | — |
| 2011 | Toyota | Tacoma | 2.7L | L4 | — |
| 2010 | Toyota | 4Runner | 2.7L | L4 | — |
| 2010 | Toyota | Hiace | 2.7L | L4 | — |
| 2010 | Toyota | Hilux | 2.7L | L4 | — |
| 2010 | Toyota | Tacoma | 2.7L | L4 | — |
| 2009 | Toyota | Hiace | 2.7L | L4 | — |
| 2009 | Toyota | Hilux | 2.7L | L4 | — |
| 2009 | Toyota | Tacoma | 2.7L | L4 | — |
| 2008 | Toyota | Hiace | 2.7L | L4 | — |
| 2008 | Toyota | Hilux | 2.7L | L4 | — |
| 2008 | Toyota | Tacoma | 2.7L | L4 | — |
| 2007 | Toyota | Hiace | 2.7L | L4 | — |
| 2007 | Toyota | Hilux | 2.7L | L4 | — |
| 2007 | Toyota | Tacoma | 2.7L | L4 | — |
| 2006 | Toyota | Hiace | 2.7L | L4 | — |
| 2006 | Toyota | Tacoma | 2.7L | L4 | — |
| 2005 | Toyota | Tacoma | 2.7L | L4 | — |
