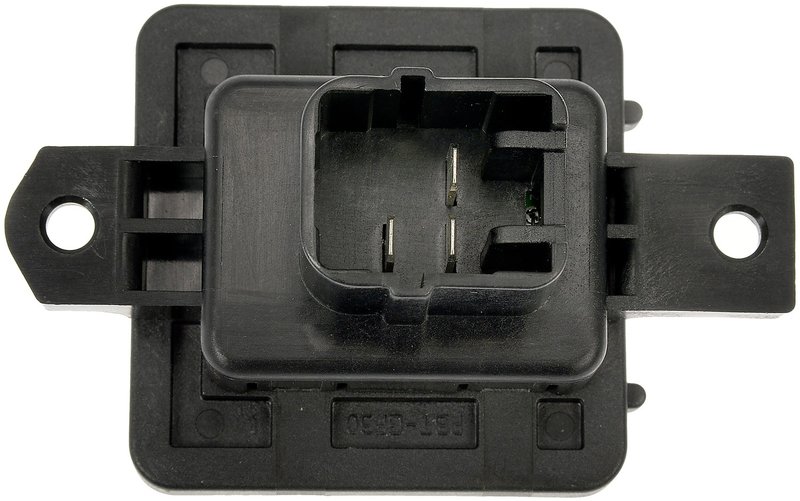

Dorman 984-601 HVAC Blower Motor Resistor
| Brand | Dorman 984-601 |
|---|---|
| Bolt Hole Quantity | 3 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Mounting Hardware Included | No |
| Package Contents | Blower Motor Resistor and Instructions |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Wire Quantity | 0 |
| Wiring Harness Included | No |
| Fits | Mazda · 4 vehicles |
Direct replacement. Matches original equipment operation and performance.
Restores HVAC function. Helps bring back proper heating and cooling control.
Blade terminals. Rectangular connector with a female housing for secure hookup.
Cross-references D65161B15, JA1871 and RU821 for the same application. See all 4.
Dorman 984-601 HVAC Blower Motor Resistor
Restore proper cabin airflow control with this direct replacement HVAC blower motor resistor from Dorman. Built for select 2011-2014 Mazda 2 models, Dorman 984-601 is made to match original equipment operation and performance when the factory resistor has failed.
For Mazda 2 owners dealing with inconsistent fan speeds or a blower motor that only works on certain settings, this replacement resistor provides a straightforward repair path. It is a direct-fit solution for the heating and cooling system on the specified vehicles.
Key Features
- Direct replacement HVAC blower motor resistor for select Mazda applications
- Designed to match OE operation and performance
- Rectangular female connector with 4 male terminals
- 3 bolt-hole mounting pattern for secure installation
- Package includes the blower motor resistor and instructions
- Dorman 984-601 for 2011-2014 Mazda 2 heating and cooling repair
Detailed Description
This blower motor resistor is used to regulate blower fan speeds in the HVAC system by controlling electrical current to the blower motor. When the original resistor burns out, the system can lose one or more fan speeds, or the blower may stop responding correctly. Dorman 984-601 is engineered as a direct replacement for the original part on 2011, 2012, 2013, and 2014 Mazda 2 models, helping restore normal heating and cooling functionality.
This part cross-references D65161B15 and RU821 for the same application. The connector design, terminal layout, and mounting configuration are intended to align with the factory setup on the listed Mazda 2 vehicles.
Common Problems This Part Can Address
- Blower motor works only on certain speed settings
- No cabin airflow from the HVAC vents
- Intermittent heater or A/C fan operation
- Burnt or heat-damaged blower resistor failure
- Loss of proper climate control fan regulation in a Mazda 2
Installation Notes and Tips
Verify connector shape, terminal count, and bolt-hole layout before installation. This resistor uses a single rectangular female connector, 4 male terminals, and 3 mounting bolt holes. No wiring harness or mounting hardware is included, so reuse the original vehicle hardware where applicable. Confirm the vehicle is a 2011-2014 Mazda 2 before replacing the part.
Quality Assurance
Dorman manufactures replacement components to meet the needs of specific vehicle applications, and this part is built as a direct replacement for the listed Mazda 2 fitment. Dorman 984-601 is intended to restore proper HVAC blower motor control on the confirmed applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2014 | Mazda | 2 | N/A | — |
| 2013 | Mazda | 2 | N/A | — |
| 2012 | Mazda | 2 | N/A | — |
| 2011 | Mazda | 2 | N/A | — |
