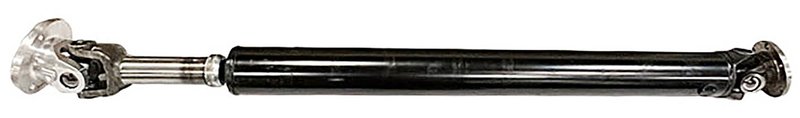

Dorman 986-928 Drive Shaft - Rear

Dorman 986-928 Rear Driveshaft for Mustang

Dorman 986-928 is a complete rear drive shaft assembly for select Ford Mustang applications. It arrives pre-balanced and ready to install with new yokes, steel tubing, and new universal joints for a direct replacement approach on the rear driveline.

Key Features

• Complete drive shaft assembly for rear position applications
• Pre-balanced for installation readiness
• 100% new yokes, tubes, and universal joints
• Steel shaft construction with 3.5 in. shaft diameter
• Pre-greased with grease fitting included
• Bolt-on end design at both ends
• Standard replacement grade
• Phased at 0 degrees
• Compressed length: 52.25 in.; drive shaft length: 53.75 in.

Detailed Description

This Dorman drive shaft is built as a direct replacement for rear driveline service on the Ford Mustang. It uses a steel shaft with a 0.083 in. wall thickness, bolt-on ends, and a non-slip yoke design. The assembly is pre-greased and includes universal joints, while CV joints and an axle nut are not included. For shoppers searching for a Ford Mustang rear drive shaft replacement, Dorman 986-928 provides the core components needed for a straightforward driveline repair.

Compatible With 2018-2023 Ford Mustang, rear. This part cross-references Ford OE numbers JR3Z4R602A and JR3Z4R602X for the same application. Dorman 986-928 is a practical option when replacing a worn or damaged rear driveshaft on Mustang models from 2018 through 2023.

Common Repair Reasons

• Vibration from a worn or out-of-balance driveshaft
• Clunking or driveline noise during acceleration or deceleration
• Excess play from worn universal joints
• Corrosion, tube damage, or shaft wear
• Need for a rear Ford Mustang driveshaft conversion shaft with new U-joints

Installation Notes and Tips

Verify compressed length, flange-to-flange measurements, and rear position fitment before installation. This assembly is phased at 0 degrees and uses bolt-on ends, so alignment and flange orientation should be checked during replacement. Confirm that the vehicle matches the listed 2018-2023 Ford Mustang rear application before ordering Dorman 986-928.

Quality Assurance

Dorman supplies this assembly as a standard replacement driveline component with new yokes, tubes, and universal joints. The pre-balanced design supports a ready-to-install replacement process for the specified Mustang rear driveshaft application.
