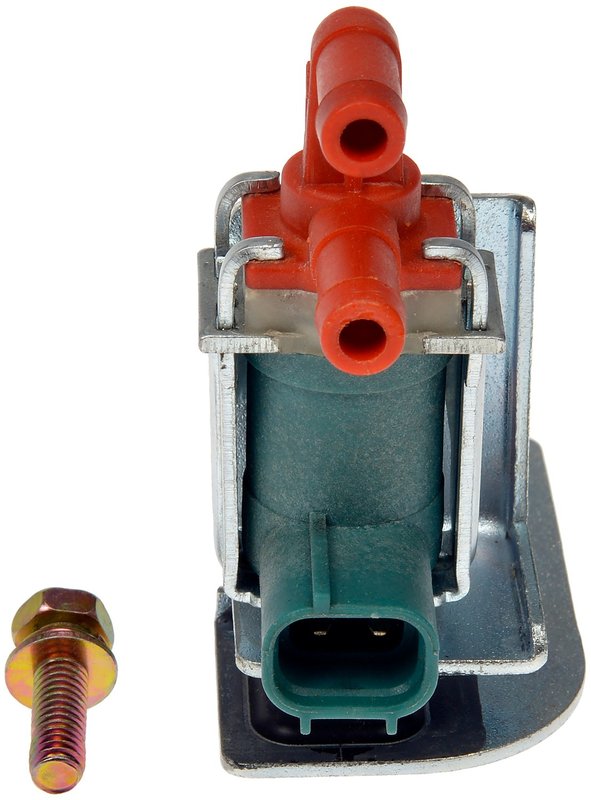

Dorman 994-020 Vapor Canister Purge Valve

Overview of Dorman Vapor Canister Purge Valve 994-020

The Dorman Vapor Canister Purge Valve 994-020 is designed specifically for Toyota Corolla models to ensure proper emission control system function. This valve regulates the flow of fuel vapors from the charcoal canister to the engine intake manifold, helping maintain optimal engine performance and reduce harmful emissions.

• Connector hose inside diameter: 13.70 mm
• Blade terminal type with 2 male terminals
• Single elliptical female connector
• Durable housing made of metal and plastic components
• Two vacuum ports with inlet inside diameter of 4.4 mm
• Overall length of 80.97 mm for precise fitment
• Mount hole diameter of 6.8 mm with one mounting hole
• Includes 1 purge valve and 1 mount screw
• Port outside diameters: 8 mm and 7.92 mm

Detailed Product Description

The Dorman 994-020 vapor canister purge valve features a robust design combining metal and plastic housing materials to withstand the demanding conditions of the evaporative emission system. Its elliptical female connector and blade-type male terminals ensure secure electrical connections. The valve includes two vacuum ports with precise inlet diameters, allowing efficient vapor flow control. Measuring 80.97 mm in length and equipped with a 6.8 mm mount hole, this purge valve is engineered for direct replacement on Toyota Corolla vehicles, maintaining factory specifications and fitment.

Purpose and Common Issues Addressed

• Controls fuel vapor flow from the charcoal canister to the engine
• Prevents excessive fuel vapor emissions into the atmosphere
• Helps maintain proper engine idle and performance
• Resolves check engine light codes related to evaporative system leaks
• Eliminates rough idling or stalling caused by faulty purge valve operation

Installation Notes and Tips

• Ensure the vehicle is off and cooled before installation
• Disconnect the battery to prevent electrical shorts
• Remove the old purge valve carefully, noting connector and vacuum port locations
• Use the included mount screw to secure the new valve in place
• Verify all electrical and vacuum connections are tight and properly seated

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The 994-020 vapor canister purge valve undergoes rigorous quality control to ensure reliable operation within the Toyota Corolla evaporative system. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship.
