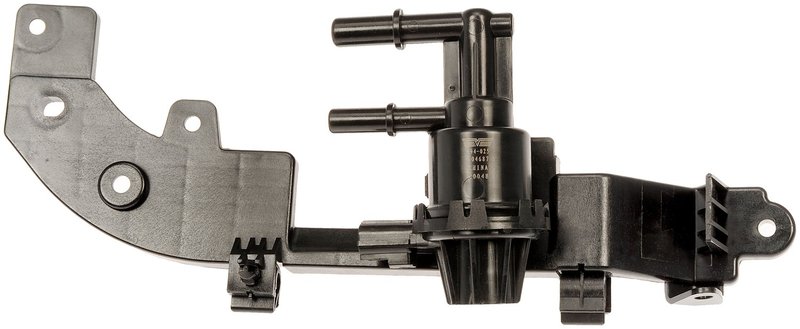

Dorman 994-025 Vapor Canister Purge Valve

Dorman 994-025 Vapor Canister Purge Valve

Dorman 994-025 is a direct replacement vapor canister purge valve for the evaporative emissions system. It is built for a precise fit and plug-and-play installation, helping restore proper purge control on select Ford applications, including Ford Focus and Ford Transit Connect.

Key Features

• Direct replacement purge valve for the evaporative emissions system
• Engineered for a precise fit and straightforward installation
• Plastic housing with a rectangle connector design
• 2-terminal blade-style electrical connection
• 2-port valve layout with 7 mm inlet inside diameter
• Mounting pattern includes 7 mounting holes for OE-style placement
• Cross-references Standard Ignition CP553 for the same application

Detailed Description

This Dorman vapor canister purge valve, part number 994-025, is designed as a direct OE replacement for the original purge valve used in the evaporative emissions system. It uses a female rectangle connector with 2 male blade terminals, a plastic housing, and port sizing that matches the original-style routing for vapor control. The valve measures 112 mm in length and uses an OE-style mounting layout to support accurate installation on the vehicle.

Compatible With 2006-2007 Ford Focus, 2010 Ford Focus, 2011 Ford Focus w/Bracket, and 2010-2013 Ford Transit Connect. If you are searching for a Ford Focus purge valve replacement or a Ford Transit Connect vapor canister purge valve, Dorman 994-025 is built for those applications. This part also cross-references Standard Ignition CP553 for the same application.

What It Helps Address

• Check engine light related to evaporative emissions faults
• Rough idle or drivability issues caused by purge control problems
• Fuel vapor management concerns in the EVAP system
• Hard starting after refueling when the purge valve is not operating correctly
• Failed emissions inspection tied to purge valve malfunction

Installation Notes and Tips

Verify connector style, port sizes, and mounting-hole layout before installation. This purge valve uses a single female electrical connector with 2 terminals and no vacuum connector ports, so matching the OE configuration is important. On the 2011 Ford Focus application, confirm the bracketed mounting arrangement before ordering. For best results, inspect related EVAP hoses and electrical connections during replacement.

Quality Assurance

Dorman designs this purge valve as a direct-fit replacement for the original equipment part and builds it to meet evaporative emissions system requirements. Part number 994-025 is intended to restore proper purge-valve function on select Ford Focus and Ford Transit Connect models while maintaining OE-style fit and operation.
