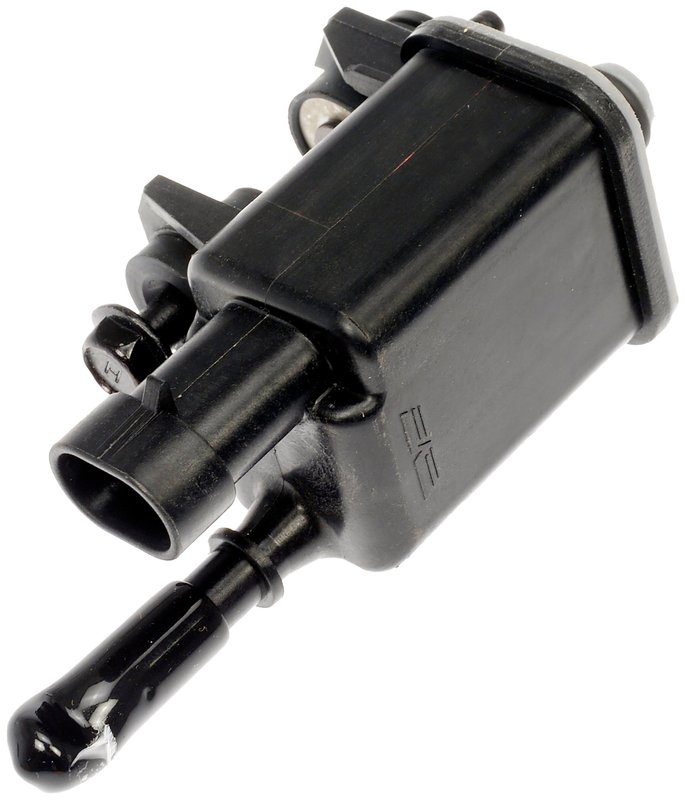

Dorman 994-215 Vapor Canister Purge Valve

Vapor Canister Purge Valve for GM Applications

This Dorman vapor canister purge valve is a direct replacement for the original equipment part, built for plug-and-play installation and proper evaporative emissions control. It is a fitment-based solution for drivers searching for a 2009-2015 Cadillac CTS purge valve, a 2012-2015 Chevrolet Camaro purge valve, or a 2009-2013 Chevrolet Corvette purge valve.

• Direct replacement vapor canister purge valve for evaporative emissions service
• Engineered for OE-style fit and electrical connection
• Plastic housing with oval female connector
• 2-terminal design with 1 vacuum port and 2 ports total
• Mounting bracket and mounting hardware are not included
• Part number 994-215 for catalog and service reference

Detailed Product Overview

Dorman 994-215 is a vapor canister purge valve used in the evaporative emissions system to control fuel vapor flow from the charcoal canister to the engine intake. It is built as a direct OE replacement with a 4.46 in. length, 0.51 in. port 1 outside diameter, 0.31 in. port 2 outside diameter, and 0.18 in. vacuum connector diameter. The oval connector, female housing connection, and 2-terminal layout support a straightforward replacement on the listed Cadillac, Chevrolet Camaro, and Chevrolet Corvette applications. This part cross-references Standard Ignition CP900 for the same application.

Common Symptoms This Part Can Address

• Check engine light related to evaporative emissions faults
• Fuel vapor control issues from a sticking or leaking purge valve
• Hard starting after refueling
• Rough idle caused by incorrect purge flow
• Emissions test failure tied to EVAP system performance

Installation Notes

Verify connector shape, terminal count, port diameter, and mounting hole location before installation. This valve uses a single oval electrical connector and a 0.24 in. mount hole diameter, so matching the OE layout is important for proper fit. Confirm vehicle application by year and model before ordering: Fits 2009-2015 Cadillac CTS, N/A; Fits 2012-2015 Chevrolet Camaro, N/A; Fits 2009-2013 Chevrolet Corvette, N/A.

Quality Assurance

Dorman manufactures this purge valve as an OE-style replacement for the evaporative emissions system and states that it fulfills government requirements for this application. Part number 994-215 is built for direct-fit service on the listed vehicles.
