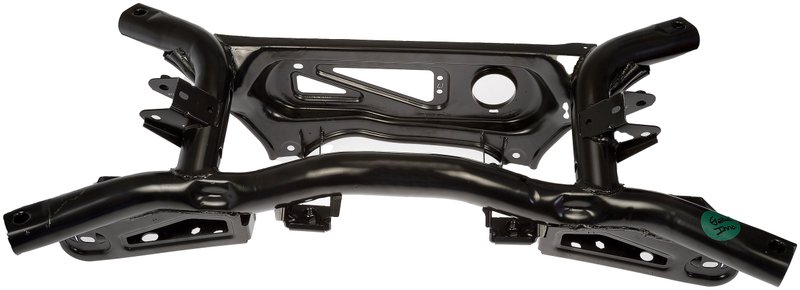

Dorman 999-505 Suspension Subframe - Rear
| Brand | Dorman 999-505 |
|---|---|
| Position | Rear |
| Length | 42 |
| Maximum Width | 19 |
| Design | Bolt in |
| Design | Tornillo |
| Maximum Height | 10 |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Bolt In or Welded In | Bolt in |
| Bolt In or Welded In | Tornillo |
| Engine Mounts Included | No |
| Engine Mounts Included | Non |
| Transmission Mounts Included | No |
| Transmission Mounts Included | Non |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Height | 10 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 4 |
| Frame Material | Acero |
| Frame Material | Steel |
| Spring Type | Aucun |
| Spring Type | Ninguna |
| Spring Type | None |
| Mounting Hole Diameter | 30 |
| Contenidos del paquete | 1 subchasis trasero |
| Package Contents | 1 rear subframe |
| Fits | Dodge and Jeep · 24 vehicles |
OE direct replacement. Matches the fit and function of the original equipment subframe.
Bolt-in design. Installs securely without welding for a straightforward replacement.
Steel construction. Provides a strong mounting point for suspension components.
Cross-references 5105252AA, 5105252AB and 5105252AC for the same application. See all 6.
Dorman 999-505 Rear Suspension Subframe
The Dorman 999-505 rear suspension subframe is built to match the fit and function of the original equipment unit on specified vehicles. It provides a secure mounting point for rear suspension components on Jeep Compass, Jeep Patriot, and Dodge Caliber applications.
- Direct-fit rear suspension subframe for specified vehicles
- Bolt-in design for OE-style mounting
- Steel frame construction
- Measures 42 in. long, 19 in. wide, and 10 in. high
- Four mounting holes for installation alignment
- Standard replacement suspension grade
- Fits rear position only
Fitment Details
- Fits 2007-2017 Jeep Compass, rear
- Fits 2007-2017 Jeep Patriot, rear
- Fits 2007-2008 Dodge Caliber, rear
This Dorman 999-505 rear subframe is used to restore the structural mounting point for rear suspension components when the original subframe is damaged, corroded, or no longer holds alignment correctly. It cross-references Chrysler OE part numbers 5105252AA and 68211932AA for the same application.
What This Part Helps Address
- Rear subframe corrosion or rust-through
- Damaged suspension mounting points
- Rear-end alignment issues caused by structural wear
- Noise or looseness from compromised rear suspension support
- Replacement needs after collision or underbody damage
Installation Notes and Tips
This is a bolt-in rear subframe with no engine mounts, transmission mounts, or mounting hardware included. Verify mounting hole location, dimensions, and rear-position fitment before installation. Professional installation is recommended because the subframe supports suspension geometry and alignment-critical components.
Quality Assurance
Dorman designs this suspension subframe to match original equipment fit and function for the listed Jeep Compass, Jeep Patriot, and Dodge Caliber applications. The steel construction and standard replacement design support a direct OE-style repair.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Jeep | Compass | Rear | — |
| 2017 | Jeep | Patriot | Rear | — |
| 2016 | Jeep | Compass | Rear | — |
| 2016 | Jeep | Patriot | Rear | — |
| 2015 | Jeep | Compass | Rear | — |
| 2015 | Jeep | Patriot | Rear | — |
| 2014 | Jeep | Compass | Rear | — |
| 2014 | Jeep | Patriot | Rear | — |
| 2013 | Jeep | Compass | Rear | — |
| 2013 | Jeep | Patriot | Rear | — |
| 2012 | Jeep | Compass | Rear | — |
| 2012 | Jeep | Patriot | Rear | — |
| 2011 | Jeep | Compass | Rear | — |
| 2011 | Jeep | Patriot | Rear | — |
| 2010 | Jeep | Compass | Rear | — |
| 2010 | Jeep | Patriot | Rear | — |
| 2009 | Jeep | Compass | Rear | — |
| 2009 | Jeep | Patriot | Rear | — |
| 2008 | Dodge | Caliber | Rear | — |
| 2008 | Jeep | Compass | Rear | — |
| 2008 | Jeep | Patriot | Rear | — |
| 2007 | Dodge | Caliber | Rear | — |
| 2007 | Jeep | Compass | Rear | — |
| 2007 | Jeep | Patriot | Rear | — |
