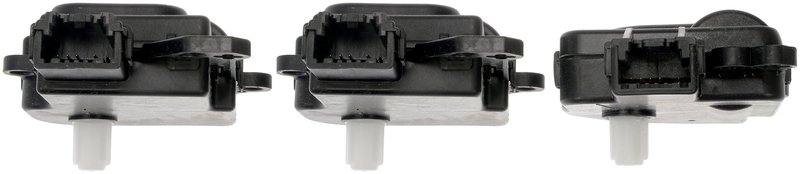

Dorman ADAKIT005 HVAC Air Door Actuator Kit

Dorman ADAKIT005 HVAC Air Door Actuator Kit

Dorman ADAKIT005 is an HVAC air door actuator kit engineered for specified Ford and Mercury vehicles. It helps control airflow between fresh air and recirculation, temperature blend, and vent modes such as floor and defrost.

• HVAC air door actuator kit for mode, blend, and recirculation control
• Engineered for specified vehicles for direct-fit service
• Plastic body construction
• 5-pin connector with male connector and male terminal design
• 4 mounting holes for secure installation
• Terminal type: pin
• Cross-reference part numbers: AA5Z19E616A, AA5Z19E616C

Vehicle Fitment

• Fits 2011-2019 Ford Explorer, N/A, Manual Temperature Control
• Fits 2011-2019 Ford Flex, N/A, w/Automatic Temperature Control (ATC)
• Fits 2008-2019 Ford Taurus, N/A, Manual Temperature Control
• Fits 2008-2009 Mercury Sable, N/A, Manual Temperature Control

How This Actuator Kit Works

This Dorman HVAC actuator kit is used to restore proper movement of the air doors inside the climate control system. When the actuator is operating correctly, the system can direct air to the selected outlet, blend hot and cold air for the requested cabin temperature, and switch between outside air and recirculated air. It is a practical replacement for Ford Explorer, Ford Flex, Ford Taurus, and Mercury Sable HVAC systems that use the listed control configurations.

• Incorrect air direction from dash, floor, or defrost outlets
• Temperature stuck on hot or cold
• Recirculation door not responding
• Clicking or inconsistent HVAC door movement
• Loss of proper climate control response in Ford Explorer, Ford Flex, Ford Taurus, or Mercury Sable

Installation Notes

Verify the vehicle’s temperature control type and connector style before installation. Match the actuator location and mounting pattern to the original unit, and inspect the HVAC door operation after replacement to confirm smooth movement through all modes. For best results, clear any stored HVAC fault codes and recalibrate the system if the vehicle procedure requires it.

Quality Assurance

Dorman designs this actuator kit for specified applications and uses vehicle-focused engineering to match the original HVAC function on the listed Ford and Mercury models. Part number ADAKIT005 is also referenced by AA5Z19E616A, AA5Z19E616C, and ADK104 for the same application.
