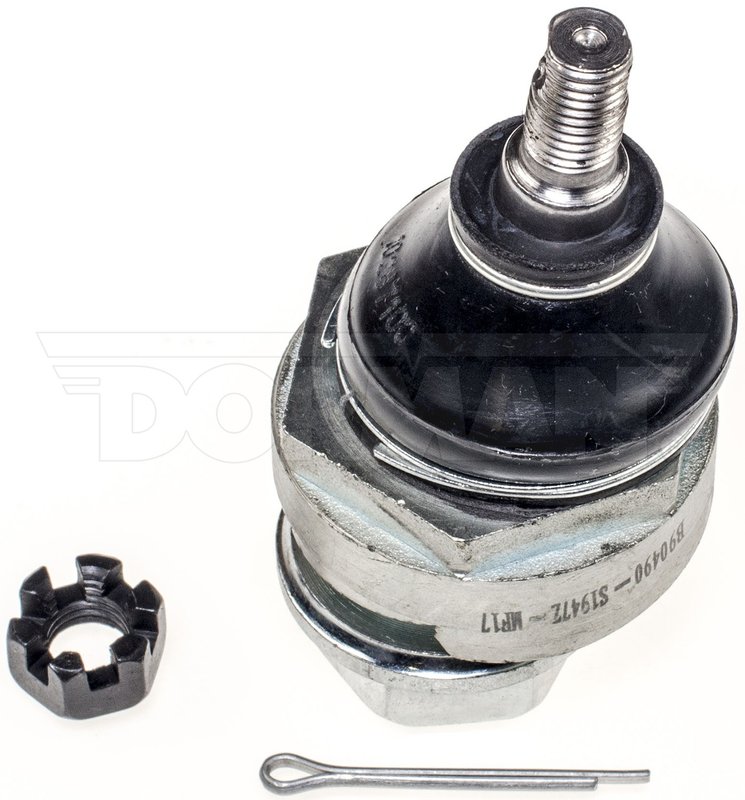

Dorman B90490PR Alignment Caster / Camber Ball Joint - Front Upper
| Brand | Dorman B90490PR |
|---|---|
| Position | Front Upper |
| Material | Acero |
| Material | Steel |
| Maximum Outside Diameter | 33 |
| Adjustment Range | 1 |
| Adjustment Range | 1 grados |
| Castle Nut Included | Oui |
| Castle Nut Included | Sí |
| Castle Nut Included | Yes |
| Suspension Grade Type | Reemplazo estándar |
| Suspension Grade Type | Standard |
| Dust Boot Included | Oui |
| Dust Boot Included | Sí |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Oui |
| Ball Joint Assembly | Sí |
| Ball Joint Assembly | Yes |
| Cotter Pin Hole | Oui |
| Cotter Pin Hole | Sí |
| Cotter Pin Hole | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 1 |
| Mounting Hole Quantity | 1 ensamble de manguera del calentador |
| Adjustable | No |
| Adjustable | Non |
| Greaseable | No |
| Greaseable | Non |
| Stud Type | Roscado |
| Stud Type | Threaded |
| Mounting Type | Bolt on |
| Fits | Acura, Honda, and Isuzu · 36 vehicles |
Standard replacement. Precision-engineered for a reliable OE-style replacement.
Bolt-on installation. No modifications needed for a straightforward install.
Steel construction. Built with a dust boot and threaded stud for dependable service.
Cross-references Beck/Arnley 101-5546, Delphi TC5837 and Mevotech Original Grade GK90490 for the same application. See all 12.
Dorman B90490PR Alignment Ball Joint
Dorman B90490PR is an alignment caster and camber ball joint for select Honda, Acura, and Isuzu front upper suspension applications. It is precision-engineered and tested as a direct replacement for the original equipment part on specific vehicles, including Honda Accord, Prelude, Odyssey, Acura TL, Acura CL, and Isuzu Oasis.
Key Features
- Front upper alignment caster/camber ball joint for suspension correction
- Adjusts caster and camber from -1.00 degree to +1.00 degree
- Steel construction for standard replacement service
- Threaded stud design with 10 mm stud thread diameter and 1.25 thread pitch
- Bolt-on mounting type with cotter pin hole, castle nut, and locking nut included
- Dust boot included to help protect the joint assembly
- Non-greaseable, non-adjustable design
Detailed Description
This Dorman alignment caster and camber ball joint, part number B90490PR, is built for front upper suspension use where precise alignment correction is needed. It is a standard replacement component made from steel and engineered to match OE fit and function on the listed applications. For drivers servicing a Honda Accord front upper suspension, or replacing a worn joint on a Honda Prelude, Acura TL, Acura CL, Honda Odyssey, or Isuzu Oasis, B90490PR provides the caster and camber adjustment range required for alignment work.
This part cross-references MOOG Chassis Products K90490 and Mevotech Supreme MK90490 for the same application.
What It Helps Fix
- Front-end alignment issues after suspension wear or component replacement
- Improper caster or camber settings on the front upper suspension
- Uneven tire wear caused by alignment angles outside specification
- Steering pull related to incorrect front suspension geometry
- Loose or worn upper ball joint service points on supported vehicles
Installation Notes and Tips
Install B90490PR on the front upper position only for the listed vehicles. Verify alignment settings after installation, since the joint provides a -1.00 degree to +1.00 degree adjustment range. Confirm stud thread size, mounting style, and hardware fitment before assembly. Professional alignment service is recommended after suspension work to set caster and camber to specification.
Quality Assurance
Dorman tests this replacement ball joint for reliable service on the specified applications. The part is engineered as a standard replacement for OE-style fitment on compatible Honda, Acura, and Isuzu models, including Honda Accord, Prelude, and Odyssey applications covered by the fitment data.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2001 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 2000 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1999 | Acura | CL | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1999 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1999 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Acura | CL | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1998 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Acura | CL | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Honda | Prelude | Type SH | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1997 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1996 | Isuzu | Oasis | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Acura | TL | — | 2.5L | L5 | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Honda | Odyssey | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1995 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1994 | Acura | Vigor | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1994 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1994 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1993 | Acura | Vigor | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1993 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1993 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1992 | Acura | Vigor | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1992 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1992 | Honda | Prelude | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1991 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
| 1990 | Honda | Accord | — | — | — | Front Upper | Adjusts Caster/Camber -1.00 Degree to +1.00 Degree |
