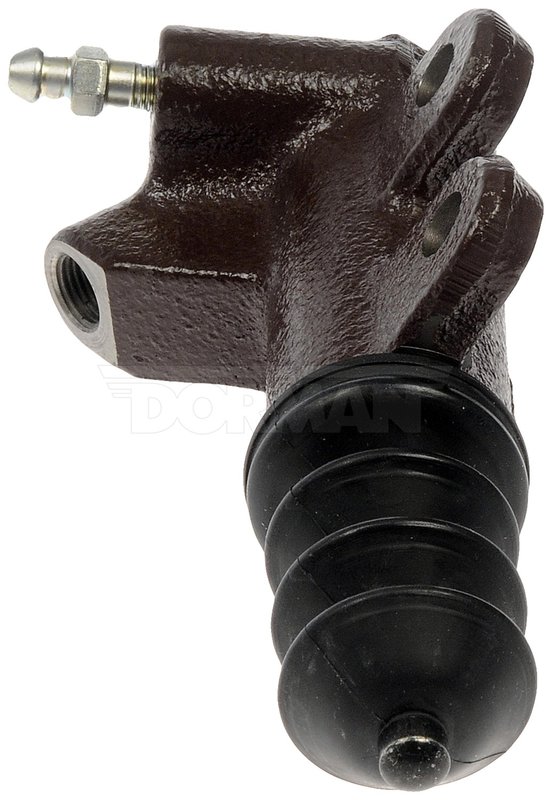

Dorman CS650205 Clutch Slave Cylinder

Reliable Clutch Slave Cylinder for Toyota Corolla and Pontiac Vibe

The Dorman CS650205 clutch slave cylinder is designed to provide consistent hydraulic pressure for smooth clutch operation. Engineered for manual transmission systems in select Toyota and Pontiac models, this cast iron component ensures durability and reliable performance.

• Constructed from durable cast iron material
• Standard replacement grade for reliable function
• External cylinder type with 2 mounting holes for secure installation
• 0.75 inch bore diameter and 10 mm inlet diameter for precise hydraulic control
• Compatible with Toyota Corolla, Matrix, and Pontiac Vibe models
• Includes one clutch slave cylinder per package
• Gray finish for corrosion resistance and longevity

Detailed Product Description

The Dorman CS650205 clutch slave cylinder is a standard replacement part designed specifically for manual transmission systems in Toyota Corolla, Toyota Matrix, and Pontiac Vibe vehicles. Made from cast iron, this external cylinder type component features a 0.75 inch bore diameter and a 10 mm inlet diameter with an M10 x 1.0 thread size, ensuring proper hydraulic fluid flow and pressure. The gray finish adds a layer of corrosion resistance, extending the service life of the part. With two mounting holes and a 2.48 inch slave cylinder rod length, this clutch slave cylinder offers a secure fit and reliable operation without the need for a threaded rod or studs.

Common Applications and Issues Addressed

• Restores proper clutch disengagement and engagement
• Eliminates clutch pedal sponginess or softness
• Prevents hydraulic fluid leaks in the clutch system
• Resolves difficulty shifting gears due to clutch hydraulic failure
• Replaces worn or damaged clutch slave cylinders in manual transmissions

Installation Notes and Tips

When installing the Dorman CS650205 clutch slave cylinder, ensure the hydraulic system is properly bled to remove air pockets for optimal clutch performance. Verify the two mounting holes align correctly with the transmission housing on Toyota Corolla, Matrix, or Pontiac Vibe models. Use compatible hydraulic fluid as specified by the vehicle manufacturer. Avoid overtightening the inlet fitting to prevent thread damage. Inspect the clutch hydraulic line for wear or damage during installation and replace if necessary.

Quality Assurance and Warranty

Dorman manufactures the CS650205 clutch slave cylinder to meet or exceed OEM specifications for fit, form, and function. This standard replacement part undergoes rigorous quality control to ensure durability and reliable operation in manual transmission systems. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Refer to the product documentation for exact warranty terms.
