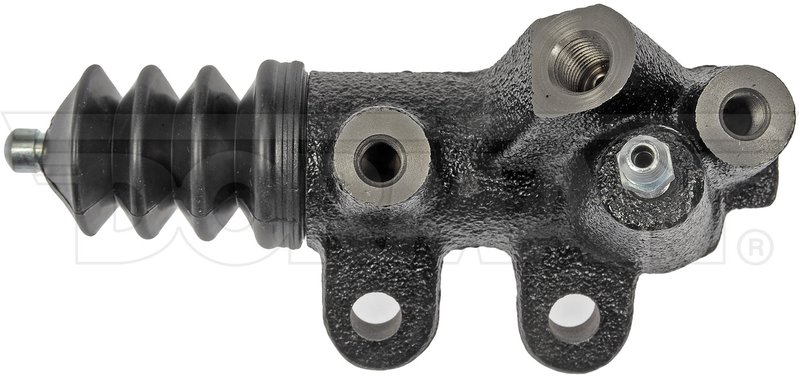

Dorman CS650209 Clutch Slave Cylinder
| Brand | Dorman CS650209 |
|---|---|
| Material | Cast iron |
| Grade Type | Regular |
| Mounting Hole Quantity | 2 |
| Inlet Diameter | 10 |
| Bore Diameter | 0.875 |
| Color/Finish | Black |
| Cylinder Type | External |
| Describe Type | External |
| Inlet Thread Size | M10 x 1.0 |
| Item Grade | Standard replacement |
| Package Contents | 1 clutch slave cylinder |
| Slave Cylinder Rod Length (In) | 63 mm |
| Stud Quantity | 0 |
| Threaded Rod | No |
| Fits | Scion and Toyota · 14 vehicles |
Direct replacement. Precision-engineered to match the original equipment design.
Cast iron construction. Built for dependable clutch hydraulic performance.
External cylinder design. Standard replacement for manual transmission service.
Cross-references 3147042040 and SC142929 for the same application. See all 2.
Dorman CS650209 Clutch Slave Cylinder
The Dorman CS650209 clutch slave cylinder is a standard replacement for manual transmission systems that need a direct-fit hydraulic component. Built with a cast iron body and external cylinder design, it is engineered to match original equipment dimensions for specific Scion and Toyota applications.
For drivers searching for a clutch slave cylinder for 2008-2014 Scion xB, 2009-2013 Toyota Matrix, or 2009-2010 Toyota Corolla, this part number CS650209 provides a direct replacement option with OE-style fitment.
Key Features
- Direct replacement clutch slave cylinder for manual transmission service
- Cast iron construction with black finish
- External cylinder type
- 0.875 in bore diameter
- M10 x 1.0 inlet thread size and 10 mm inlet diameter
- 2 mounting holes for OE-style installation
- Slave cylinder rod length: 63 mm
- Standard replacement grade
Detailed Description
Dorman CS650209 is a clutch slave cylinder built to match the original equipment design for select Scion and Toyota vehicles. It is intended for hydraulic clutch systems that require an external slave cylinder with the correct bore size, inlet thread, and mounting layout. This part number CS650209 is a practical replacement when the original cylinder is leaking, sticking, or no longer maintaining proper clutch hydraulic pressure.
Compatible With: 2008-2014 Scion xB, 2009-2013 Toyota Matrix, and 2009-2010 Toyota Corolla. This part cross-references 3147042040 and SC142929 for the same application.
Common Problems This Part Can Address
- Clutch fluid leakage at the slave cylinder
- Difficulty disengaging the clutch
- Soft or inconsistent clutch pedal feel
- Hydraulic pressure loss in the clutch system
- Wear-related failure of the original external slave cylinder
Installation Notes and Tips
Verify the bore diameter, inlet thread size, mounting hole count, and rod length before installation. Bleed the hydraulic system after replacement to remove trapped air and restore proper pedal operation. Confirm the vehicle uses an external clutch slave cylinder and match the application by year, make, and model before ordering.
Quality Assurance
Dorman manufactures this clutch slave cylinder as a standard replacement part engineered to follow original equipment design requirements for the listed applications. The CS650209 is built for direct-fit service on select Scion and Toyota manual transmission vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Scion | xB | — | — | N/A | — |
| 2013 | Scion | xB | — | — | N/A | — |
| 2013 | Toyota | Matrix | 2.4L | L4 | N/A | — |
| 2012 | Scion | xB | — | — | N/A | — |
| 2012 | Toyota | Matrix | 2.4L | L4 | N/A | — |
| 2011 | Scion | xB | — | — | N/A | — |
| 2011 | Toyota | Matrix | 2.4L | L4 | N/A | — |
| 2010 | Scion | xB | — | — | N/A | — |
| 2010 | Toyota | Corolla | 2.4L | L4 | N/A | — |
| 2010 | Toyota | Matrix | 2.4L | L4 | N/A | — |
| 2009 | Scion | xB | — | — | N/A | — |
| 2009 | Toyota | Corolla | 2.4L | L4 | N/A | — |
| 2009 | Toyota | Matrix | 2.4L | L4 | N/A | — |
| 2008 | Scion | xB | — | — | N/A | — |
| No rows match your filter. | ||||||
