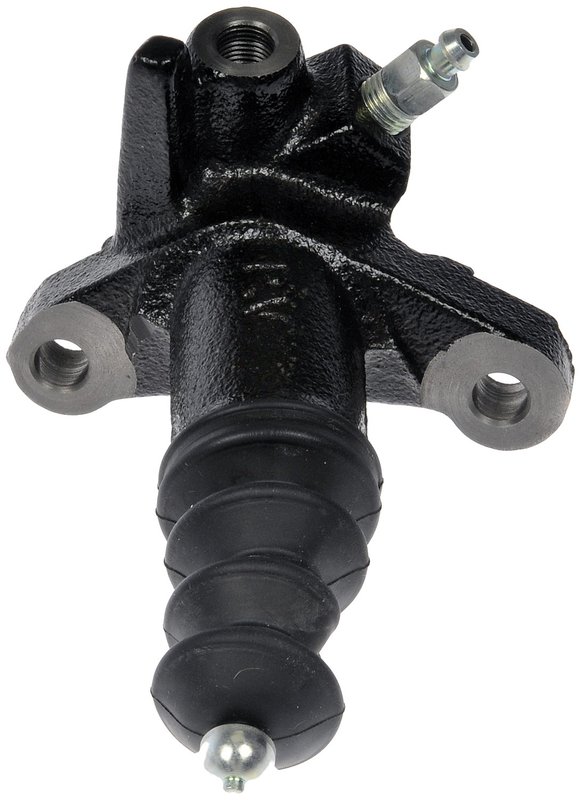

Dorman CS659004 Clutch Slave Cylinder

Reliable Clutch Slave Cylinder for Chevrolet Aveo and Aveo5

The Dorman CS659004 clutch slave cylinder is designed to provide consistent hydraulic pressure for smooth clutch operation in Chevrolet Aveo and Aveo5 manual transmissions. Crafted from durable cast iron, this external piston-type slave cylinder ensures reliable performance and longevity.

• Constructed from cast iron for strength and durability
• Standard replacement grade for dependable function
• Features 2 mounting holes for secure installation
• 10 mm inlet diameter with M10 x 1.0 inlet thread size
• 0.8125 inch bore diameter for precise hydraulic control
• Black finish for corrosion resistance
• External piston cylinder type with a 2.27 inch rod length
• Stud end thread diameter of 9 mm and rod thread size M10 x 1.0

Detailed Product Description

The Dorman CS659004 clutch slave cylinder is engineered specifically for manual transmission systems in Chevrolet Aveo and Aveo5 models. Its cast iron construction offers enhanced durability under high-pressure conditions typical of clutch hydraulics. The external piston design allows for efficient transfer of hydraulic force, ensuring smooth clutch engagement and disengagement. With a bore diameter of 0.8125 inches and a 10 mm inlet diameter, this slave cylinder maintains consistent fluid flow and pressure. The black finish provides additional protection against corrosion, extending the service life of the component.

Common Applications and Problem Resolution

• Restores proper clutch pedal feel and engagement in Chevrolet Aveo and Aveo5
• Eliminates clutch slippage caused by hydraulic leaks or failure
• Resolves issues with clutch pedal sticking or inconsistent pressure
• Prevents clutch disengagement problems due to worn or damaged slave cylinders
• Addresses hydraulic fluid leaks around the slave cylinder area

Installation Notes and Tips

When installing the Dorman CS659004 clutch slave cylinder, ensure the hydraulic system is properly bled to remove air pockets for optimal clutch performance. Verify that the mounting holes align correctly with the transmission housing using the two provided mounting points. Use compatible hydraulic fluid as specified by the vehicle manufacturer. Inspect the clutch hydraulic line fittings, including the M10 x 1.0 inlet thread, for secure connections to prevent leaks.

Quality Assurance and Warranty

Dorman manufactures the CS659004 clutch slave cylinder to meet standard replacement grade specifications, ensuring reliable operation in Chevrolet Aveo and Aveo5 manual transmissions. The cast iron material and precise machining contribute to consistent performance and durability. While specific warranty details are not provided, Dorman parts typically adhere to industry quality standards for replacement components.
