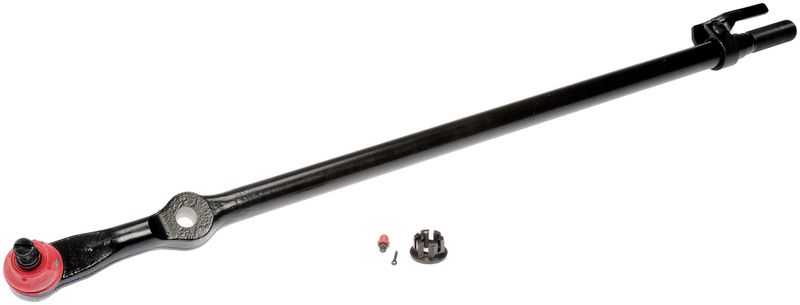

Dorman DL85069RD Steering Drag Link - At Pitman Arm or Inner
| Brand | Dorman DL85069RD |
|---|---|
| Position | At Pitman Arm and Inner |
| Material | Acero |
| Material | Steel |
| Maximum Diameter | 29 |
| Length | 890.8 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| Finish | Con recubrimiento electrostático |
| Finish | E-coated |
| Centerline Length | 890.8 |
| Mount Stud Quantity | 1 |
| Mount Stud Quantity | 1 ensamble de manguera del calentador |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard replacement |
| Mounting Hole Quantity | 1 |
| Mounting Hole Quantity | 1 ensamble de manguera del calentador |
| Mounting Hole Diameter | 15 |
| Contenidos del paquete | 1 barra de acoplación de la dirección |
| Contenidos del paquete | 1 grasera |
| Contenidos del paquete | 1 pasador (chaveta) |
| Contenidos del paquete | 1 rótula |
| Contenidos del paquete | 1 tuerca de seguridad (tipo castillo) |
| Diámetro de la rosca de la argolla | 16mm |
| End 1 Attachment Size | 1/16 in |
| End 1 Attachment Type | Roscado |
| End 1 Attachment Type | Threaded |
| End 2 Attachment Size | 16 mm |
| Product line | RD - Rugged Duty |
| Fits | Ford · 17 vehicles |
Severe-duty design. Built for demanding service and hard-working conditions.
Steel construction. Quenched and tempered for added durability and corrosion resistance.
Standard replacement. Direct-fit drag link assembly with mounting hardware included.
Cross-references Delphi TA5749, Mevotech TTX TXMS40451 and MOOG Chassis Products DS80749 for the same application. See all 9.
Dorman RD Steering Drag Link DL85069RD
Dorman RD DL85069RD is a steering drag link assembly built for severe-duty service on specified Ford Super Duty applications. It is engineered for vehicles that see towing, hauling, off-road work, and other demanding conditions, with corrosion-resistant construction and service-focused hardware details.
RD Rugged Duty Construction
The RD line from Dorman is designed for hardworking chassis applications where steering reliability matters. This drag link uses quenched and tempered steel bearing housings with an E-coated finish for added corrosion resistance. The joint is pre-loaded with premium grease where applicable, and the grease boot design helps retain lubrication during service.
- Quenched and tempered steel bearing housings
- E-coated finish for corrosion resistance
- Pre-loaded joint with premium grease where applicable
- Grease boot design with molded-in standoffs where applicable
- Standard replacement grade for specified steering applications
- Includes corrosion-resistant mounting hardware and service components as listed
Fitment and Application Details
Compatible With 2005-2010 Ford F-250 Super Duty, at pitman arm; 2008-2010 Ford F-350 Super Duty, at pitman arm with 891 mm stud-to-end length; 2005-2009 Ford F-250, inner; and 2005-2007 Ford F-350 Super Duty, at pitman arm. This part number, DL85069RD, is also a direct search match for buyers comparing steering drag link replacement options for Ford F-250 Super Duty and Ford F-350 Super Duty trucks.
For shoppers cross-referencing OE-style alternatives, this part cross-references MOOG Chassis Products (e.g., DS80749, DS300037) for the same application.
Common Problems This Part Can Address
- Excessive steering play from a worn drag link joint
- Clunking or looseness in the steering linkage
- Corrosion-related wear on exposed steering components
- Steering instability during towing or heavy hauling
- Service failures on high-demand Ford Super Duty steering systems
Installation Notes
Verify the vehicle position and stud-to-end length before installation, especially on 2008-2010 Ford F-350 Super Duty applications. Inspect related steering linkage components, pitman arm interfaces, and mounting points for wear before final assembly. Use the included grease fitting during service intervals to maintain lubrication.
Quality Assurance
Dorman RD chassis parts are built for severe-duty use with corrosion-resistant materials and protective coatings. DL85069RD is manufactured as a standard replacement steering drag link for specified Ford applications and is intended for vehicles that require dependable steering performance under demanding conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2010 | Ford | F-350 Super Duty | 4WD | At Pitman Arm | w/891 mm Stud To End Length; RD - Rugged Duty |
| 2009 | Ford | F-250 | 4WD | Inner | RD - Rugged Duty |
| 2009 | Ford | F-250 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2009 | Ford | F-350 Super Duty | 4WD | At Pitman Arm | w/891 mm Stud To End Length; RD - Rugged Duty |
| 2008 | Ford | F-250 | 4WD | Inner | RD - Rugged Duty |
| 2008 | Ford | F-250 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2008 | Ford | F-350 Super Duty | 4WD | At Pitman Arm | w/891 mm Stud To End Length; RD - Rugged Duty |
| 2007 | Ford | F-250 | 4WD | Inner | RD - Rugged Duty |
| 2007 | Ford | F-250 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2007 | Ford | F-350 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2006 | Ford | F-250 | 4WD | Inner | RD - Rugged Duty |
| 2006 | Ford | F-250 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2006 | Ford | F-350 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2005 | Ford | F-250 | 4WD | Inner | RD - Rugged Duty |
| 2005 | Ford | F-250 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
| 2005 | Ford | F-350 Super Duty | 4WD | At Pitman Arm | RD - Rugged Duty |
