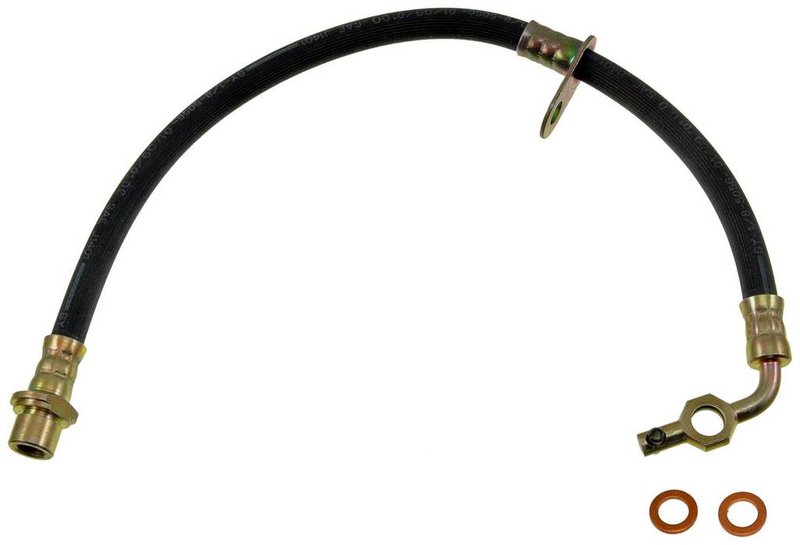

Dorman H381296 Brake Hydraulic Hose - Front Left
| Brand | Dorman H381296 |
|---|---|
| Position | Front Left |
| Axis 1 Length | 15.66 |
| Bracket Included | Yes |
| Bracket Material | Stamped Steel |
| Color | Black |
| Describe Type | Flexible Hose |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Diameter | 10 mm |
| End 2 Fitting Inside Diameter | M10 X 1.0 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| Gasket Or Seal Included | Yes |
| Hose Material | EPDM Rubber |
| Jacket Included | No |
| Mounting Hardware Included | No |
| Outer Sleeve Material | Rubber |
| Overall Length | 16.44 |
| Package Contents | 1 Brake Hose; Gaskets |
| Fits | Lexus and Toyota · 20 vehicles |
OE direct replacement. Precision-engineered to match original brake hose fit and function.
Flexible hose design. EPDM rubber construction helps deliver dependable braking performance.
Bracket included. Stamped steel bracket and gaskets are included for a complete repair.
Cross-references Centric Parts 150.44111, Raybestos Brakes BH381296 and Sunsong 2204080 for the same application. See all 9.
Dorman H381296 Brake Hydraulic Hose
Dorman H381296 is a front left brake hydraulic hose engineered for specific Lexus LX470 and Toyota Land Cruiser applications. It is built to match original hose fit, function, and braking performance for a direct replacement during brake service.
Key Features
- Compatible with 1998-2007 Lexus LX470, front left
- Compatible with 1998-2007 Toyota Land Cruiser, front left
- Flexible brake hose with EPDM rubber hose material and black outer sleeve
- Banjo end 1 fitting and female end 2 fitting with treated steel ends
- Stamped steel bracket, gasket or seal included, and no mounting hardware included
- Overall length: 16.44 in.; axis 1 length: 15.66 in.
Detailed Description
This Dorman brake hydraulic hose is built for the front left position on 1998-2007 Lexus LX470 and 1998-2007 Toyota Land Cruiser models. The hose uses EPDM rubber construction with treated steel fittings to support secure brake-fluid transfer and consistent pedal response in a complete brake repair. Part number H381296 is shaped for the specified application and includes the bracket and gaskets needed for the hose assembly.
This part cross-references Raybestos Brakes BH381296 and Centric Parts 150.44111 for the same application. If you are replacing a worn front left brake hose on a Lexus LX470 or Toyota Land Cruiser, H381296 provides an OE-style replacement path with the correct fitting style and dimensions.
Common Problems This Part Can Address
- Cracked or weathered brake hose rubber
- Brake fluid seepage at the hose ends or seals
- Restricted brake fluid flow from an aging flexible hose
- Soft or inconsistent brake pedal feel caused by hose deterioration
- Corrosion or damage at the hose bracket or fittings
Installation Notes and Tips
Verify the vehicle year, make, model, and front left position before installation. Inspect the mating brake line, caliper connection, and sealing surfaces for wear or corrosion, and replace damaged gaskets or seals as needed. After installation, bleed the brake system according to the vehicle service procedure and check carefully for leaks.
Quality Assurance
Dorman engineers this brake hose to match the fit, function, and performance of the original hose on the listed vehicles and positions. Part number H381296 is intended as a direct replacement for the specified Lexus LX470 and Toyota Land Cruiser applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Lexus | LX470 | Front Left | — |
| 2007 | Toyota | Land Cruiser | Front Left | — |
| 2006 | Lexus | LX470 | Front Left | — |
| 2006 | Toyota | Land Cruiser | Front Left | — |
| 2005 | Lexus | LX470 | Front Left | — |
| 2005 | Toyota | Land Cruiser | Front Left | — |
| 2004 | Lexus | LX470 | Front Left | — |
| 2004 | Toyota | Land Cruiser | Front Left | — |
| 2003 | Lexus | LX470 | Front Left | — |
| 2003 | Toyota | Land Cruiser | Front Left | — |
| 2002 | Lexus | LX470 | Front Left | — |
| 2002 | Toyota | Land Cruiser | Front Left | — |
| 2001 | Lexus | LX470 | Front Left | — |
| 2001 | Toyota | Land Cruiser | Front Left | — |
| 2000 | Lexus | LX470 | Front Left | — |
| 2000 | Toyota | Land Cruiser | Front Left | — |
| 1999 | Lexus | LX470 | Front Left | — |
| 1999 | Toyota | Land Cruiser | Front Left | — |
| 1998 | Lexus | LX470 | Front Left | — |
| 1998 | Toyota | Land Cruiser | Front Left | — |
