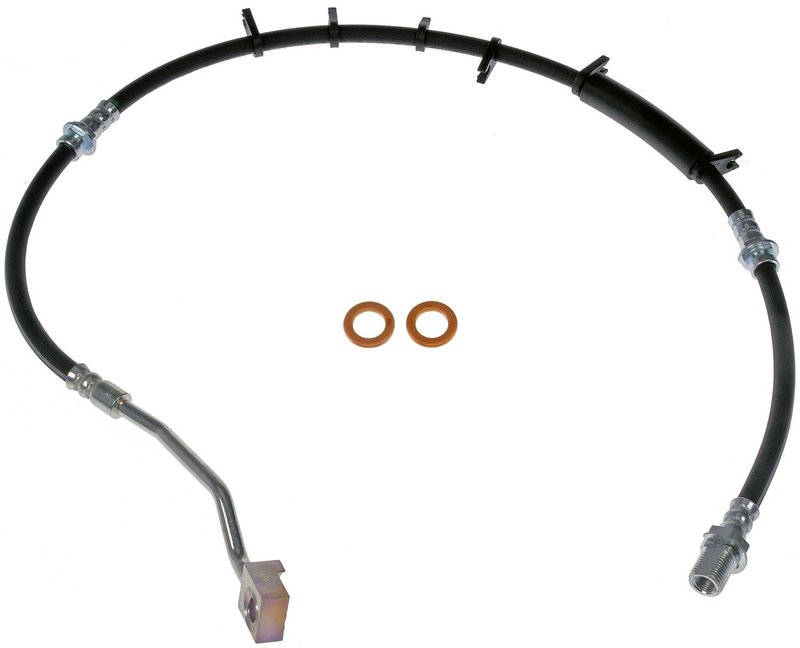

Dorman H622134 Brake Hydraulic Hose - Front Right
| Brand | Dorman H622134 |
|---|---|
| Position | Front Right |
| Color | Black |
| Outer Sleeve Material | Rubber |
| Mounting Hardware Included | No |
| Bracket Included | No |
| Gasket Or Seal Included | Yes |
| Axis 1 Length | 35.55 |
| End 1 Fitting Material | Treated steel |
| End 1 Fitting Type | Banjo |
| End 2 Fitting Material | Treated steel |
| Overall Length | 40.8 |
| Jacket Included | Yes |
| Describe Type | Flexible hose |
| End 1 Thread Diameter | 10 mm |
| End 2 Fitting Inside Diameter | 5/8 in-18 ext; 3/8 in-24 int |
| End 2 Fitting Type | Male; female |
| Hose Material | Epdm rubber |
| Package Contents | 1 brake hose; gaskets |
| Fits | Chevrolet and GMC · 6 vehicles |
OE-style fit. Precision-engineered to match original hose fit, function, and performance.
Flexible hose. EPDM rubber construction with a protective jacket for durable braking.
Complete seal set. Includes gaskets for a proper brake repair.
Cross-references Raybestos Brakes BH383393, 150.66147 and 2205267 for the same application. See all 5.
Dorman H622134 Front Right Brake Hose
This Dorman brake hydraulic hose is engineered for specific vehicle positions to match original fit, function, and performance. Built for the front right corner, it serves as a direct replacement for select Chevrolet P30 and GMC P3500 applications.
- Brake hydraulic hose for the front right position
- Black EPDM rubber hose with a flexible design
- Treated steel banjo fitting at end 1 with 10 mm thread diameter
- Treated steel male/female fitting at end 2 with 5/8 in-18 external and 3/8 in-24 internal threads
- Jacket included for added hose protection
- Gaskets included; mounting hardware and bracket not included
- Overall length: 40.8 in; axis 1 length: 35.55 in
Detailed Product Overview
Dorman H622134 is a brake hydraulic hose built to replace the original hose on select 1997-1999 Chevrolet P30 and 1997-1999 GMC P3500 conventional forward control chassis models with RPO code FK5 and a 5,000 lb. capacity I beam front axle. The hose uses EPDM rubber construction with treated steel end fittings to support dependable brake fluid transfer at the front right wheel end of the system. This part cross-references Raybestos Brakes BH383393 for the same application.
Vehicle Fitment
- Fits 1997-1999 Chevrolet P30, front right, Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle)
- Fits 1997-1999 GMC P3500, front right, Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle)
What This Brake Hose Helps Address
- Brake fluid leakage at a worn or damaged front right hose
- Cracking, swelling, or hardening in an aging rubber brake line
- Restricted brake fluid flow caused by internal hose deterioration
- Soft or inconsistent brake pedal feel related to hose condition
- Corrosion or wear at the original hose fittings
Installation Notes and Tips
Verify the front right position, chassis configuration, and RPO FK5 before installation. Transfer or replace sealing gaskets as needed, and inspect adjacent brake components, hard lines, and mounting points for wear or corrosion during service. Bleed the brake system after installation to remove air and restore proper hydraulic operation.
Quality Assurance
Dorman manufactures this brake hydraulic hose to match the fit, function, and performance of the original hose on the listed vehicles and positions. The design uses application-specific dimensions and fittings to support a proper brake repair on Chevrolet P30 and GMC P3500 models.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Chevrolet | P30 | Stripped Chassis | Front Right | Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle) |
| 1999 | GMC | P3500 | Stripped Chassis | Front Right | Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle) |
| 1998 | Chevrolet | P30 | Stripped Chassis | Front Right | Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle) |
| 1998 | GMC | P3500 | Stripped Chassis | Front Right | Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle) |
| 1997 | Chevrolet | P30 | Stripped Chassis | Front Right | Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle) |
| 1997 | GMC | P3500 | Stripped Chassis | Front Right | Conventional Forward Control Chassis; w/RPO Code FK5 (5,000 Lb. Capacity I Beam Front Axle) |
