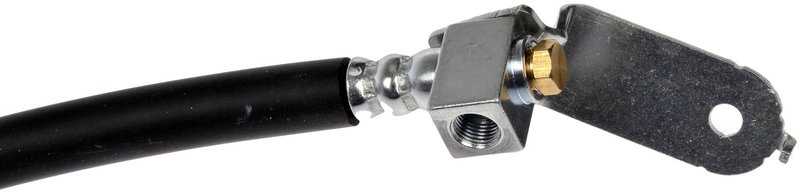

Dorman H622394 Brake Hydraulic Hose - Rear Left
Reliable Brake Hydraulic Hose for Chrysler and Dodge Vehicles
The Dorman H622394 brake hydraulic hose is designed to provide dependable brake fluid transfer for Chrysler 300, Dodge Challenger, and Dodge Charger models. Engineered with durable materials and precise fittings, this flexible brake hose ensures consistent braking performance under various driving conditions.
Key Features of the Dorman H622394 Brake Hose
- Constructed with EPDM rubber hose material for flexibility and resistance to heat and wear
- Black outer sleeve made of rubber for added protection
- Includes stamped steel bracket and gasket for secure mounting and sealing
- End 1 features a treated steel banjo fitting with a 10 mm thread diameter and pinch bolt attachment
- End 2 has a treated steel female fitting with a flared attachment and 3/8 in-24; m10 x 1.0 inside diameter
- Overall length of 13.9 inches with an axis length of 11.37 inches
- Jacket included to enhance durability and protect against environmental factors
Detailed Product Description
The Dorman H622394 brake hydraulic hose is a flexible hose designed to maintain optimal brake fluid flow in Chrysler 300, Dodge Challenger, and Dodge Charger vehicles. Its EPDM rubber construction offers excellent resistance to heat, ozone, and brake fluid, ensuring long-lasting performance. The black rubber outer sleeve provides additional protection against abrasion and environmental damage. The hose comes equipped with a stamped steel bracket and gasket to facilitate proper installation and secure fitment. Both ends feature treated steel fittings: a banjo fitting with a pinch bolt attachment on one end and a female fitting with a flared attachment on the other, ensuring compatibility with the vehicle's brake system. The included jacket further protects the hose from wear and external elements.
Common Applications and Issues Addressed
- Replacement of worn or cracked brake hydraulic hoses in Chrysler 300, Dodge Challenger, and Dodge Charger
- Resolving brake fluid leaks caused by damaged or deteriorated hoses
- Restoring proper brake fluid pressure and flow for consistent braking performance
- Addressing hose swelling or bulging due to heat exposure or aging
- Ensuring secure mounting with included stamped steel bracket and gasket
Installation Notes and Tips
When installing the Dorman H622394 brake hydraulic hose, ensure the vehicle is safely lifted and supported. Carefully remove the old hose, noting the orientation of fittings and bracket placement. Use the included stamped steel bracket and gasket to secure the new hose properly. Tighten the pinch bolt and flared fittings to manufacturer torque specifications to prevent leaks. After installation, bleed the brake system thoroughly to remove any air and verify proper brake function before driving.
Quality Assurance and Warranty
Dorman manufactures the H622394 brake hydraulic hose to meet or exceed OEM standards for fit, form, and function. The use of treated steel fittings and durable EPDM rubber materials ensures reliable performance and longevity. This part is backed by Dorman's quality assurance processes, providing confidence in its durability and compatibility with Chrysler 300, Dodge Challenger, and Dodge Charger brake systems.
| Brand | Dorman |
| Part Number | H622394 |
| Color | Black |
| Outer Sleeve Material | Rubber |
| Mounting Hardware Included | No |
| Bracket Included | Yes |
| Gasket Or Seal Included | Yes |
| Axis 1 Length | 11.37 |
| Bracket Material | Stamped steel |
| End 1 Fitting Material | Treated steel |
| End 1 Fitting Type | Banjo |
| End 2 Fitting Material | Treated steel |
| End 2 Fitting Type | Female |
| Overall Length | 13.9 |
| Jacket Included | Yes |
| Describe Type | Flexible hose |
| End 1 Attachment Type | Pinch bolt |
| End 1 Thread Diameter | 10 mm |
| End 2 Attachment Type | Flared |
| End 2 Fitting Inside Diameter | 3/8 in-24; m10 x 1.0 |
| Hose Material | Epdm rubber |
| Package Contents | 1 brake hose; gaskets |
This part fits 19 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2020 | Chrysler | 300 | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes); w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2020 | Dodge | Challenger | RWD | Rear Left | w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2020 | Dodge | Challenger | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes) |
| 2019 | Chrysler | 300 | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes); w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2019 | Dodge | Challenger | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes) | |
| 2019 | Dodge | Challenger | RWD | Rear Left | w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2018 | Chrysler | 300 | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes); w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2018 | Dodge | Challenger | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) | |
| 2018 | Dodge | Charger | RWD | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) |
| 2017 | Chrysler | 300 | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes); w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2017 | Dodge | Challenger | RWD | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) |
| 2017 | Dodge | Charger | RWD | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) |
| 2016 | Chrysler | 300 | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes); w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2016 | Dodge | Challenger | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) | |
| 2016 | Dodge | Charger | RWD | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) |
| 2015 | Chrysler | 300 | RWD | Rear Left | w/Sales Code BR3 (ABS, 4 Wheel Disc Brakes); w/Sales Code BR5 (Performance Brakes, ABS, 4 Wheel Disc Brakes) |
| 2015 | Dodge | Challenger | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) | |
| 2014 | Chrysler | 300 | RWD | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) |
| 2014 | Dodge | Charger | RWD | Rear Left | Fits vehicles with Sales Codes BR3, BR5, and BR6 (ABS, 4 Wheel Disc Brakes) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
