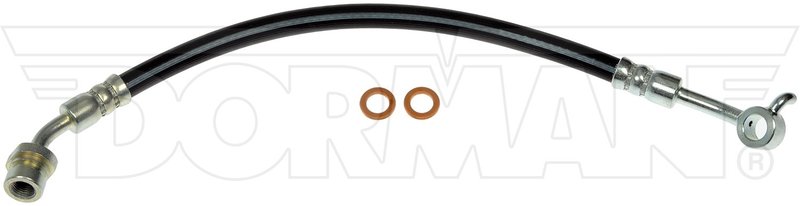

Dorman H622654 Brake Hydraulic Hose - Rear Left
Reliable Brake Hydraulic Hose for Hyundai Azera
The Dorman H622654 brake hydraulic hose is designed specifically for Hyundai Azera models, providing a durable and flexible connection within the brake system. Engineered with treated steel fittings and EPDM rubber hose material, this brake hose ensures consistent performance and safety.
- Compatible with Hyundai Azera brake systems
- Flexible EPDM rubber hose for durability and resistance
- Black color with treated steel banjo and female fittings
- Includes gaskets for secure sealing
- Overall length of 13.5 inches with 10.83-inch axis length
- End 1 fitting: banjo type with 10 mm pinch bolt attachment
- End 2 fitting: female flared fitting with M10 x 1.0 thread diameter
Detailed Product Description
The Dorman H622654 brake hydraulic hose is a flexible hose designed to maintain hydraulic pressure within the braking system of Hyundai Azera vehicles. Constructed from EPDM rubber, the hose offers resistance to heat, abrasion, and brake fluid, ensuring long-lasting service. Both ends feature treated steel fittings: a banjo fitting on one end secured by a 10 mm pinch bolt, and a female flared fitting on the other with an M10 x 1.0 thread diameter. The hose measures 13.5 inches overall, with an axis length of 10.83 inches, making it a precise fit for the specified vehicle application. The included gaskets help provide a leak-free connection during installation.
Common Applications and Issues Addressed
- Replacement of worn or cracked brake hydraulic hoses on Hyundai Azera
- Resolving brake fluid leaks caused by damaged fittings or hose material
- Restoring proper brake pressure and pedal feel
- Preventing brake system failure due to hose deterioration
- Addressing brake hose swelling or bulging under pressure
Installation Notes and Tips
- Ensure the vehicle is securely lifted and supported before beginning brake work
- Use the included gaskets to prevent leaks at fitting connections
- Do not reuse old mounting hardware or brackets as they are not included
- Carefully torque the banjo bolt and flared fitting to manufacturer specifications
- Bleed the brake system thoroughly after installation to remove air
Quality Assurance and Warranty
Dorman manufactures the H622654 brake hydraulic hose to meet or exceed OEM standards for fit, form, and function. The use of treated steel fittings and EPDM rubber hose material ensures durability and resistance to common brake system stresses. This part includes gaskets for proper sealing and is backed by Dorman's quality control processes. Warranty details should be confirmed with the point of purchase or Dorman directly.
| Brand | Dorman |
|---|---|
| Part Number | H622654 |
| Axis 1 Length | 10.83 |
| Bracket Included | No |
| Color | Black |
| Describe Type | Flexible Hose |
| End 1 Attachment Type | Pinch Bolt |
| End 1 Fitting Material | Treated Steel |
| End 1 Fitting Type | Banjo |
| End 1 Thread Diameter | 10 mm |
| End 2 Attachment Type | Flared |
| End 2 Fitting Inside Diameter | M10 X 1.0 |
| End 2 Fitting Material | Treated Steel |
| End 2 Fitting Type | Female |
| End 2 Thread Diameter | M10 X 1.0 |
| Gasket Or Seal Included | Yes |
| Hose Material | EPDM Rubber |
| Jacket Included | No |
| Mounting Hardware Included | No |
| Overall Length | 13.5 |
| Package Contents | 1 Brake Hose; Gaskets |
This part fits 3 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Hyundai | Azera | Rear Left | w/Electronic Parking Brake |
| 2016 | Hyundai | Azera | Rear Left | w/Electronic Parking Brake |
| 2015 | Hyundai | Azera | Rear Left | w/Electronic Parking Brake |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
