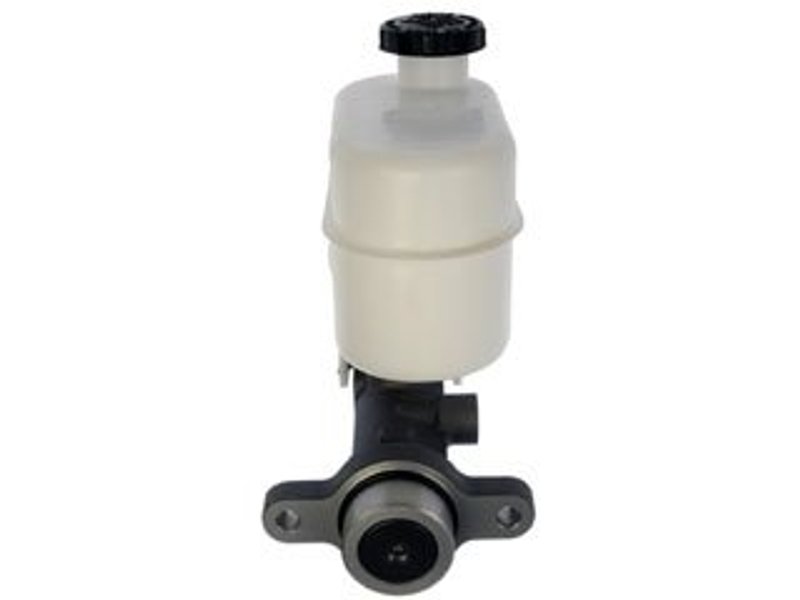

Dorman M630624 Brake Master Cylinder

Reliable Brake Master Cylinder for Ford E-Series Vans

The Dorman M630624 Brake Master Cylinder is engineered to restore proper brake function in Ford E-150, E-250, E-350 Super Duty, Econoline Van, and Econoline Wagon models. Designed with precision, this master cylinder ensures consistent hydraulic pressure for safe and effective braking performance.

• Master cylinder bore diameter of 1.313 inches for accurate hydraulic control
• Durable aluminum construction for corrosion resistance and long service life
• Includes reservoir and sensor for integrated brake fluid management
• Two outlet ports with rearward outlet size M14 x 1.5 and secondary outlet thread diameter M12 x 1.0
• Compatible with Ford E-150, E-250, E-350 Super Duty, Econoline Van, and Econoline Wagon
• Part number M630624 ensures exact fit and function

Product Details and Specifications

This Dorman brake master cylinder features a 1.313-inch bore diameter, providing the precise hydraulic pressure needed for optimal brake system performance. Constructed from aluminum, the unit offers enhanced durability and resistance to corrosion compared to traditional materials. The included reservoir and sensor facilitate proper brake fluid monitoring and management, contributing to overall system reliability. With two outlets, including a rearward outlet sized M14 x 1.5 and a secondary outlet with M12 x 1.0 thread diameter, this master cylinder is designed to meet the specific hydraulic requirements of your Ford E-Series vehicle. The thread pitch of 1.0 ensures secure connections within the brake system.

Common Applications and Problem Resolution

• Restores brake pressure in Ford E-150, E-250, E-350 Super Duty, Econoline Van, and Econoline Wagon models
• Addresses brake pedal sinking or sponginess due to master cylinder wear
• Eliminates brake fluid leaks from a failing master cylinder reservoir or seals
• Resolves inconsistent braking caused by faulty hydraulic pressure delivery
• Replaces master cylinders with damaged or malfunctioning sensors

Installation Notes and Tips

Installation of the Dorman M630624 brake master cylinder requires careful attention to brake fluid handling and bleeding procedures to ensure air is fully removed from the system. Verify compatibility with your specific Ford E-Series model before installation. Since mounting hardware is not included, retain original hardware or source appropriate fasteners. Proper torque specifications should be followed to avoid leaks or damage to the unit.

Quality Assurance and Warranty

Dorman brake master cylinders are manufactured to meet or exceed OEM standards for fit, form, and function. The M630624 part undergoes rigorous quality control to ensure reliable performance and durability. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in materials and workmanship to provide confidence in your purchase.
