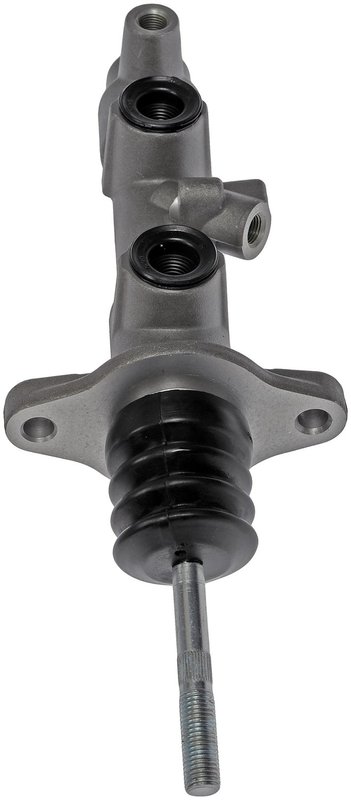

Dorman M630871 Brake Master Cylinder

Reliable Brake Master Cylinder for Lexus LS460 and LS600h

The Dorman M630871 brake master cylinder is engineered to restore proper brake hydraulics in Lexus LS460 and LS600h models. Designed with durable cast iron construction, this master cylinder ensures consistent brake fluid pressure for safe and responsive braking performance.

• Compatible with Lexus LS460 and LS600h models
• Master cylinder bore diameter of 0.75 inches for precise hydraulic control
• Constructed from cast iron for durability and long service life
• Includes push rod for direct pedal connection
• Two mounting holes for secure installation
• Features two outlets with M10-1.0 rearward outlet thread diameter
• Remote reservoir type design

Product Details and Specifications

The Dorman M630871 brake master cylinder is built with a 0.75-inch bore diameter, providing accurate hydraulic pressure modulation essential for the braking system of Lexus LS460 and LS600h vehicles. Its cast iron material offers strength and resistance to wear, supporting long-term reliability. The unit includes a push rod with a 19.05 mm pedal rod inner diameter, facilitating proper connection to the brake pedal assembly. This master cylinder features two outlets, including a secondary outlet with a 10 mm thread diameter and a rearward outlet sized M10-1.0 with a 1.0 thread pitch, compatible with the vehicle’s brake lines. The remote reservoir design allows for flexible brake fluid reservoir placement, although the reservoir itself is not included. Mounting is secured via two mounting holes, but mounting hardware is not part of the package.

Common Applications and Problem Resolution

• Restores brake fluid pressure in Lexus LS460 and LS600h brake systems
• Replaces worn or leaking master cylinders causing brake pedal sponginess
• Addresses brake fluid leaks from the master cylinder body
• Corrects inconsistent brake pedal travel or poor braking response
• Supports brake system maintenance and rebuilds requiring master cylinder replacement

Installation Notes and Tips

When installing the Dorman M630871 brake master cylinder, ensure the brake system is properly bled to remove air and maintain hydraulic integrity. Verify compatibility with your Lexus LS460 or LS600h model year and brake system configuration. Since mounting hardware and reservoir are not included, retain or source these components as needed. Use appropriate thread sealants on outlet fittings to prevent leaks. Follow manufacturer torque specifications for mounting bolts to avoid damage.

Quality Assurance and Warranty

Dorman manufactures this brake master cylinder to meet or exceed OEM standards for fit and function. The cast iron construction provides durability under normal operating conditions. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship. Consult product documentation or Dorman directly for warranty terms related to part number M630871.
