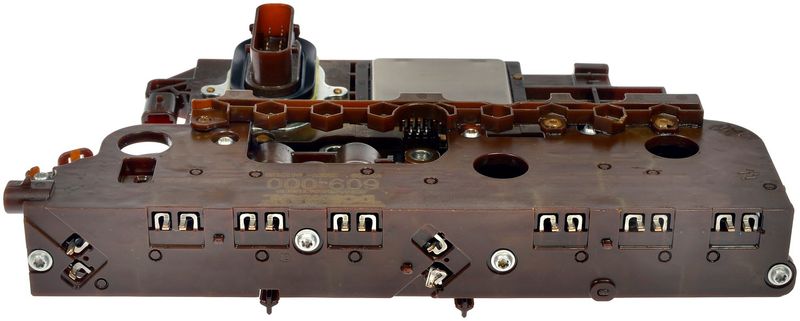

Dorman SP609-000 Transmission Control Module
| Brand | Dorman SP609-000 |
|---|---|
| Programming Required | Oui |
| Programming Required | Sí |
| Programming Required | Yes |
| Terminal Type | 19 clavijas |
| Terminal Type | 19 pins |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Rectangular |
| Terminal Quantity | 14 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 2in |
| Ancho del módulo (in) | 7 in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard replacement |
| Longitud del módulo (in) | 11 in |
| Module Height (in) | 2 in |
| Module Length (In) | 11 in |
| Module Width (in) | 7 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Buick, Chevrolet, GMC, Pontiac, and Saturn · 24 vehicles |
Standard replacement. Fully tested and validated to match original function and performance.
Programming required. Set up for specified applications after installation.
Rectangular connector. Single male connector with 14 terminals for a secure electrical interface.
Cross-references 24237552, 24238735 and 24239083 for the same application. See all 12.
Dorman SP609-000 Transmission Control Module
The Dorman SP609-000 transmission control module is a direct replacement for specified GM crossover and sedan applications. It is fully tested and validated to match the function and performance of the original TCM, with programming required after installation.
Key Features
- Fully tested and validated for original-module function and performance
- Programming required for vehicle-specific setup
- Standard replacement grade for repair and restoration work
- Rectangular connector design with 19-pin terminal type
- Male connector configuration with 1 connector and 14 terminals
- Module dimensions: 11 in. length, 7 in. width, 2 in. height
- Wiring harness and mounting hardware are not included
Detailed Description
This Dorman transmission control module, part number SP609-000, is built for vehicles that need a replacement TCM with the same operating behavior as the original unit. It is a standard replacement module that has been tested and validated for function and performance, making it a practical choice for service work on the Saturn Vue, Buick Enclave, Chevrolet Equinox, Chevrolet Malibu, Chevrolet Traverse, GMC Acadia, Pontiac G6, Pontiac Torrent, Saturn Aura, and Saturn Outlook. This part cross-references OE numbers such as 24237552 and 24238735 for the same application.
Because programming is required, the module must be configured to the vehicle after installation so it can communicate properly with the transmission and related control systems. The SP609-000 is a fitment-based solution for 2007-2010 Saturn Vue, 2008-2009 Buick Enclave, 2008-2009 Chevrolet Equinox, 2008-2009 Chevrolet Malibu, 2009 Chevrolet Traverse, 2007-2009 GMC Acadia, 2007-2009 Pontiac G6, 2008-2009 Pontiac Torrent, 2007-2009 Saturn Aura, and 2007-2009 Saturn Outlook.
What It Helps Fix
- Transmission shifting concerns caused by a failed control module
- Communication faults between the TCM and vehicle electronics
- Diagnostic trouble codes related to transmission control
- Harsh, delayed, or inconsistent shift behavior tied to module failure
- No-start or drivability issues linked to electronic transmission control faults
Installation Notes and Tips
Verify the original part number and vehicle application before ordering. The SP609-000 requires programming after installation, so a scan tool or programming procedure is needed to complete setup. Confirm connector style, terminal count, and module dimensions during replacement, and note that mounting hardware and wiring harness are not included.
Quality Assurance
Dorman validates this transmission control module to match the function and performance of the original TCM on specified applications. For buyers searching for a Dorman SP609-000 transmission control module for Chevrolet Equinox, Buick Enclave, or Saturn Vue applications, this part is built as a standard replacement for service repair use.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2010 | Saturn | Vue | Stocked Inventory |
| 2009 | Buick | Enclave | Stocked Inventory |
| 2009 | Chevrolet | Equinox | Stocked Inventory |
| 2009 | Chevrolet | Malibu | Stocked Inventory |
| 2009 | Chevrolet | Traverse | Stocked Inventory |
| 2009 | GMC | Acadia | Stocked Inventory |
| 2009 | Pontiac | G6 | Stocked Inventory |
| 2009 | Pontiac | Torrent | Stocked Inventory |
| 2009 | Saturn | Aura | Stocked Inventory |
| 2009 | Saturn | Outlook | Stocked Inventory |
| 2009 | Saturn | Vue | Stocked Inventory |
| 2008 | Buick | Enclave | Stocked Inventory |
| 2008 | Chevrolet | Equinox | Stocked Inventory |
| 2008 | Chevrolet | Malibu | Stocked Inventory |
| 2008 | GMC | Acadia | Stocked Inventory |
| 2008 | Pontiac | G6 | Stocked Inventory |
| 2008 | Pontiac | Torrent | Stocked Inventory |
| 2008 | Saturn | Aura | Stocked Inventory |
| 2008 | Saturn | Outlook | Stocked Inventory |
| 2008 | Saturn | Vue | Stocked Inventory |
| 2007 | GMC | Acadia | Stocked Inventory |
| 2007 | Pontiac | G6 | Stocked Inventory |
| 2007 | Saturn | Aura | Stocked Inventory |
| 2007 | Saturn | Outlook | Stocked Inventory |
