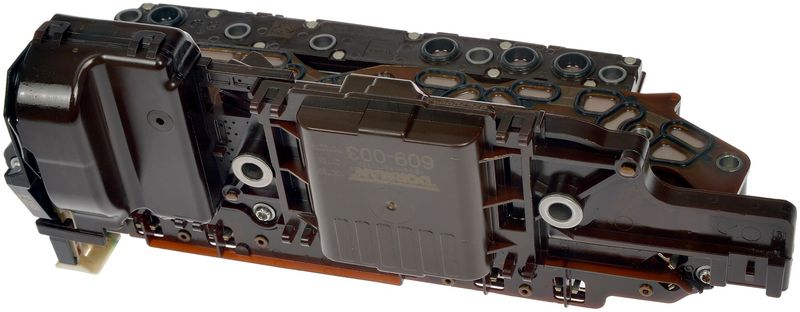

Dorman SP609-003 Transmission Control Module
| Brand | Dorman SP609-003 |
|---|---|
| Programming Required | Oui |
| Programming Required | Sí |
| Programming Required | Yes |
| Terminal Type | 16 clavijas |
| Terminal Type | 16 pins |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Circle |
| Connector Shape | Círculo |
| Terminal Quantity | 16 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 5in |
| Ancho del módulo (in) | 6 in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard replacement |
| Longitud del módulo (in) | 12 in |
| Module Height (in) | 5 in |
| Module Length (In) | 12 in |
| Module Width (in) | 6 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Cadillac, Chevrolet, GMC, Hummer, and Pontiac · 66 vehicles |
Standard replacement. Fully tested and validated to match original function and performance.
Programming required. Set up to match the application after installation.
16-pin connector. Single circular male connection for a secure electrical interface.
Cross-references 24241873, 24241890 and 24243178 for the same application. See all 6.
Dorman SP609-003 Transmission Control Module
The Dorman SP609-003 transmission control module is a remanufactured replacement for select GM vehicles that need precise transmission communication and control. It is fully tested and validated to match the function and performance of the original TCM on specified applications, including Chevrolet Silverado 2500 HD, Silverado 3500 HD, GMC Sierra 2500 HD, and Sierra 3500 HD fitments.
Key Features
- Remanufactured transmission control module for OE-style replacement
- Fully tested and validated for function and performance on listed applications
- Requires programming after installation
- Single connector design with 16 terminals
- Male circular connector configuration
- Standard replacement grade for select Chevrolet, GMC, Cadillac, Pontiac, Hummer, and Chevrolet Camaro applications
- Part number SP609-003 for easy identification
Detailed Description
Dorman SP609-003 is built for vehicles that rely on accurate transmission control for shifting strategy, communication, and drivability. This module is a direct-fit electronic replacement for a wide range of GM platforms, including 2007-2010 Chevrolet Silverado 2500 HD and Silverado 3500 HD, 2007-2010 GMC Sierra 2500 HD and Sierra 3500 HD, plus additional coverage for Cadillac CTS, Escalade, SRX, XLR, and other listed applications. The module uses one 16-pin circular male connector and is supplied as a standard replacement remanufactured unit. This part cross-references GM OE numbers 24241873 and 24241890 for the same application.
What This Part Helps Solve
- Transmission warning lights related to module failure
- Harsh, delayed, or inconsistent shifting caused by control module faults
- Communication issues between the transmission and vehicle electronics
- No-start or limp-mode conditions tied to TCM malfunction
- Drivability problems after a failed original transmission control module
Installation Notes and Fitment
Programming is required after installation. Verify connector style, terminal count, and vehicle calibration before installation. Compatible With 2013 Chevrolet Silverado 2500 HD, w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A; 2011-2013 Chevrolet Silverado 3500 HD, w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A; 2013 GMC Sierra 2500 HD, w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A; 2011-2013 GMC Sierra 3500 HD, w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A; 2011-2012 Chevrolet Silverado 2500 HD, w/Transmission BBC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A; 2008-2012 Chevrolet Suburban 2500; 2011-2012 GMC Sierra 2500 HD, w/Transmission BBC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A; 2008-2012 GMC Yukon XL 2500; 2008-2010 Cadillac STS; 2010 Chevrolet Camaro, to 11/01/09; 2007-2010 Chevrolet Silverado 2500 HD; 2007-2010 Chevrolet Silverado 3500 HD; 2007-2010 GMC Sierra 2500 HD; 2007-2010 GMC Sierra 3500 HD; 2008-2009 Cadillac CTS; 2008-2009 Cadillac Escalade; 2008-2009 Cadillac SRX; 2008-2009 Cadillac XLR; 2009 Chevrolet Avalanche; 2009 Chevrolet Silverado 1500; 2009 Chevrolet Suburban 1500; 2009 Chevrolet Tahoe; 2008-2009 GMC Sierra 1500; 2008-2009 GMC Yukon; 2008-2009 GMC Yukon XL 1500; 2008-2009 Hummer H2; 2008-2009 Pontiac G8; 2008 Cadillac Escalade ESV; 2008 Cadillac Escalade EXT. No mounting hardware or wiring harness is included.
Quality Assurance
Dorman validates this transmission control module against the function and performance of the original unit on the listed vehicle applications. The remanufactured design and application-specific testing support consistent replacement quality for GM transmission electronics. SP609-003 is a direct reference point for buyers searching for a Dorman transmission control module for Chevrolet Silverado 2500 HD, GMC Sierra 3500 HD, and related GM fitments.
| Year | Make | Model | Transmission | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Silverado 2500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2013 | Chevrolet | Silverado 3500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2013 | GMC | Sierra 2500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2013 | GMC | Sierra 3500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2012 | Chevrolet | Silverado 2500 HD | — | — | — | w/Transmission BBC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2012 | Chevrolet | Silverado 3500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2012 | Chevrolet | Suburban 2500 | — | — | — | Stocked Inventory |
| 2012 | GMC | Sierra 2500 HD | — | — | — | w/Transmission BBC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2012 | GMC | Sierra 3500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2012 | GMC | Yukon XL 2500 | — | — | — | Stocked Inventory |
| 2011 | Chevrolet | Silverado 2500 HD | — | — | — | w/Transmission BBC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2011 | Chevrolet | Silverado 3500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2011 | Chevrolet | Suburban 2500 | — | — | — | Stocked Inventory |
| 2011 | GMC | Sierra 2500 HD | — | — | — | w/Transmission BBC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2011 | GMC | Sierra 3500 HD | — | — | — | w/Transmission BCC: 0DAA, 0DKA, 2DBA, 2DDA, 2DKA, 2D1A |
| 2011 | GMC | Yukon XL 2500 | — | — | — | Stocked Inventory |
| 2010 | Cadillac | STS | — | — | — | Stocked Inventory |
| 2010 | Chevrolet | Camaro | — | — | — | To 11/01/09 |
| 2010 | Chevrolet | Silverado 2500 HD | — | — | — | Stocked Inventory |
| 2010 | Chevrolet | Silverado 3500 HD | — | — | — | Stocked Inventory |
| 2010 | Chevrolet | Suburban 2500 | — | — | — | Stocked Inventory |
| 2010 | GMC | Sierra 2500 HD | — | — | — | Stocked Inventory |
| 2010 | GMC | Sierra 3500 HD | — | — | — | Stocked Inventory |
| 2010 | GMC | Yukon XL 2500 | — | — | — | Stocked Inventory |
| 2009 | Cadillac | CTS | Automatic | — | — | Stocked Inventory |
| 2009 | Cadillac | Escalade | — | — | — | Stocked Inventory |
| 2009 | Cadillac | SRX | — | — | — | Stocked Inventory |
| 2009 | Cadillac | STS | — | — | — | Stocked Inventory |
| 2009 | Cadillac | XLR | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Avalanche | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Silverado 1500 | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Silverado 2500 HD | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Silverado 3500 HD | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Suburban 1500 | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Suburban 2500 | — | — | — | Stocked Inventory |
| 2009 | Chevrolet | Tahoe | — | — | — | Stocked Inventory |
| 2009 | GMC | Sierra 1500 | — | — | — | Stocked Inventory |
| 2009 | GMC | Sierra 2500 HD | — | — | — | Stocked Inventory |
| 2009 | GMC | Sierra 3500 HD | — | — | — | Stocked Inventory |
| 2009 | GMC | Yukon | — | — | — | Stocked Inventory |
| 2009 | GMC | Yukon XL 1500 | — | — | — | Stocked Inventory |
| 2009 | GMC | Yukon XL 2500 | — | — | — | Stocked Inventory |
| 2009 | Hummer | H2 | — | — | — | Stocked Inventory |
| 2009 | Pontiac | G8 | — | — | — | Stocked Inventory |
| 2008 | Cadillac | CTS | Automatic | — | — | Stocked Inventory |
| 2008 | Cadillac | Escalade | — | — | — | Stocked Inventory |
| 2008 | Cadillac | Escalade ESV | — | — | — | Stocked Inventory |
| 2008 | Cadillac | Escalade EXT | — | — | — | Stocked Inventory |
| 2008 | Cadillac | SRX | — | — | — | Stocked Inventory |
| 2008 | Cadillac | STS | — | — | — | Stocked Inventory |
| 2008 | Cadillac | XLR | — | — | — | Stocked Inventory |
| 2008 | Chevrolet | Silverado 2500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2008 | Chevrolet | Silverado 3500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2008 | Chevrolet | Suburban 2500 | — | — | — | Stocked Inventory |
| 2008 | GMC | Sierra 1500 | — | — | — | Stocked Inventory |
| 2008 | GMC | Sierra 2500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2008 | GMC | Sierra 3500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2008 | GMC | Yukon | — | — | — | Stocked Inventory |
| 2008 | GMC | Yukon XL 1500 | — | — | — | Stocked Inventory |
| 2008 | GMC | Yukon XL 2500 | — | — | — | Stocked Inventory |
| 2008 | Hummer | H2 | — | — | — | Stocked Inventory |
| 2008 | Pontiac | G8 | — | — | — | Stocked Inventory |
| 2007 | Chevrolet | Silverado 2500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2007 | Chevrolet | Silverado 3500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2007 | GMC | Sierra 2500 HD | — | 6.0L | V8 | Stocked Inventory |
| 2007 | GMC | Sierra 3500 HD | — | 6.0L | V8 | Stocked Inventory |
