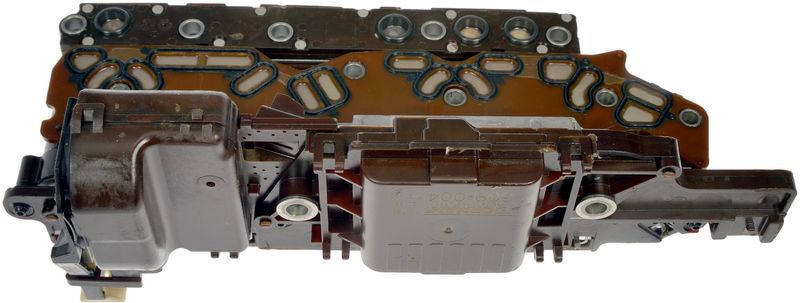

Dorman SP609-004 Transmission Control Module
| Brand | Dorman SP609-004 |
|---|---|
| Programming Required | Oui |
| Programming Required | Sí |
| Programming Required | Yes |
| Terminal Type | 16 clavijas |
| Terminal Type | 16 pin |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Circle |
| Connector Shape | Círculo |
| Terminal Quantity | 16 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 5in |
| Ancho del módulo (in) | 6 in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard replacement |
| Longitud del módulo (in) | 12 in |
| Module Height (in) | 5 in |
| Module Length (In) | 12 in |
| Module Width (in) | 6 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Cadillac, Chevrolet, and GMC · 13 vehicles |
Standard replacement. Fully tested and validated to match original function and performance.
Requires programming after installation.
Remanufactured transmission control module with a 16-pin connector.
Cross-references 24224573, 24235001 and 24235467 for the same application. See all 13.
Dorman SP609-004 Transmission Control Module
Dorman SP609-004 is a remanufactured transmission control module for select Cadillac, Chevrolet, and GMC applications. It is fully tested and validated to match the function and performance of the original TCM on specified vehicles, with programming required after installation.
Key Features
- Remanufactured transmission control module for OE-style replacement
- Fully tested and validated for function and performance on listed applications
- Programming required for vehicle-specific setup
- 1 connector with 16-pin, male, circular terminal design
- Standard replacement grade for select GM vehicles
- Compatible with Dorman SP609-004 interchange applications
Detailed Description
This Dorman transmission control module, part number SP609-004, is built for select 2006-2007 Cadillac STS and XLR, 2007 Cadillac Escalade, Escalade ESV, Escalade EXT, SRX, Chevrolet Corvette, GMC Sierra 1500, Yukon, and Yukon XL 1500 applications. It is also listed for 2007 Cadillac and GMC platforms where the original module uses a single 16-pin circular male connector. The module measures 12 in. long, 6 in. wide, and 5 in. high, and it is supplied as a remanufactured standard replacement unit.
For buyers searching for a transmission control module for 2007 Cadillac Escalade, a TCM for 2006-2007 Chevrolet Corvette, or a replacement module for 2007 GMC Yukon XL 1500, SP609-004 provides a direct-fit service part for the listed vehicles. This part cross-references OE numbers such as 24224573 and 24235001 for the same application.
What This Part Helps Address
- Transmission shifting concerns caused by a failed control module
- Communication faults between the transmission and vehicle electronics
- Warning lights related to transmission control system errors
- Driveability issues tied to incorrect shift commands or module output
- Replacement needs after module failure on listed Cadillac, Chevrolet, and GMC models
Installation Notes and Tips
Programming is required after installation, so the module must be configured for the vehicle before normal operation. Verify connector style, terminal count, and application match before installation. No mounting hardware or wiring harness is included.
Quality Assurance
Dorman states that this transmission control module has been fully tested and validated to match the function and performance of the original TCM on the specified vehicle applications. The part is a remanufactured standard replacement built for the listed fitments.
Compatible With
- Fits 2007 Cadillac Escalade, N/A
- Fits 2007 Cadillac Escalade ESV, N/A
- Fits 2007 Cadillac Escalade EXT, N/A
- Fits 2007 Cadillac SRX, N/A
- Fits 2006-2007 Cadillac STS, N/A
- Fits 2006-2007 Cadillac XLR, N/A
- Fits 2006-2007 Chevrolet Corvette, N/A
- Fits 2007 GMC Sierra 1500, N/A
- Fits 2007 GMC Yukon, N/A
- Fits 2007 GMC Yukon XL 1500, N/A
| Year | Make | Model | Body Type | Transmission | Notes |
|---|---|---|---|---|---|
| 2007 | Cadillac | Escalade | — | Automatic | Stocked Inventory |
| 2007 | Cadillac | Escalade ESV | — | Automatic | Stocked Inventory |
| 2007 | Cadillac | Escalade EXT | — | Automatic | Stocked Inventory |
| 2007 | Cadillac | SRX | — | Automatic | Stocked Inventory |
| 2007 | Cadillac | STS | — | Automatic | Stocked Inventory |
| 2007 | Cadillac | XLR | — | Automatic | Stocked Inventory |
| 2007 | Chevrolet | Corvette | — | Automatic | Stocked Inventory |
| 2007 | GMC | Sierra 1500 | Crew Cab Pickup | Automatic | Stocked Inventory |
| 2007 | GMC | Yukon | — | Automatic | Stocked Inventory |
| 2007 | GMC | Yukon XL 1500 | — | Automatic | Stocked Inventory |
| 2006 | Cadillac | STS | — | Automatic | Stocked Inventory |
| 2006 | Cadillac | XLR | — | Automatic | Stocked Inventory |
| 2006 | Chevrolet | Corvette | — | Automatic | Stocked Inventory |
