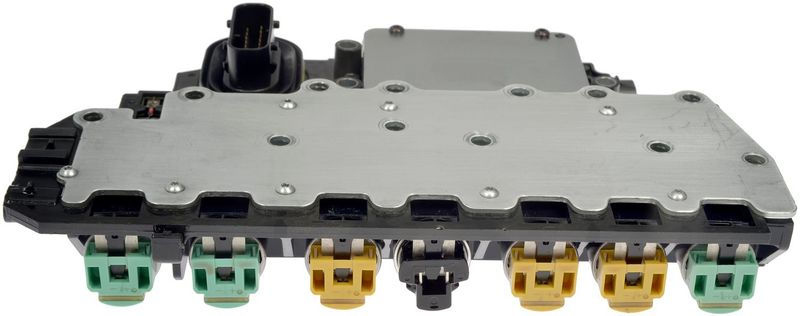

Dorman SP609-005 Transmission Control Module
| Brand | Dorman SP609-005 |
|---|---|
| Terminal Type | Aspa |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Wire Quantity | 0 |
| Connector Quantity | 4 |
| Connector Shape | Redondo |
| Connector Shape | Round |
| Terminal Quantity | 14 |
| Terminal Quantity | 2 |
| Terminal Quantity | 6 |
| Connector Gender | Macho |
| Connector Gender | Male |
| Altura del módulo (in) | 2in |
| Ancho del módulo (in) | 7 in |
| Contenidos del paquete | 1 módulo de control de transmisión |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard replacement |
| Longitud del módulo (in) | 10.5 in |
| Module Height (in) | 2 in |
| Module Length (In) | 10.5 in |
| Module Width (in) | 7 in |
| Package Contents | 1 transmission control module |
| Fits | Buick, Chevrolet, and GMC · 24 vehicles |
Standard replacement. Direct-fit transmission control module for specified applications.
Fully tested. Validated to match original module function and performance.
Connector-specific design. Four round male connectors and blade terminals for proper electrical interface.
Cross-references 24041960, 24252577 and 24260642 for the same application. See all 9.
Overview
This Dorman transmission control module is a standard replacement for specified applications and is fully tested and validated to match the function and performance of the original TCM. It is built for vehicles that need a direct electronic control solution, including Buick Regal, Chevrolet Cruze, and GMC Terrain applications.
Key Features
- Standard replacement transmission control module for specified applications
- Fully tested and validated to match original module function and performance
- Four round male connectors for application-specific electrical interfaces
- Compact module size: 10.5 in. long, 7 in. wide, 2 in. high
- No mounting hardware included
Detailed Description
Dorman SP609-005 is a transmission control module engineered for vehicles that require the same control logic and communication behavior as the original unit. The module uses four connectors with blade terminals and a round connector shape, and its standard replacement design supports service work where the original electronic module has failed or become unreliable. Fitment includes 2012-2013 Buick Regal, 2013 Buick Encore, 2012-2013 Chevrolet Cruze, 2012-2013 Chevrolet Equinox, 2012-2013 Chevrolet Malibu, and 2012-2013 GMC Terrain, along with additional listed Buick and Chevrolet applications. This part cross-references GM OE numbers such as 24252577 and 24275863 for the same application.
Common Uses
- Restoring transmission control after module failure
- Addressing communication faults related to the transmission control system
- Replacing a damaged or nonresponsive original module
- Correcting drivability issues tied to electronic transmission management
Installation Notes
Verify the part number SP609-005 and confirm the vehicle application before installation. Match connector style, terminal count, and module dimensions to the original unit. Because fitment varies by model and notes such as w/eAssist or wo/eAssist, confirm the exact application for Buick Regal, Chevrolet Sonic, or Chevrolet Captiva Sport before replacing the module.
Quality Assurance
Dorman states that this transmission control module has been fully tested and validated to match original function and performance on specified vehicle applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2017 | Buick | Regal | 2.4L | L4 | — | Stocked Inventory |
| 2016 | Buick | Regal | 2.4L | L4 | FLEX | Stocked Inventory |
| 2015 | Buick | Regal | 2.4L | L4 | FLEX | Stocked Inventory |
| 2013 | Buick | Encore | — | — | — | Stocked Inventory |
| 2013 | Buick | LaCrosse | — | — | — | w/eAssist |
| 2013 | Buick | Regal | 2.4L | L4 | — | Stocked Inventory |
| 2013 | Buick | Verano | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Captiva Sport | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Cruze | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Equinox | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Malibu | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Orlando | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Sonic | — | — | — | Stocked Inventory |
| 2013 | Chevrolet | Trax | — | — | — | Stocked Inventory |
| 2013 | GMC | Terrain | — | — | — | Stocked Inventory |
| 2012 | Buick | LaCrosse | — | — | — | w/eAssist |
| 2012 | Buick | Regal | — | — | — | Stocked Inventory |
| 2012 | Buick | Verano | 2.4L | L4 | — | Stocked Inventory |
| 2012 | Chevrolet | Captiva Sport | — | — | — | Stocked Inventory |
| 2012 | Chevrolet | Cruze | 1.4L | L4 | — | Stocked Inventory |
| 2012 | Chevrolet | Equinox | 2.4L | L4 | — | Stocked Inventory |
| 2012 | Chevrolet | Malibu | 2.4L | L4 | — | Stocked Inventory |
| 2012 | Chevrolet | Sonic | — | — | — | wo/eAssist |
| 2012 | GMC | Terrain | 2.4L | L4 | — | Stocked Inventory |
