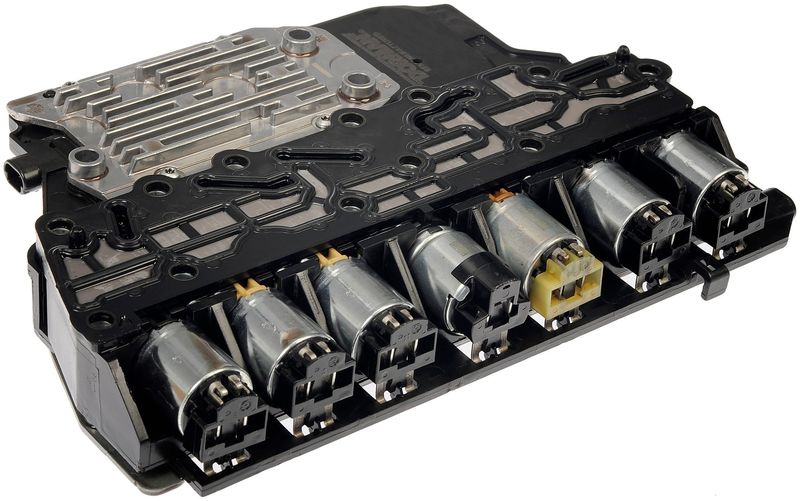

Dorman SP609-016 Transmission Control Module
| Brand | Dorman SP609-016 |
|---|---|
| Programming Required | Oui |
| Programming Required | Sí |
| Programming Required | Yes |
| Terminal Type | Aspa |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Mounting Hardware Included | Non |
| Connector Quantity | 1 |
| Connector Quantity | 1 ensamble de manguera del calentador |
| Connector Shape | Oval |
| Connector Shape | Ovalado |
| Terminal Quantity | 15 |
| Connector Gender | Female |
| Connector Gender | Hembra |
| Altura del módulo (in) | 2in |
| Ancho del módulo (in) | 7 in |
| Contenidos del paquete | 1 módulo de control de transmisión remanufacturado |
| Grado del artículo | Reemplazo estándar |
| Item Grade | Standard replacement |
| Longitud del módulo (in) | 10.5 in |
| Module Height (in) | 2 in |
| Module Length (In) | 10.5 in |
| Module Width (in) | 7 in |
| Package Contents | 1 remanufactured transmission control module |
| Wiring Harness Included | No |
| Wiring Harness Included | Non |
| Fits | Chevrolet and GMC · 2 vehicles |
Standard replacement. Matches the function and performance of the original control module.
Fully tested. Validated for dependable operation on specified applications.
Programming required. Set up to match the vehicle's original control module.
Cross-references 19331562, 24252871 and 24253557 for the same application. See all 7.
Transmission Control Module for 2010 Equinox and Terrain
Dorman SP609-016 is a remanufactured transmission control module for select 2010 Chevrolet Equinox and 2010 GMC Terrain applications. It is fully tested and validated to match the function and performance of the original TCM on the listed vehicles.
Key Features
- Transmission control module for electronic transmission management
- Fully tested and validated against original module function and performance
- Standard replacement grade for specified vehicle applications
- Female oval connector with 15 terminals
- Programming required after installation
- Remanufactured module with no wiring harness included
- Module dimensions: 10.5 in. length, 7 in. width, 2 in. height
Detailed Description
This Dorman transmission control module, part number SP609-016, is built for direct replacement use on the specified 2010 Chevrolet Equinox and 2010 GMC Terrain applications. As the transmission control module, it manages key electronic transmission functions and must be programmed to the vehicle after installation. The module uses a single oval female connector with 15 terminals and is supplied as a standard replacement remanufactured unit.
For buyers searching for a 2010 Chevrolet Equinox transmission control module or a 2010 GMC Terrain TCM replacement, SP609-016 provides a tested option that matches original module operation on the listed applications. This part number, SP609-016, is also a practical search term for remanufactured transmission control module replacement on these GM models.
What This Part Helps Solve
- Transmission shifting concerns caused by a failed control module
- Electronic communication faults related to the TCM
- Driveability issues tied to transmission control logic
- Diagnostic trouble codes associated with module malfunction
- Replacement needs after original module failure or damage
Installation Notes and Tips
Programming is required after installation. Verify connector style, terminal count, and module dimensions before installation to confirm proper vehicle match. No mounting hardware or wiring harness is included, so reuse or source the needed vehicle-specific components as required. Confirm the application against the vehicle identification and service information for the 2010 Chevrolet Equinox or 2010 GMC Terrain before programming.
Quality Assurance
Dorman validates this transmission control module to match the function and performance of the original TCM on the specified applications. Part number SP609-016 is a remanufactured standard replacement built for the listed vehicle fitment.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2010 | Chevrolet | Equinox | Stocked Inventory |
| 2010 | GMC | Terrain | Stocked Inventory |
