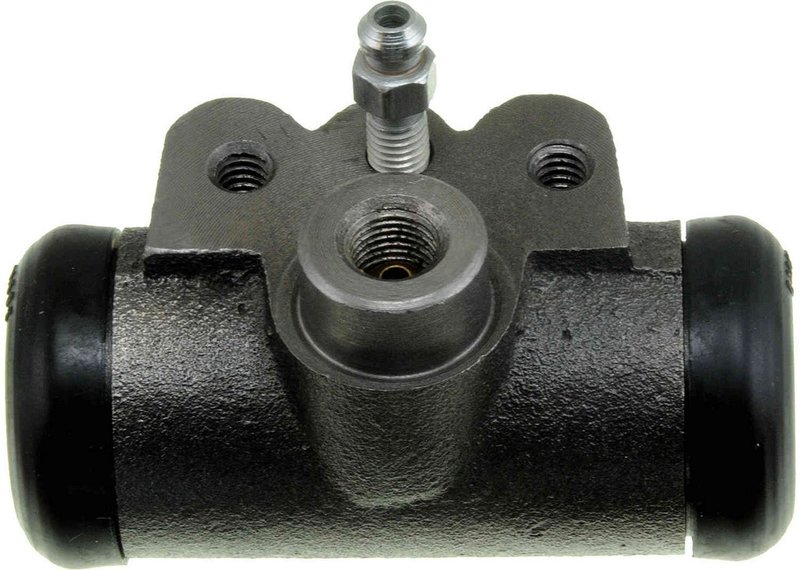

Dorman W16534 Drum Brake Wheel Cylinder - Front

Reliable Drum Brake Wheel Cylinder for Jeep CJ5

The Dorman W16534 drum brake wheel cylinder is designed specifically for Jeep CJ5 models, providing precise brake hydraulics performance. Crafted from durable cast iron, this wheel cylinder ensures consistent braking pressure and long-lasting service.

• Includes bleeder screw for easy brake bleeding
• Cast iron construction for strength and durability
• 1-inch bore diameter for optimal hydraulic function
• Brake line inlet thread diameter of 0.437 inches
• Brake component inlet thread size: two 7/16-20 threads
• Package contains one drum brake wheel cylinder

Detailed Product Features and Specifications

The Dorman W16534 wheel cylinder is engineered with a 1-inch bore diameter to maintain proper hydraulic pressure within the drum brake system of Jeep CJ5 vehicles. Its cast iron casting material offers resistance to wear and corrosion, ensuring reliable operation over time. The included bleeder screw simplifies maintenance by allowing air to be purged from the brake lines, although the bleeder screw cap is not included. The brake line inlet thread diameter measures 0.437 inches, and the unit features two brake component inlet threads sized at 7/16-20, compatible with standard brake lines for this application.

Compatible Applications and Common Issues Addressed

This drum brake wheel cylinder is compatible with Jeep CJ5 models requiring replacement of the rear or front drum brake wheel cylinders. It is designed to address several brake system issues, including:

• Leaking brake fluid from worn or damaged wheel cylinders
• Reduced braking efficiency due to cylinder bore wear
• Brake pedal sponginess caused by air in the brake lines
• Uneven brake shoe wear resulting from cylinder malfunction
• Corrosion-related failure of original wheel cylinder components

Installation Notes and Tips

When installing the Dorman W16534 wheel cylinder on a Jeep CJ5, ensure the brake system is fully depressurized before removal. Use the included bleeder screw to properly bleed the brake lines after installation to remove any trapped air. Verify that the brake line inlet threads match the vehicle’s brake lines to avoid leaks. It is recommended to inspect brake shoes and hardware during installation and replace as necessary for optimal brake performance.

Quality Assurance and Warranty Information

Dorman manufactures the W16534 wheel cylinder to meet or exceed OEM specifications for Jeep CJ5 brake hydraulics. The cast iron construction and precise machining contribute to dependable braking performance. This part is backed by Dorman’s standard warranty coverage, providing assurance of quality and durability for your vehicle’s brake system.
