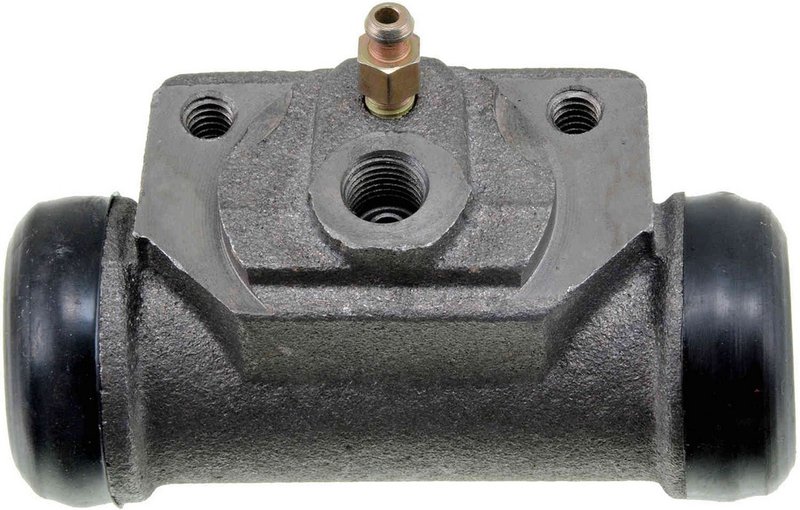

Dorman W37696 Drum Brake Wheel Cylinder - Rear
Reliable Drum Brake Wheel Cylinder for Dodge Dakota
The Dorman W37696 drum brake wheel cylinder is engineered to restore proper braking function for Dodge Dakota vehicles. Designed with durable cast iron and precise specifications, this component ensures consistent hydraulic pressure within the brake system.
- Includes bleeder screw for easy brake fluid bleeding
- Brake line inlet thread diameter: 10 mm
- Brake component inlet thread size: M10 x 1.0 with 1.0 thread pitch
- Bore diameter measures 0.813 inches for accurate fitment
- Constructed from cast iron for strength and longevity
- Package contains one drum brake wheel cylinder
Product Details and Specifications
The Dorman W37696 wheel cylinder is specifically designed for the Dodge Dakota, providing a precise fit and reliable performance. Its cast iron construction offers resistance to wear and corrosion, essential for maintaining brake system integrity. The included bleeder screw simplifies maintenance by allowing trapped air to be released, ensuring optimal hydraulic pressure. The brake line inlet thread diameter of 10 mm and M10 x 1.0 thread size with a 1.0 pitch guarantee compatibility with factory brake lines. The bore diameter of 0.813 inches matches OEM specifications to maintain proper piston movement within the cylinder.
Compatible Applications and Common Issues Addressed
- Compatible with Dodge Dakota models requiring a drum brake wheel cylinder replacement
- Resolves brake fluid leaks caused by worn or damaged wheel cylinders
- Eliminates spongy or unresponsive brake pedal feel due to hydraulic failure
- Prevents uneven brake shoe wear from inconsistent cylinder pressure
- Restores proper brake function after corrosion or piston seizure
Installation Notes and Tips
When installing the Dorman W37696 wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely lifted. Use the included bleeder screw to remove air from the brake lines after installation. Verify thread compatibility with existing brake lines before assembly. It is recommended to inspect brake shoes and hardware during replacement to maintain overall brake system performance.
Quality Assurance and Warranty Information
Dorman manufactures the W37696 wheel cylinder to meet or exceed OEM standards for durability and fitment. The cast iron construction and precise machining contribute to long service life. This part is backed by Dorman's limited warranty, providing coverage against defects in material and workmanship under normal use.
| Brand | Dorman |
| Part Number | W37696 |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Included | Yes |
| Bore Diameter | 0.813 |
| Brake Component Inlet Thread Size | M10 X 1.0 |
| Brake Line Inlet Thread Diameter | 10 |
| Casting Material | Cast Iron |
| Package Contents | 1 Drum Brake Wheel Cylinder |
| Thread Pitch | 1.0 |
This part fits 15 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1998 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1997 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1996 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1995 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1994 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1993 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1992 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1991 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1990 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1989 | Dodge | Dakota | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. | |
| 1988 | Dodge | Dakota | RWD | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. |
| 1988 | Dodge | Dakota | 4WD | Rear | Compatible with drum brake wheel cylinders with a 13/16 inch bore size. |
| 1987 | Dodge | Dakota | RWD | Rear | Compatible with drum brakes that are 10 inches with a bore size of 13/16 inch. |
| 1987 | Dodge | Dakota | 4WD | Rear | Compatible with drum brake wheel cylinders with a 13/16 inch bore size. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
