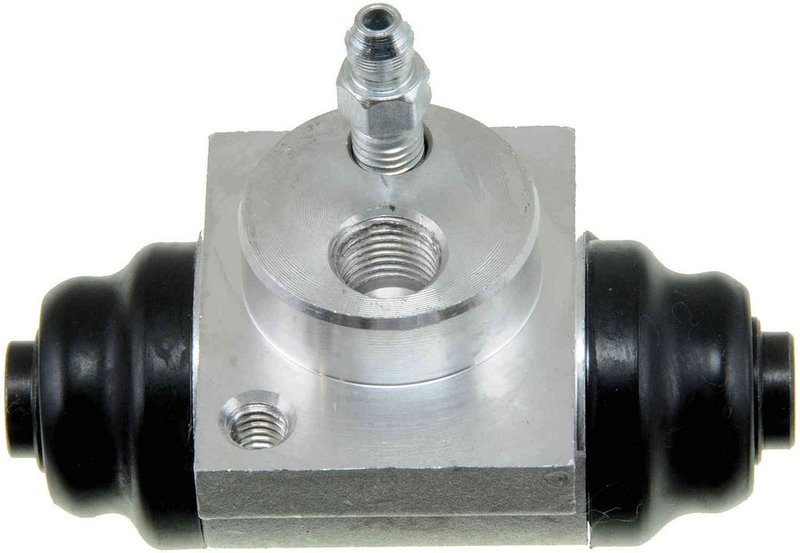

Dorman W610109 Drum Brake Wheel Cylinder - Rear, Rear Left or Rear Right
Reliable Drum Brake Wheel Cylinder for Saturn Models
The Dorman W610109 drum brake wheel cylinder is engineered to restore proper braking function for various Saturn vehicles. Designed with precision, this component ensures consistent hydraulic pressure for safe and effective drum brake operation.
- Includes bleeder screw for easy brake fluid bleeding
- Brake line inlet thread diameter: 10 mm
- Brake component inlet thread size: M10 x 1.0 with 1.0 thread pitch
- Durable aluminum casting material for corrosion resistance
- Bore diameter of 20 mm for optimal hydraulic performance
- Package contains one drum brake wheel cylinder
Detailed Product Description
The Dorman W610109 drum brake wheel cylinder is specifically designed for compatibility with Saturn L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300 models. Constructed from aluminum casting, this wheel cylinder offers enhanced resistance to corrosion and wear, contributing to longer service life. The 20 mm bore diameter provides reliable hydraulic pressure to the brake shoes, ensuring consistent braking performance. The included bleeder screw simplifies maintenance by allowing efficient removal of air from the brake lines. The brake line inlet thread diameter of 10 mm and M10 x 1.0 thread size with a 1.0 pitch ensure proper fitment and secure connection to the brake system.
Common Applications and Issues Addressed
- Restores braking performance in Saturn drum brake systems
- Eliminates brake fluid leaks caused by worn or damaged wheel cylinders
- Resolves uneven brake shoe wear due to inconsistent hydraulic pressure
- Prevents brake drag and sticking caused by seized wheel cylinders
- Improves overall brake system reliability and safety
Installation Notes and Tips
When installing the Dorman W610109 wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely lifted. Use the included bleeder screw to properly bleed the brake system after installation to remove any trapped air. Verify that the brake line inlet threads match the M10 x 1.0 specification to avoid cross-threading. Inspect brake shoes and hardware for wear and replace as necessary to maintain optimal braking performance.
Quality Assurance and Warranty
Dorman manufactures the W610109 wheel cylinder to meet or exceed OEM specifications for fit, form, and function. The aluminum casting material provides durability and corrosion resistance under typical operating conditions. This part is backed by Dorman's limited warranty, ensuring coverage against defects in material and workmanship for a specified period. Refer to Dorman's warranty documentation for detailed terms and conditions.
| Brand | Dorman |
| Part Number | W610109 |
| Bleeder Screw Cap Included | No |
| Bleeder Screw Included | Yes |
| Bore Diameter | 20 |
| Brake Component Inlet Thread Size | M10 X 1.0 |
| Brake Line Inlet Thread Diameter | 10 |
| Casting Material | Aluminum |
| Package Contents | 1 Drum Brake Wheel Cylinder |
| Thread Pitch | 1.0 |
This part fits 27 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Saturn | L300 | 2 | Rear | Bore size of 20mm for Clutch Slave Cylinder. |
| 2004 | Saturn | L300 | 1 | Rear | Bore size of 20mm for Clutch Slave Cylinder. |
| 2004 | Saturn | L300 | 3 | Rear | Bore size of 20mm for Clutch Slave Cylinder. |
| 2003 | Saturn | L200 | Rear Left | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2003 | Saturn | L200 | Rear Right | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2003 | Saturn | L300 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2003 | Saturn | LW200 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2003 | Saturn | LW300 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | L100 | Rear Left | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | L100 | Rear Right | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | L200 | Rear Left | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | L200 | Rear Right | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | L300 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | LW200 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2002 | Saturn | LW300 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | L100 | Rear Left | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | L100 | Rear Right | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | L200 | Rear Left | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | L200 | Rear Right | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | L300 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | LW200 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2001 | Saturn | LW300 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2000 | Saturn | LS | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2000 | Saturn | LS1 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2000 | Saturn | LS2 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2000 | Saturn | LW1 | Rear | Bore size of 20mm for Clutch Slave Cylinder. | |
| 2000 | Saturn | LW2 | Rear | Bore size of 20mm for Clutch Slave Cylinder. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
