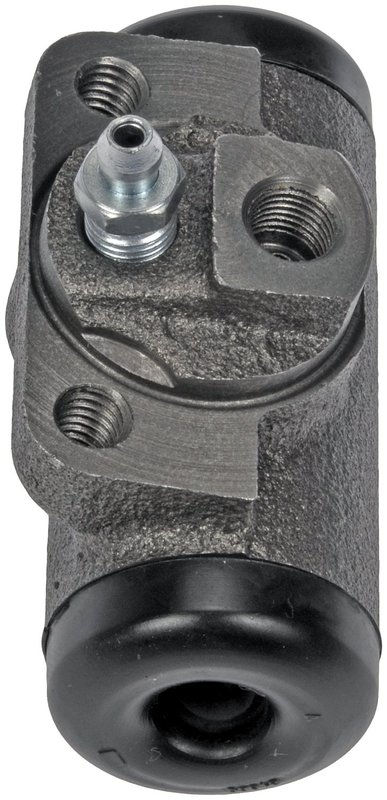

Dorman W610194 Drum Brake Wheel Cylinder - Rear

Reliable Drum Brake Wheel Cylinder for Ford and Mazda Vehicles

The Dorman W610194 drum brake wheel cylinder is engineered to restore proper brake hydraulics in select Ford and Mazda models. Designed with durable cast iron and a precise 0.75-inch bore diameter, this component ensures consistent braking performance for your B2300, B3000, B4000, and Cougar vehicles.

Key Features of the Dorman W610194 Wheel Cylinder

• Includes bleeder screw for easy brake system bleeding
• Constructed from cast iron for strength and durability
• 0.75-inch bore diameter for accurate hydraulic pressure
• Brake component inlet thread size: 3/8-24 UNF
• Thread diameter of 3/8 inch for secure fitment
• Package contains one drum brake wheel cylinder

Detailed Product Description

The Dorman W610194 drum brake wheel cylinder is a critical component in the brake hydraulics system, responsible for converting hydraulic pressure into mechanical force to engage the brake shoes. Manufactured from cast iron, this wheel cylinder offers resistance to wear and corrosion, extending the service life of your brake system. The included bleeder screw simplifies maintenance by allowing trapped air to be released, ensuring optimal brake responsiveness. Its 0.75-inch bore diameter and 3/8-24 UNF inlet thread size are designed to match the original equipment specifications for Ford B2300, B3000, B4000, and Mazda Cougar models, providing a precise and reliable fit.

Common Applications and Issues Addressed

• Restores brake pressure loss due to leaking wheel cylinders
• Eliminates brake drag caused by seized or sticking cylinders
• Prevents brake fluid leaks that compromise braking efficiency
• Replaces worn or corroded wheel cylinders to maintain safety
• Improves brake pedal feel and responsiveness

Installation Notes and Tips

When installing the Dorman W610194 wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely lifted. Use the included bleeder screw to properly bleed the brake lines after installation to remove any air pockets. Verify that the thread sizes match your vehicle’s specifications to avoid cross-threading. It is recommended to inspect brake shoes and hardware during installation for wear and replace as necessary to maintain optimal braking performance.

Quality Assurance and Warranty Information

Dorman manufactures the W610194 wheel cylinder to meet or exceed OEM standards, using cast iron for durability and reliability. The product includes a bleeder screw to facilitate maintenance and is backed by Dorman’s limited warranty, which covers defects in material and workmanship under normal use. This ensures confidence in the product’s performance and longevity when installed in compatible Ford and Mazda models.
