Home› Brake > Hardware, Fasteners and Fittings› Dorman W96613 Drum Brake Wheel Cylinder - Rear
Dorman W96613 Drum Brake Wheel Cylinder - RearOE Quality 60-Day Returns

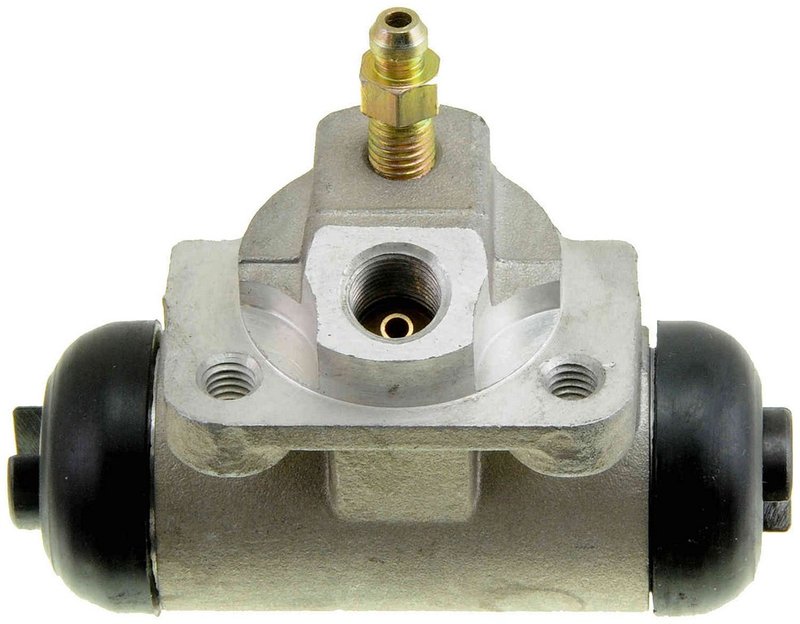

Dorman W96613 Drum Brake Wheel Cylinder - Rear - view 1
Dorman W96613 Drum Brake Wheel Cylinder - Rear - view 2
Part #: W96613

Dorman W96613 Drum Brake Wheel Cylinder - Rear

Rear
⚙️ 26 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$25.28Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Nissan, NV350 Urvan, Urvan, Axxess, Stanza, Ichi Van, Van, 210, 510, 810, 200SX, and B210
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Drum Brake Wheel Cylinder options

Reliable Drum Brake Wheel Cylinder for Nissan Vehicles

The Dorman W96613 drum brake wheel cylinder is engineered to restore proper braking function in select Nissan models. Designed with precision, this component ensures consistent hydraulic pressure for safe and effective drum brake operation.

  • Includes bleeder screw for easy brake system bleeding
  • Brake line inlet thread diameter: 10 mm
  • Brake component inlet thread size: M10 x 1.0 with 1.0 thread pitch
  • Constructed from durable aluminum casting material
  • Bore diameter measures 0.813 inches for accurate fitment
  • Package contains one drum brake wheel cylinder

Technical Details and Specifications

The Dorman W96613 wheel cylinder features an aluminum casting that offers corrosion resistance and long-lasting durability. Its bore diameter of 0.813 inches is designed to match OEM specifications, ensuring proper hydraulic pressure and brake shoe movement. The included bleeder screw simplifies maintenance by allowing trapped air to be released from the brake system, improving brake responsiveness. The brake line inlet thread diameter of 10 mm and M10 x 1.0 thread size with a 1.0 pitch provide compatibility with the brake lines on Nissan 200SX, 210, 510, 810, and NV350 Urvan models.

Compatible Nissan Models and Applications

This drum brake wheel cylinder is compatible with various Nissan vehicles, including the 200SX, 210, 510, 810, and NV350 Urvan. It is designed to replace worn or leaking wheel cylinders in the rear drum brake assemblies of these models, restoring braking performance and safety.

  • Eliminates brake fluid leaks from the wheel cylinder
  • Restores proper hydraulic pressure for consistent braking
  • Prevents brake drag caused by sticking pistons
  • Resolves uneven brake shoe wear due to cylinder malfunction
  • Improves overall brake system reliability

Installation Notes and Tips

When installing the Dorman W96613 drum brake wheel cylinder, ensure the brake system is properly bled using the included bleeder screw to remove air pockets. Verify thread compatibility with the brake line inlet (M10 x 1.0) before installation. Inspect brake shoes and hardware for wear and replace as necessary to maintain optimal braking performance. Use appropriate brake fluid and follow manufacturer torque specifications for mounting bolts.

Quality Assurance and Warranty

Dorman manufactures the W96613 wheel cylinder to meet or exceed OEM standards, using quality aluminum casting for durability and corrosion resistance. The product includes a bleeder screw for maintenance convenience. While specific warranty details are not provided here, Dorman typically offers limited warranties on their brake hydraulics components to ensure customer confidence and product reliability.

BrandDorman
Part NumberW96613
Bleeder Screw Cap IncludedNo
Bleeder Screw IncludedYes
Bore Diameter0.813
Brake Component Inlet Thread SizeM10 X 1.0
Brake Line Inlet Thread Diameter10
Casting MaterialAluminum
Package Contents1 Drum Brake Wheel Cylinder
Thread Pitch1.0

This part fits 26 vehicles. Search below:

YearMakeModelBody TypePositionNotes
2020NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2020NissanNV350 UrvanExtended Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2019NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2019NissanNV350 UrvanExtended Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2018NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2018NissanNV350 UrvanExtended Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2017NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2017NissanNV350 UrvanExtended Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2016NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2015NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
2014NissanNV350 UrvanStandard Cargo VanRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1982Nissan210RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1981Nissan210RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1981Nissan510RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1980Nissan210RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1980Nissan510RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1980Nissan810WagonRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1979Nissan200SXRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1979Nissan210RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1979Nissan510RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1979Nissan810WagonRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1978Nissan200SXRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1978Nissan510RearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1978Nissan810WagonRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1977Nissan200SXRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.
1977Nissan810WagonRearCompatible with drum brake wheel cylinders with a 13/16 inch bore size.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

072-6547134.4210118E1522037407337734410005N14784-0410196613F96613W-51101W906453WC13773

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
