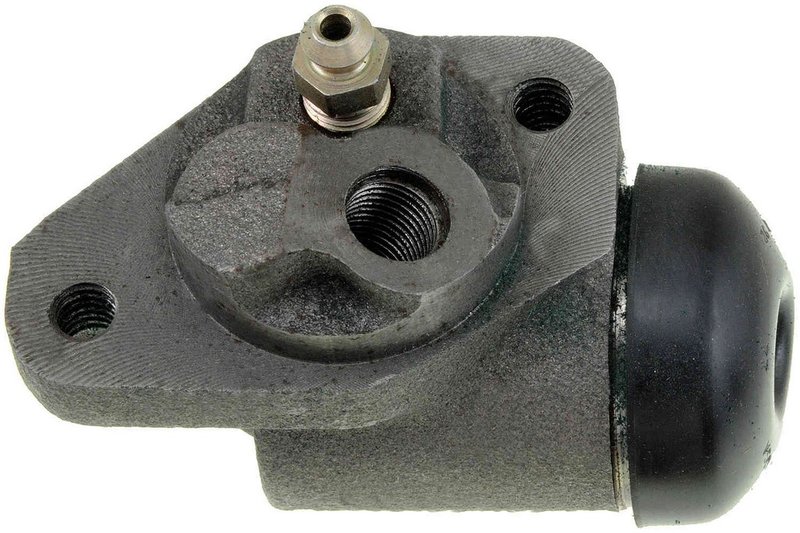

Dorman W9695 Drum Brake Wheel Cylinder - Front Left

Reliable Drum Brake Wheel Cylinder for Accurate Brake Performance

The Dorman W9695 drum brake wheel cylinder is engineered to restore proper braking function in compatible vehicles. Designed with a durable cast iron construction and precise bore diameter, this wheel cylinder ensures consistent hydraulic pressure for safe and effective drum brake operation.

• Includes bleeder screw for easy brake system bleeding
• Cast iron casting material for strength and durability
• 1-inch bore diameter for accurate hydraulic response
• Brake line inlet thread diameter of 0.437 inches
• Brake component inlet thread size of 7/16-20 UNF
• Package contains one drum brake wheel cylinder

Durable Construction and Precise Specifications

The Dorman W9695 wheel cylinder features a robust cast iron body that withstands the rigors of brake system pressure and heat. Its 1-inch bore diameter is designed to provide consistent hydraulic force to the brake shoes, ensuring reliable stopping power. The included bleeder screw simplifies maintenance by allowing trapped air to be released from the brake lines, improving brake pedal feel and responsiveness. Thread sizes are standardized with a 0.437-inch brake line inlet and a 7/16-20 UNF brake component inlet, ensuring compatibility with many drum brake systems.

Compatible Vehicles and Applications

This drum brake wheel cylinder is compatible with a range of vehicles that utilize similar brake hydraulics specifications. It is commonly used in drum brake systems on various domestic and import models requiring a 1-inch bore diameter wheel cylinder with the specified thread sizes. For example, it fits certain Ford, Chevrolet, and Dodge trucks and SUVs from the late 1990s to early 2000s. Always verify fitment with your vehicle’s make, model, and year before purchase.

• Restores proper brake hydraulic pressure
• Eliminates brake pedal sponginess caused by leaking cylinders
• Prevents brake fluid leaks at the wheel cylinder
• Improves overall drum brake responsiveness and safety
• Replaces worn or corroded wheel cylinders to maintain brake system integrity

Installation Notes and Tips

When installing the Dorman W9695 drum brake wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely supported. Use the included bleeder screw to properly bleed the brake lines after installation to remove any air pockets. Inspect brake shoes and hardware for wear and replace as necessary to ensure optimal brake performance. Follow manufacturer torque specifications for all fittings and connections.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The W9695 wheel cylinder undergoes rigorous quality control to ensure durability and reliable performance. While specific warranty details may vary, Dorman typically offers a limited warranty covering defects in material and workmanship. Consult product documentation for exact warranty terms.
