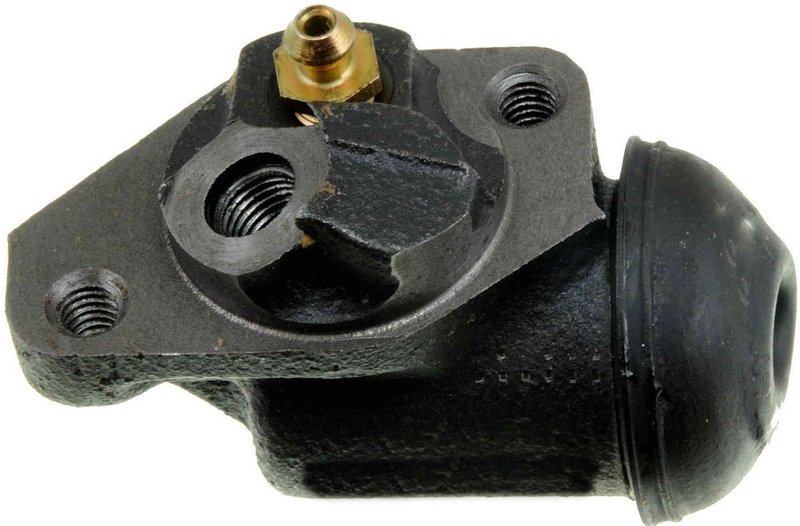

Dorman W9696 Drum Brake Wheel Cylinder - Front Right

Reliable Drum Brake Wheel Cylinder for Precise Braking

The Dorman W9696 drum brake wheel cylinder is engineered to restore proper brake function in compatible vehicles. Designed with durable cast iron construction and precise dimensions, this wheel cylinder ensures consistent hydraulic pressure for safe and effective braking performance.

• Includes bleeder screw for easy brake system bleeding
• Cast iron casting material for strength and durability
• 1-inch bore diameter for accurate hydraulic operation
• Brake line inlet thread diameter of 0.437 inches
• Brake component inlet thread size 7/16-20 UNF
• Package contains one drum brake wheel cylinder

Durable Construction and Precise Specifications

The Dorman W9696 wheel cylinder features a robust cast iron body that withstands the rigors of brake system pressure and heat. Its 1-inch bore diameter is designed to provide consistent hydraulic force to the brake shoes, ensuring reliable stopping power. The included bleeder screw simplifies maintenance by allowing trapped air to be released from the brake lines, improving brake responsiveness. Thread sizes are standardized with a 0.437-inch brake line inlet and a 7/16-20 UNF brake component inlet, ensuring compatibility with many drum brake systems.

Compatible Vehicles and Applications

This drum brake wheel cylinder is compatible with various makes and models requiring a 1-inch bore diameter and matching thread sizes. It is commonly used in drum brake systems on trucks and passenger vehicles where Dorman parts are specified. The W9696 part number is often sought for replacement in vehicles that demand reliable brake hydraulics components.

• Restores proper hydraulic pressure in drum brake systems
• Eliminates brake drag caused by leaking or seized wheel cylinders
• Prevents brake fluid leaks that reduce braking efficiency
• Addresses uneven brake shoe wear due to cylinder malfunction
• Improves overall brake pedal feel and responsiveness

Installation Notes and Tips

When installing the Dorman W9696 wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely supported. Use the included bleeder screw to remove air from the brake lines after installation. Verify thread compatibility with existing brake lines and fittings before assembly. Properly torque all connections to manufacturer specifications to avoid leaks or component damage.

Quality Assurance and Warranty

Dorman manufactures the W9696 wheel cylinder to meet or exceed OEM standards for fit, form, and function. The cast iron construction provides long-lasting durability under normal operating conditions. While specific warranty details are not provided here, Dorman typically offers limited warranties on their brake hydraulics components to ensure customer confidence in product reliability.
