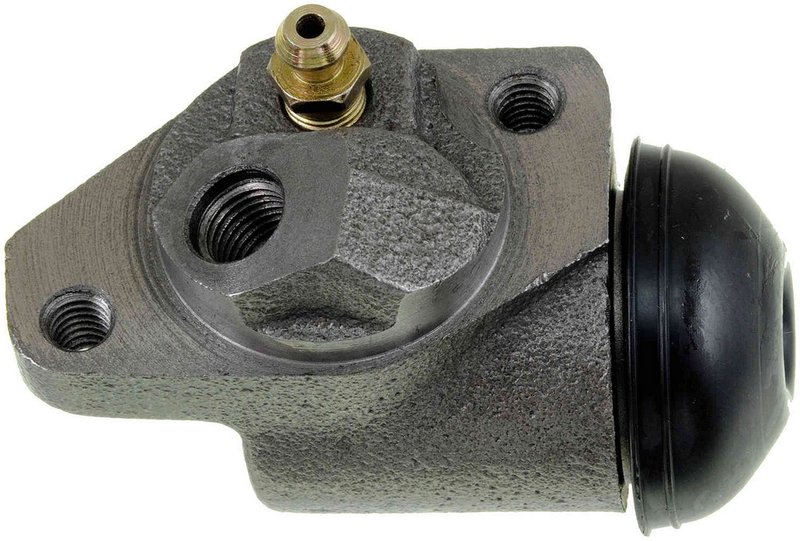

Dorman W9697 Drum Brake Wheel Cylinder - Front or Front Left

Reliable Drum Brake Wheel Cylinder for Accurate Braking

The Dorman W9697 drum brake wheel cylinder is engineered to restore proper brake function in compatible vehicles. Designed with durable cast iron construction and precise dimensions, this wheel cylinder ensures consistent hydraulic pressure for safe stopping performance.

• Includes bleeder screw for easy brake system bleeding
• Cast iron casting material for strength and durability
• 1-inch bore diameter for accurate hydraulic operation
• Brake line inlet thread diameter of 0.437 inches
• Brake component inlet thread size 7/16-20 UNF
• Package contains one drum brake wheel cylinder

Durable Construction and Precise Specifications

The Dorman W9697 wheel cylinder features a robust cast iron body designed to withstand the rigors of brake system pressure and heat. Its 1-inch bore diameter provides the necessary piston size to apply even force to the brake shoes. The included bleeder screw simplifies maintenance by allowing trapped air to be released from the brake hydraulics, improving brake responsiveness. Thread sizes are standardized with a 0.437-inch brake line inlet and a 7/16-20 UNF brake component inlet, ensuring compatibility with original equipment brake lines and fittings.

Compatible Vehicles and Applications

This drum brake wheel cylinder is compatible with various vehicle makes and models that require a 1-inch bore diameter and matching thread sizes. It is commonly used in older domestic and import vehicles equipped with drum brake systems. For example, it fits certain Ford, Chevrolet, and Dodge models from the 1980s and 1990s that utilize similar brake hydraulics specifications. Always verify fitment with your vehicle's service manual or parts guide before purchase.

Common Brake Issues Addressed

• Brake pedal feels spongy or soft due to leaking wheel cylinder
• Uneven brake shoe wear caused by inconsistent hydraulic pressure
• Brake fluid leaks near the drum brake assembly
• Reduced braking efficiency or pulling to one side during braking
• Brake warning light triggered by hydraulic system faults

Installation Notes and Tips

When installing the Dorman W9697 drum brake wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely supported. Use the included bleeder screw to remove air from the brake lines after installation. Inspect brake shoes and hardware for wear and replace as necessary to maintain optimal braking performance. Properly torque all fittings to manufacturer specifications to prevent leaks.

Quality Assurance and Warranty

Dorman manufactures the W9697 wheel cylinder to meet or exceed OEM standards for fit, form, and function. The cast iron construction provides long-lasting durability under normal operating conditions. While specific warranty details are not provided, Dorman products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation for exact warranty terms.
