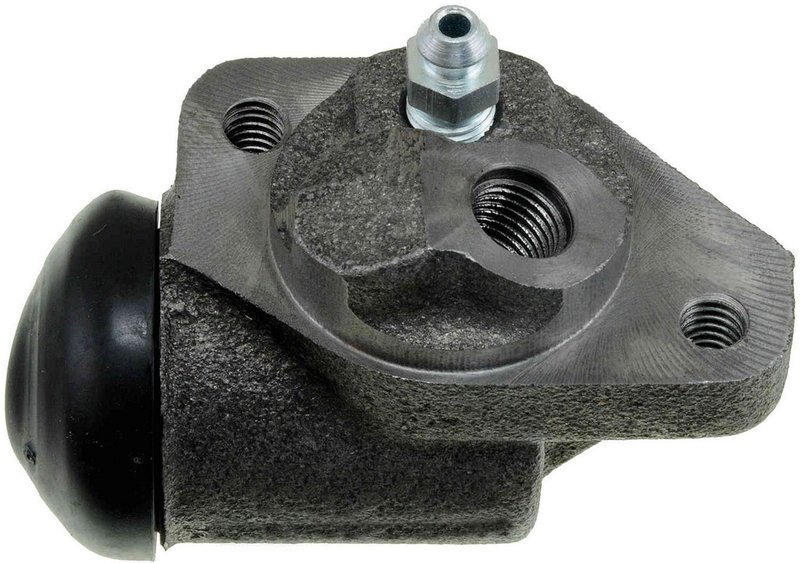

Dorman W9698 Drum Brake Wheel Cylinder - Front Right

Reliable Drum Brake Wheel Cylinder for Accurate Brake Performance

The Dorman W9698 drum brake wheel cylinder is engineered to restore proper braking function in compatible vehicles. Designed with a durable cast iron construction and precise bore diameter, this wheel cylinder ensures consistent hydraulic pressure for safe and effective drum brake operation.

• Includes bleeder screw for easy brake system bleeding
• Cast iron casting material for strength and durability
• 1-inch bore diameter for accurate hydraulic response
• Brake line inlet thread diameter of 0.437 inches
• Brake component inlet thread size 7/16-20 UNF
• Package contains one drum brake wheel cylinder

Durable Construction and Precise Specifications

The Dorman W9698 wheel cylinder features a robust cast iron body that withstands the rigors of brake system pressure and heat. Its 1-inch bore diameter is designed to provide consistent hydraulic force to the brake shoes, ensuring reliable stopping power. The included bleeder screw simplifies maintenance by allowing trapped air to be released from the brake lines, improving brake pedal feel and safety. Thread sizes are standardized with a 0.437-inch brake line inlet and a 7/16-20 UNF brake component inlet, ensuring compatibility with many drum brake systems.

Compatible Vehicles and Applications

This drum brake wheel cylinder is compatible with various makes and models requiring a 1-inch bore diameter and matching thread sizes. It is commonly used in drum brake systems on trucks, SUVs, and passenger vehicles where Dorman parts are specified. The part number W9698 is referenced for replacement in brake hydraulics maintenance and repair.

• Restores proper hydraulic pressure in drum brake systems
• Eliminates brake pedal sponginess caused by leaking cylinders
• Prevents brake fluid leaks at the wheel cylinder
• Addresses uneven brake shoe wear due to cylinder malfunction
• Improves overall brake system responsiveness and safety

Installation Notes and Tips

When installing the Dorman W9698 drum brake wheel cylinder, ensure the brake system is fully depressurized and the vehicle is securely supported. Use the included bleeder screw to properly bleed the brake lines after installation to remove any air pockets. Verify thread compatibility with existing brake lines and fittings before assembly. Follow manufacturer torque specifications to avoid damage to threads or components.

Quality Assurance and Warranty

Dorman parts are manufactured to meet or exceed OEM standards for fit, form, and function. The W9698 wheel cylinder undergoes rigorous quality control to ensure durability and reliable performance in brake hydraulics. While specific warranty details are not provided here, Dorman typically offers limited warranties covering defects in material and workmanship.
