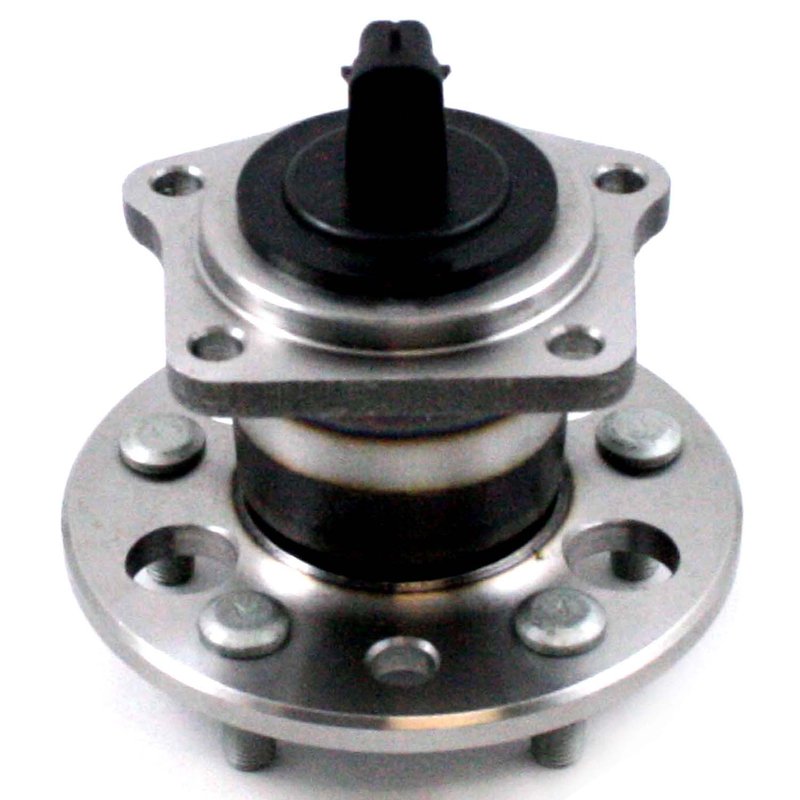

DuraGo 295-12041 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12041

The DuraGo 295-12041 wheel bearing and hub assembly is designed specifically for Toyota Sienna models. This non-driven hub assembly integrates an ABS sensor to maintain your vehicle's anti-lock braking system functionality, ensuring reliable performance and safety.

• Compatible with Toyota Sienna vehicles
• Non-driven wheel bearing and hub assembly
• Includes 5 M12 x 1.5 wheel studs
• Equipped with ABS sensor for anti-lock braking system
• Flange bolt hole quantity: 4, flange diameter: 153 mm (6.02 in)
• Wheel pilot diameter: 60 mm (2.36 in), brake pilot diameter: 62 mm (2.44 in)
• Hub pilot diameter: 68 mm (2.68 in), flange offset: 78.6 mm (3.09 in)

Detailed Product Description

The DuraGo 295-12041 wheel bearing and hub assembly is engineered to meet the precise specifications required for Toyota Sienna vehicles. Featuring a modified flange shape and a flange bolt hole diameter of 10.5 mm (0.41 in), this assembly ensures a secure fit and proper alignment. The assembly includes five wheel studs sized M12 x 1.5, which are pre-installed to facilitate wheel mounting. The hub pilot diameter of 68 mm (2.68 in) and brake pilot diameter of 62 mm (2.44 in) provide accurate centering for brake components and wheels, reducing vibration and improving overall driving stability. Additionally, the integrated ABS sensor supports the vehicle's anti-lock braking system, enhancing safety during braking maneuvers.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Sienna
• Restores proper ABS sensor function to maintain anti-lock braking system performance
• Eliminates wheel vibration caused by faulty hub or bearing wear
• Addresses wheel stud damage or corrosion issues
• Corrects flange misalignment affecting wheel mounting and brake operation

Installation Notes and Tips

When installing the DuraGo 295-12041 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes align correctly with the mounting surface. Since flange bolts are not included, retain or replace existing hardware as needed. Confirm the ABS sensor connector is properly connected to maintain system functionality. Torque wheel studs and mounting bolts to manufacturer specifications to avoid premature wear or failure.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet OEM standards for fit, form, and function. The part number 295-12041 undergoes rigorous quality control to ensure durability and reliable performance on Toyota Sienna vehicles. While specific warranty details are not provided, DuraGo products typically come with a limited warranty covering defects in materials and workmanship.
