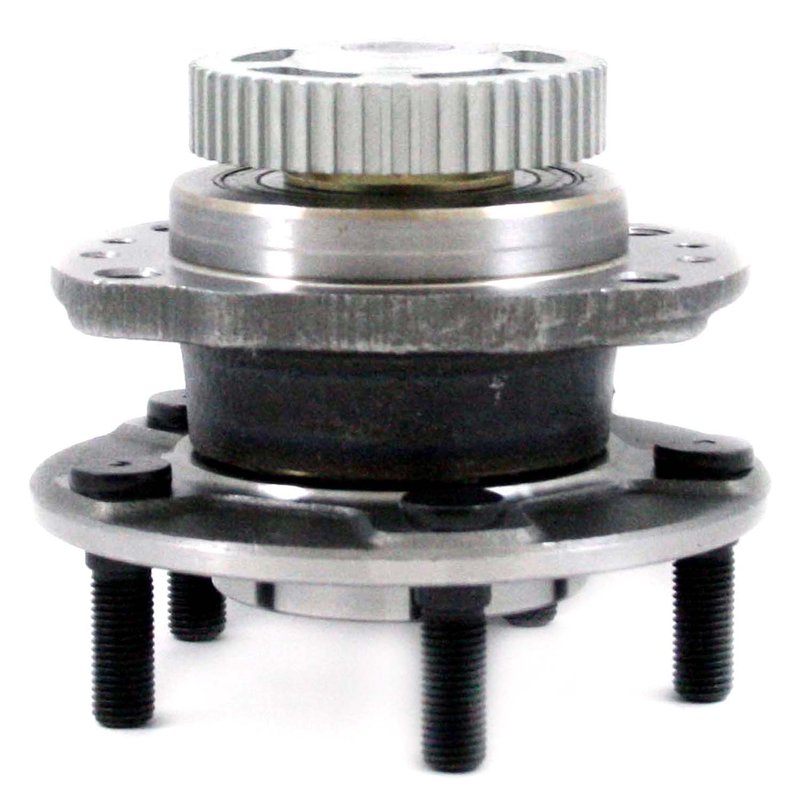

DuraGo 295-12156 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Chrysler and Dodge Vehicles

The DuraGo 295-12156 wheel bearing and hub assembly is engineered to meet the specific needs of Chrysler, Dodge, and Plymouth models including the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager. Designed as a non-driven hub assembly, it integrates an ABS tone ring to support anti-lock braking systems for enhanced safety and performance.

• Compatible with Chrysler Caravan, Dodge Grand Caravan, Plymouth Voyager, and related models
• Non-driven wheel bearing and hub assembly with integrated ABS tone ring
• Flange bolt hole quantity: 4 with M12 x 1.5 flange bolt size
• Includes 5 M12 x 1.5 wheel studs for secure wheel mounting
• Flange shape: Rectangle with a flange diameter of 140 mm (5.51 inches)
• Wheel pilot diameter options: 2.81 inches (71.4 mm) and brake pilot diameter 2.83 inches (71.9 mm)
• Hub pilot diameter: 3.39 inches (86 mm) for precise fitment
• ABS sensor ring with 47 teeth for accurate anti-lock braking system feedback
• Flange offset measurements: 1.89 inches (48 mm) ensuring proper alignment

Detailed Product Description

The DuraGo 295-12156 wheel bearing and hub assembly is designed to provide a precise fit and reliable performance for select Chrysler, Dodge, and Plymouth minivans. This non-driven hub assembly features a rectangular flange shape with four bolt holes sized M12 x 1.5, ensuring compatibility with the vehicle’s existing mounting points. The assembly includes five M12 x 1.5 wheel studs, facilitating secure wheel attachment without the need for additional hardware.

Critical dimensions such as the wheel pilot diameter (2.81 inches or 71.4 mm), brake pilot diameter (2.83 inches or 71.9 mm), and hub pilot diameter (3.39 inches or 86 mm) are engineered to match factory specifications, promoting proper wheel alignment and minimizing vibration. The flange diameter of 140 mm (5.51 inches) and flange offset of 1.89 inches (48 mm) contribute to maintaining the correct wheel positioning relative to the suspension and braking components.

Equipped with a 47-tooth ABS sensor ring, this hub assembly supports the vehicle’s anti-lock braking system by providing accurate wheel speed data, which is essential for safe braking performance. The tone ring design is compatible with the factory ABS system on Chrysler Caravan, Dodge Grand Caravan, Plymouth Voyager, and similar models.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Chrysler Caravan and Dodge Grand Caravan
• Fixes wheel noise or roughness caused by bearing wear
• Resolves ABS warning lights related to faulty tone rings or hub assemblies
• Addresses wheel vibration or looseness due to hub assembly failure
• Restores proper wheel alignment and braking system function

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Remove the existing hub assembly carefully, noting the flange bolt pattern and wheel stud orientation. The DuraGo 295-12156 includes wheel studs but does not include flange bolts, so retain or replace flange bolts as needed. Verify ABS sensor ring alignment to avoid sensor errors. Torque all fasteners to manufacturer specifications to maintain safety and performance.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for fit, form, and function. The 295-12156 part number undergoes rigorous quality control to ensure durability and reliable operation in demanding driving conditions. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty covering defects in materials and workmanship.
