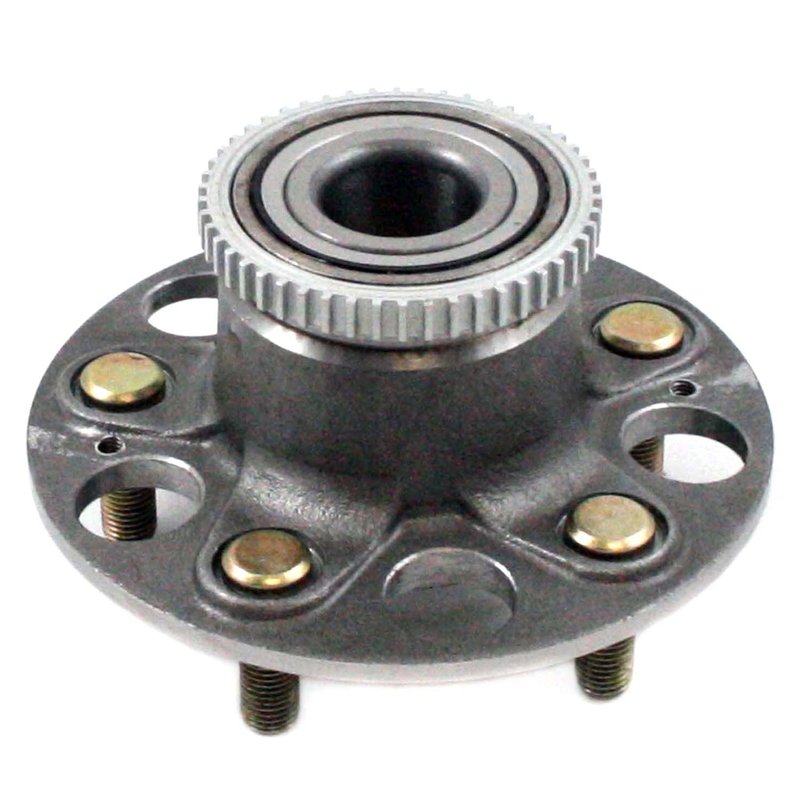

DuraGo 295-12173 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12173 |
|---|---|
| Position | Rear |
| 143 | 114.3 |
| 143 | 4.5 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.52 |
| Wheel Pilot Diameter | 64 |
| Brake Pilot Diameter | 2.52 |
| Brake Pilot Diameter | 64 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.6 |
| Hub Pilot Diameter | 66 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone ring |
| Flange Offset | 2.48 |
| Flange Offset | 63 |
| Flange Diameter | 152 |
| Flange Diameter | 5.98 |
| ABS Sensor Ring Teeth Quantity | 50 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Acura · 3 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Each unit is checked to meet strict quality standards.
ABS-ready design. Includes a tone ring for anti-lock braking system compatibility.
Cross-references Timken 512173, 42200S3MA51 and 0516180 for the same application. See all 8.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12173 wheel bearing and hub assembly is a rear, non-driven replacement for select 2001-2003 Acura CL applications. It is built with ABS tone ring integration, 5 wheel studs, and OE-style dimensions to support proper wheel mounting and sensor operation.
Key Features
- Rear wheel bearing and hub assembly for 2001-2003 Acura CL
- Non-driven hub assembly for rear axle service
- ABS equipped with tone ring and 50 sensor ring teeth
- Wheel stud size: M12 x 1.5 with wheel studs included
- Wheel pilot diameter: 64 mm; hub pilot diameter: 66 mm
- Flange diameter: 152 mm and flange offset: 63 mm
- Cross-reference: Timken 512173
Detailed Description
DuraGo 295-12173 is a rear wheel bearing and hub assembly engineered for the 2001-2003 Acura CL. This assembly uses a non-driven hub design and includes ABS tone ring functionality to support wheel speed sensor signal transfer on vehicles equipped with anti-lock braking systems. The hub is specified with a 5-lug pattern, M12 x 1.5 wheel studs, a 64 mm wheel pilot diameter, and a 66 mm hub pilot diameter for proper fitment at the wheel mounting interface. DuraGo assembles these hub units with quality components and tests each unit before release. This part cross-references Timken 512173 for the same application.
What This Part Helps Address
- Wheel bearing noise from a worn rear hub assembly
- Excessive wheel play or looseness at the rear axle
- ABS warning light concerns related to hub-mounted tone ring function
- Uneven wheel mounting or vibration caused by hub wear
- Reduced driveline efficiency from friction in a deteriorated hub
Installation Notes and Tips
Fits 2001-2003 Acura CL, rear. Replace the axle nut and torque to 134 ft-lbs (181 Nm) during installation. Verify ABS sensor ring alignment and confirm all mounting surfaces are clean before assembly. Use the vehicle’s service procedure for final torque and inspection steps. The DuraGo 295-12173 should be matched to the rear position only for the listed Acura CL applications.
Quality Assurance
DuraGo manufactures hub assemblies to industry-leading quality standards and states that each unit is 100% tested before shipment. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Acura | CL | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2002 | Acura | CL | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2001 | Acura | CL | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| No rows match your filter. | ||||
