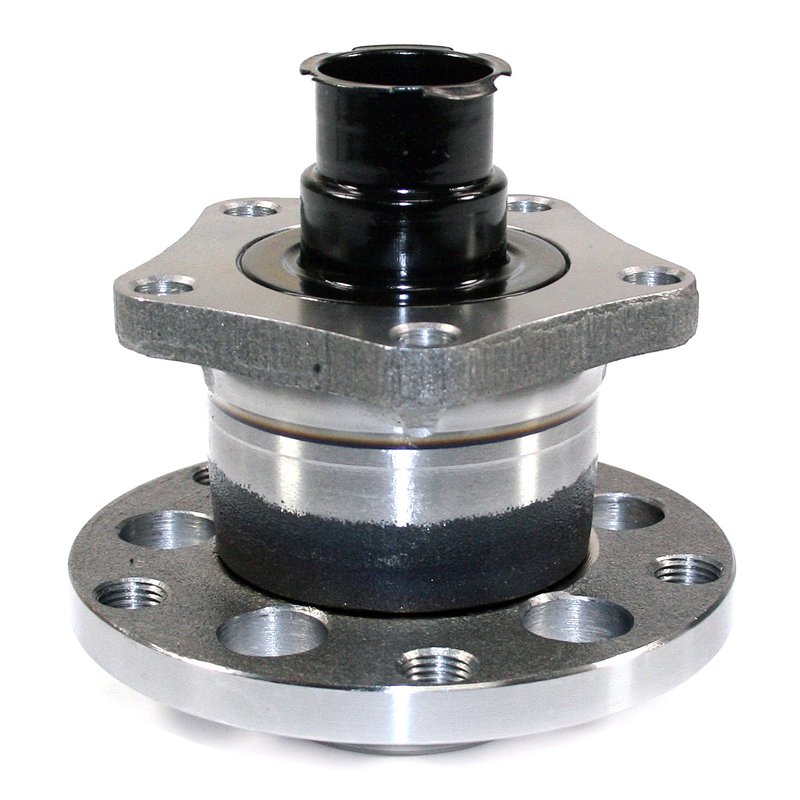

DuraGo 295-12187 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12187

The DuraGo 295-12187 wheel bearing and hub assembly is designed for precise fitment on select Audi and Volkswagen models, including the Audi A6 and Volkswagen Passat. This non-driven hub assembly offers reliable performance with specific dimensions tailored to ensure proper alignment and function.

• Flange bolt hole quantity: 5
• Wheel stud size: M14 x 1.5
• Wheel pilot diameter: 57 mm (2.24 inches)
• Brake pilot diameter: 68 mm (2.68 inches)
• Hub pilot diameter: 39 mm (1.54 inches)
• Flange diameter: 131 mm (5.16 inches)
• Flange offset: 70 mm (2.76 inches)
• Wheel stud quantity: 5 (studs not included)
• Flange bolt hole diameter: 10.7 mm (0.42 inches)
• Flange shape: Modified
• Anti-lock braking system (ABS): Not included

Detailed Product Description

This DuraGo wheel bearing and hub assembly (part number 295-12187) is engineered to meet the exact specifications required for non-driven hubs on Audi A6 and Volkswagen Passat vehicles. The assembly features a modified flange shape with five bolt holes and a flange diameter of 131 mm, ensuring a secure and stable connection to the vehicle’s driveline. The wheel pilot diameter of 57 mm and brake pilot diameter of 68 mm provide proper centering for wheels and brake components, reducing vibration and promoting even wear. The hub pilot diameter of 39 mm supports accurate hub alignment, critical for maintaining vehicle handling and safety.

Compatible Vehicles and Applications

• Compatible with Audi A6 models requiring a non-driven wheel bearing and hub assembly
• Compatible with Volkswagen Passat models with matching hub specifications
• Designed for vehicles without an anti-lock braking system (ABS)
• Suitable for applications where wheel studs are not included and must be sourced separately

Installation Notes and Tips

• Verify vehicle compatibility by matching part number 295-12187 and hub dimensions before installation
• Ensure flange bolt holes align correctly with the vehicle’s mounting points
• Use appropriate torque specifications for flange bolts and wheel studs (studs not included)
• Inspect surrounding components such as brake rotors and suspension parts during installation

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet industry standards for durability and performance. While specific warranty details are not provided, DuraGo products typically undergo rigorous quality control to ensure reliable operation on Audi and Volkswagen vehicles. For warranty information, refer to the product packaging or contact the manufacturer directly.
