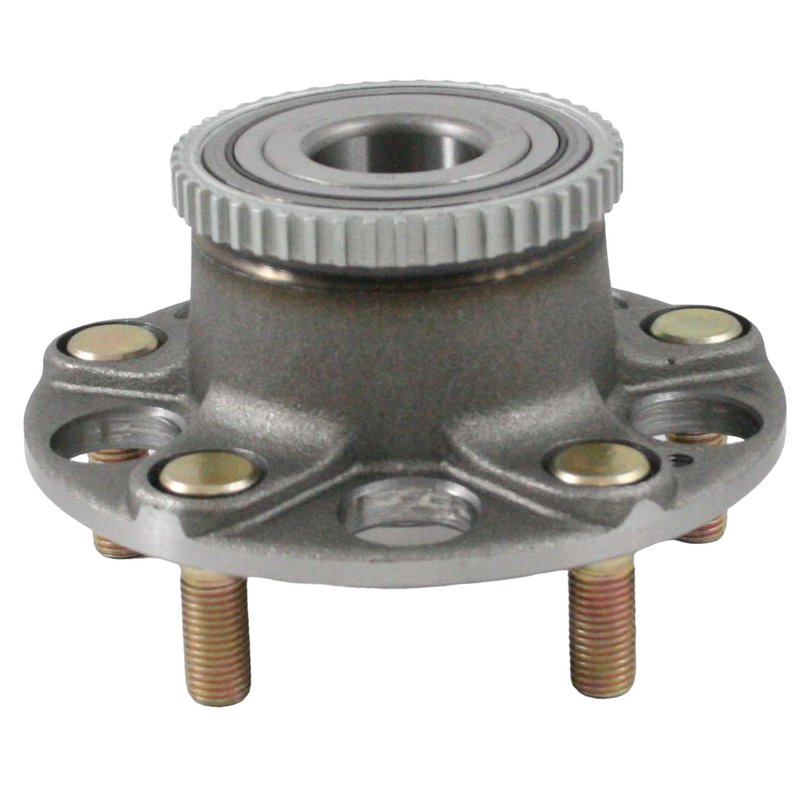

DuraGo 295-12188 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12188 |
|---|---|
| Position | Rear |
| 143 | 114.3 |
| 143 | 4.5 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.52 |
| Wheel Pilot Diameter | 64 |
| Brake Pilot Diameter | 2.52 |
| Brake Pilot Diameter | 64 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.18 |
| Hub Pilot Diameter | 80.8 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone ring |
| Flange Offset | 2.2 |
| Flange Offset | 56 |
| Flange Diameter | 139.5 |
| Flange Diameter | 5.49 |
| ABS Sensor Ring Teeth Quantity | 48 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Acura and Honda · 20 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Built with quality components to meet strict standards.
ABS tone ring. Integrated sensor ring supports anti-lock braking systems.
Cross-references MOOG Hub Assemblies 512188, SKF BR930383 and 42200SDAA51 for the same application. See all 8.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12188 wheel bearing and hub assembly is built for rear applications on select Acura TL and Honda Accord models. It combines the hub, bearing, and ABS tone ring into one service part to restore smooth wheel rotation and consistent wheel speed signal output.
Key Features
- Rear wheel bearing and hub assembly for non-driven applications
- Fits 2004-2008 Acura TL, rear
- Fits 2003-2007 Honda Accord, rear
- 5 wheel studs with M12 x 1.5 thread size
- ABS tone ring design with 48 sensor ring teeth
- 114.3 mm / 4.5 in bolt pattern
- 64 mm wheel pilot and brake pilot diameters
- 80.8 mm hub pilot diameter and 56 mm flange offset
Detailed Description
DuraGo 295-12188 is a rear wheel bearing and hub assembly engineered for select Honda Accord and Acura TL vehicles. It is a non-driven hub assembly with ABS support through a tone ring, making it a direct service solution for rear wheel-end repair where bearing wear, hub play, or ABS signal issues are present. DuraGo assembles each unit with quality components and tests every hub assembly to meet its manufacturing standards. This part cross-references SKF BR930383 for the same application.
Common Repair Uses
- Eliminates wheel bearing noise from the rear hub area
- Addresses wheel looseness or hub play at the rear axle
- Restores ABS wheel speed signal performance when the tone ring is worn
- Replaces a damaged or corroded rear hub on Acura TL and Honda Accord models
- Supports proper wheel mounting when stud or hub wear is present
Installation Notes and Tips
For 2004-2008 Acura TL rear applications, replace the axle nut and torque it to 134 ft-lbs (181 Nm). Confirm rear fitment by matching the vehicle year, model, and ABS configuration before installation. Inspect the mating surfaces, axle area, and brake components during service to help ensure proper hub seating and wheel-end operation.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that its hub assemblies are 100% tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Acura | TL | — | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2007 | Acura | TL | — | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2007 | Honda | Accord | LX | Rear | — |
| 2007 | Honda | Accord | EX | Rear | — |
| 2007 | Honda | Accord | Special Edition | Rear | — |
| 2007 | Honda | Accord | Value Package | Rear | — |
| 2007 | Honda | Accord | LX SE | Rear | — |
| 2006 | Acura | TL | — | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2006 | Honda | Accord | LX | Rear | — |
| 2006 | Honda | Accord | EX | Rear | — |
| 2006 | Honda | Accord | Value Package | Rear | — |
| 2006 | Honda | Accord | LX Special Edition | Rear | — |
| 2005 | Acura | TL | — | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2005 | Honda | Accord | SE | Rear | — |
| 2005 | Honda | Accord | LX | Rear | — |
| 2005 | Honda | Accord | EX | Rear | — |
| 2005 | Honda | Accord | DX | Rear | — |
| 2004 | Acura | TL | — | Rear | Replace Axle Nut; Torque to 134 ft-lbs (181 Nm) |
| 2004 | Honda | Accord | — | Rear | — |
| 2003 | Honda | Accord | — | Rear | — |
| No rows match your filter. | |||||
