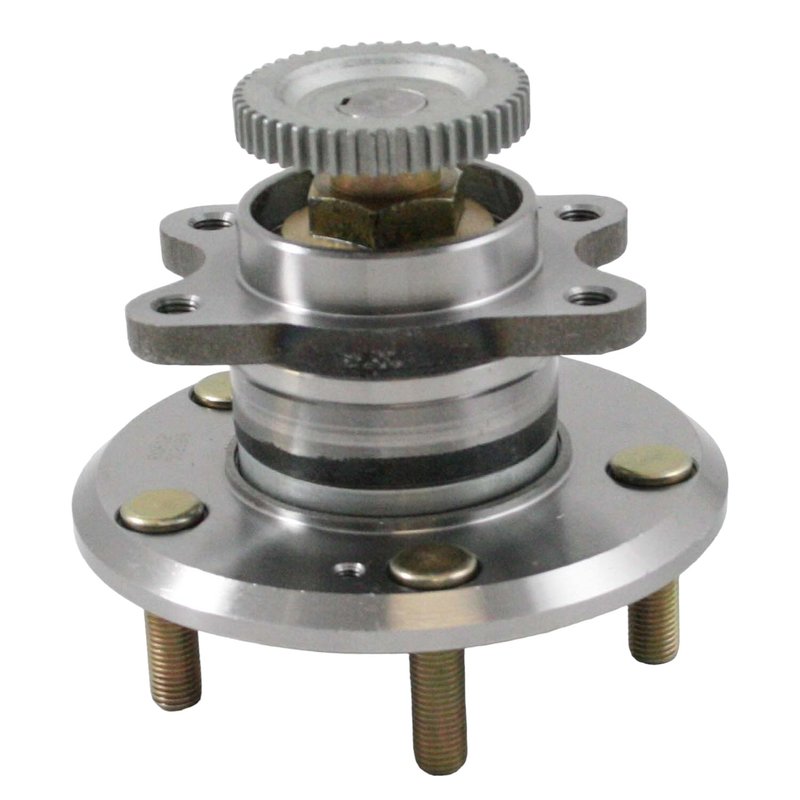

DuraGo 295-12189 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12189 |
|---|---|
| Position | Rear |
| 143 | 114.3 |
| 143 | 4.5 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.64 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 2.99 |
| Brake Pilot Diameter | 76 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.6 |
| Hub Pilot Diameter | 66 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone ring |
| Flange Offset | 2.32 |
| Flange Offset | 59 |
| Flange Diameter | 148 |
| Flange Diameter | 5.83 |
| ABS Sensor Ring Teeth Quantity | 47 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Flange Bolt Size | M10 x 1.25 |
| Fits | Hyundai · 5 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
100% tested. Each unit is checked to meet strict quality standards.
ABS tone ring. Integrated sensor ring supports anti-lock braking systems.
Cross-references Timken 512189, 0516114 and 7990115 for the same application. See all 9.
DuraGo 295-12189 Rear Hub Assembly
DuraGo 295-12189 is a rear wheel bearing and hub assembly for select Hyundai applications, including the 2001 Hyundai XG300 and 2002-2005 Hyundai XG350. Built as a non-driven hub assembly with ABS tone ring integration, it supports stable wheel rotation and accurate wheel speed signal output for the rear axle.
Key Features
- Rear wheel bearing and hub assembly for Hyundai XG300 and Hyundai XG350 applications
- Non-driven hub assembly construction
- ABS tone ring design with 47 sensor ring teeth
- Wheel stud size: M12 x 1.5
- Wheel studs included
- Flange bolt hole quantity: 4
- Flange bolt size: M10 x 1.25
- Hub pilot diameter: 66 mm
- Wheel pilot diameter: 67 mm
- Brake pilot diameter: 76 mm
Detailed Description
This DuraGo hub assembly is engineered for rear service on the Hyundai XG300 and Hyundai XG350, with fitment covering 2001 Hyundai XG300, rear, and 2002-2005 Hyundai XG350, rear. It uses quality components and is 100% tested during production to help ensure consistent fit and function. The integrated ABS tone ring supports wheel speed sensor operation, while the non-driven design matches the rear hub application for these vehicles. This part number, 295-12189, is also referenced in aftermarket cross listings for the same application, including Timken 512189.
What It Helps Address
- Wheel bearing noise from a worn rear hub assembly
- Excessive hub play or looseness at the rear wheel
- ABS warning light concerns related to tone ring signal issues
- Uneven wheel rotation caused by hub wear
- Reduced driveline efficiency from a deteriorated hub assembly
Installation Notes and Tips
Verify rear position, wheel stud size, flange bolt size, and ABS tone ring configuration before installation. Confirm the hub pilot, wheel pilot, and brake pilot dimensions match the vehicle specification. For Hyundai XG300 and Hyundai XG350 service, inspect the mating surfaces, fasteners, and wheel speed sensor components during replacement to help ensure proper seating and ABS operation.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is fully tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Hyundai | XG350 | Rear | — |
| 2004 | Hyundai | XG350 | Rear | — |
| 2003 | Hyundai | XG350 | Rear | — |
| 2002 | Hyundai | XG350 | Rear | — |
| 2001 | Hyundai | XG300 | Rear | — |
