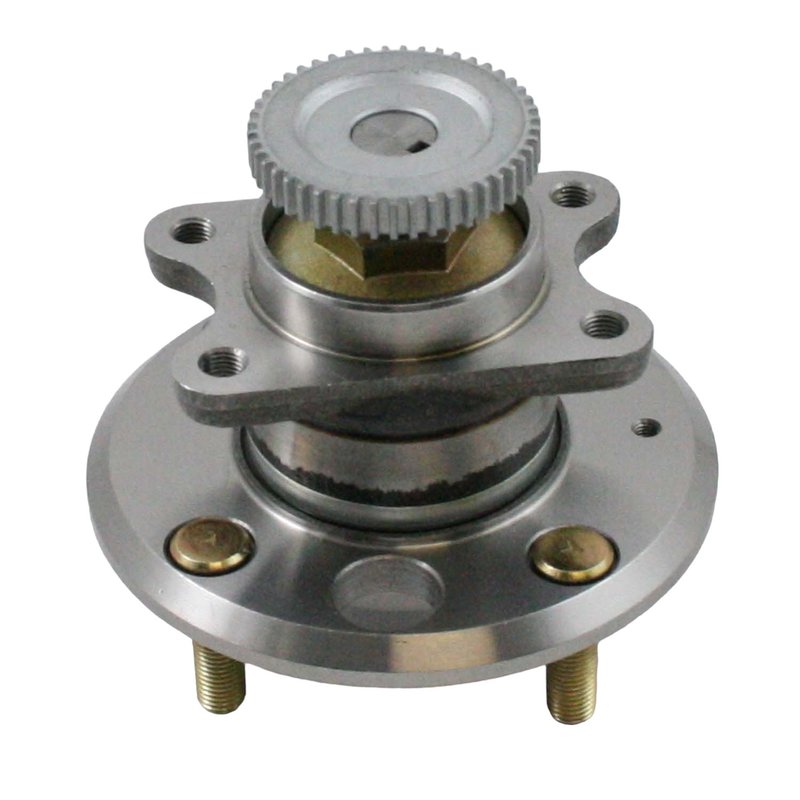

DuraGo 295-12190 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo Wheel Bearing and Hub Assembly 295-12190

The DuraGo 295-12190 wheel bearing and hub assembly is engineered for reliable performance in Hyundai and Kia vehicles, including the Magentis, Optima, and Sonata models. Designed as a non-driven hub assembly, it integrates an ABS tone ring to support anti-lock braking systems.

• Compatible with Hyundai Magentis, Kia Optima, and Hyundai Sonata
• Non-driven wheel bearing and hub assembly with ABS tone ring
• Flange bolt hole quantity: 4 with M10 x 1.25 flange bolt size
• Includes 4 wheel studs sized M12 x 1.5
• Flange shape: Rectangle with 148 mm (5.83 in) flange diameter
• ABS sensor ring with 47 teeth for accurate wheel speed monitoring
• Flange offset of 59 mm (2.32 in) for proper fitment
• Wheel pilot diameter options: 67 mm and 2.64 in; brake pilot diameter options: 76 mm and 2.99 in

Detailed Product Description

The DuraGo 295-12190 wheel bearing and hub assembly is designed to meet the specific requirements of Hyundai and Kia vehicles such as the Magentis, Optima, and Sonata. This assembly features a rectangular flange shape with four bolt holes, accommodating M10 x 1.25 flange bolts (not included). It comes with four M12 x 1.5 wheel studs pre-installed, ensuring secure wheel attachment. The hub pilot diameter measures 66 mm (2.6 in), while the wheel pilot diameter is 67 mm (2.64 in), providing precise alignment for the wheel and brake components.

Equipped with a 47-tooth ABS sensor ring, this assembly supports the vehicle's anti-lock braking system by delivering accurate wheel speed data. The flange offset of 59 mm (2.32 in) ensures proper positioning relative to the axle and suspension components. This non-driven hub assembly is engineered to maintain smooth wheel rotation and reduce vibration, contributing to vehicle stability and safety.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Hyundai Magentis, Kia Optima, and Hyundai Sonata
• Resolves wheel noise or roughness caused by bearing wear
• Addresses ABS warning lights triggered by faulty tone rings
• Corrects wheel alignment issues related to hub pilot diameter wear
• Eliminates vibration or wobbling due to loose or damaged wheel studs

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel studs align correctly with the vehicle hub. Since flange bolts are not included, retain or replace existing bolts as needed. Confirm ABS sensor ring compatibility with the vehicle’s ABS system to avoid sensor errors. Torque all fasteners to manufacturer specifications to maintain safety and performance.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet OEM standards for fit, form, and function. The 295-12190 part number undergoes rigorous quality control to ensure durability and reliable operation in Hyundai and Kia vehicles. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty covering defects in materials and workmanship.
