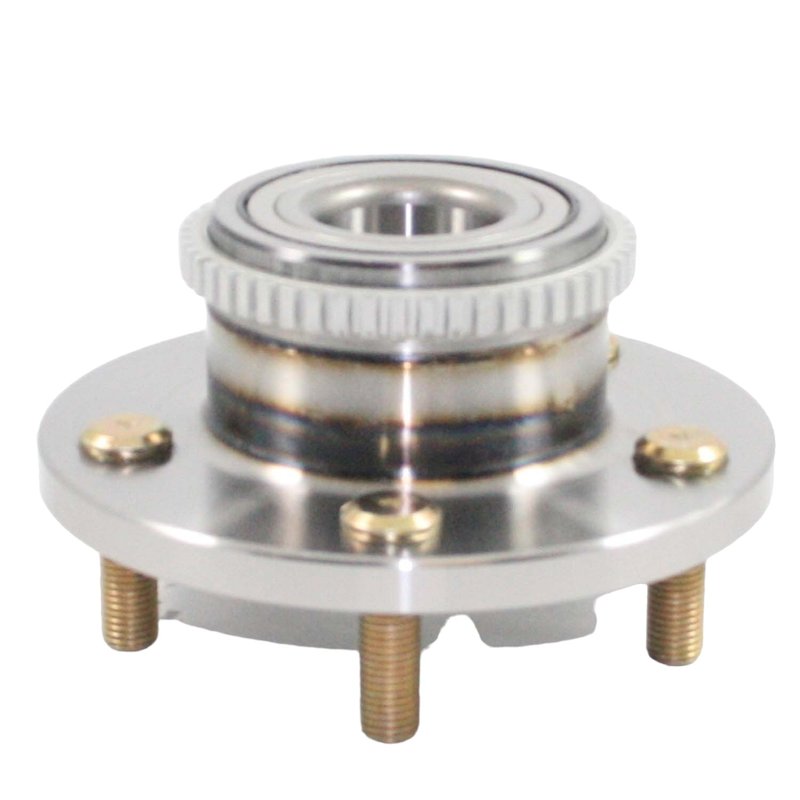

DuraGo 295-12196 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12196 Wheel Bearing and Hub Assembly

The DuraGo 295-12196 wheel bearing and hub assembly is designed specifically for Hyundai Santa Fe models. This non-driven hub assembly features an integrated tone ring for ABS compatibility, ensuring reliable performance and safety on the road.

• Compatible with Hyundai Santa Fe vehicles
• Wheel stud size: M12 x 1.5 with 5 studs included
• Flange diameter of 148 mm (5.83 inches) and flange offset of 56.3 mm (2.22 inches)
• ABS tone ring with 52 teeth for accurate anti-lock braking system function
• Wheel pilot diameter options: 67 mm (2.64 inches) and brake pilot diameter options: 76 mm (2.99 inches)
• Hub pilot diameter of 78 mm (3.07 inches)

Detailed Product Description

The DuraGo 295-12196 wheel bearing and hub assembly is engineered to meet the precise specifications required for Hyundai Santa Fe models. This assembly includes a 5-stud wheel configuration with M12 x 1.5 wheel stud size, providing secure mounting for the wheel. The flange diameter measures 148 mm (5.83 inches) with a flange offset of 56.3 mm (2.22 inches), ensuring proper fitment and alignment. The hub pilot diameter of 78 mm (3.07 inches) and brake pilot diameter of 76 mm (2.99 inches) contribute to accurate positioning and stability of the brake components.

Equipped with a tone ring featuring 52 teeth, this hub assembly supports the vehicle’s anti-lock braking system (ABS), allowing for precise wheel speed monitoring and enhanced braking control. The non-driven hub design is suitable for the Hyundai Santa Fe’s specific driveline configuration.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Hyundai Santa Fe
• Resolves wheel noise or roughness caused by bearing wear
• Addresses ABS warning lights triggered by faulty tone rings
• Corrects wheel vibration or looseness due to hub assembly failure
• Improves braking performance by restoring proper ABS sensor function

Installation Notes and Tips

When installing the DuraGo 295-12196 wheel bearing and hub assembly, ensure the wheel studs are torqued to manufacturer specifications to maintain wheel security. Verify the ABS tone ring is properly aligned with the sensor to avoid ABS system errors. It is recommended to inspect related components such as wheel bearings and brake rotors during installation for optimal performance.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for durability and fitment. The part number 295-12196 undergoes rigorous quality control to ensure reliable operation in Hyundai Santa Fe vehicles. Warranty coverage details should be confirmed with the product documentation or supplier.
