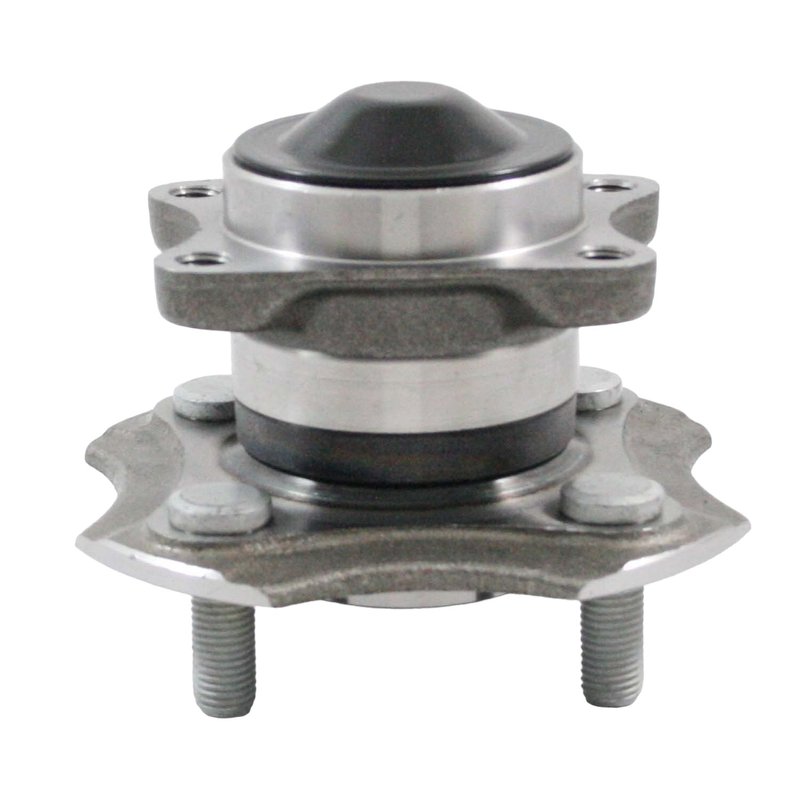

DuraGo 295-12210 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12210 Wheel Bearing and Hub Assembly

The DuraGo 295-12210 wheel bearing and hub assembly is designed specifically for Toyota Echo models, providing reliable performance and precise fitment. This non-driven hub assembly features a trapezoid flange shape and includes wheel studs for a secure wheel mounting solution.

• Compatible with Toyota Echo vehicles
• Non-driven wheel bearing and hub assembly
• Flange bolt hole quantity: 4 with M10 x 1.25 bolt size
• Includes 4 M12 x 1.5 wheel studs
• Flange diameter measures 135 mm (5.31 inches)
• Wheel pilot diameter of 54 mm (2.13 inches) and brake pilot diameter of 55 mm (2.17 inches)
• Hub pilot diameter of 67 mm (2.64 inches)
• Flange offset of 54.5 mm (2.15 inches)
• Flange shape: trapezoid
• Anti-lock braking system (ABS) not included

Detailed Product Description

The DuraGo 295-12210 wheel bearing and hub assembly is engineered to meet the specifications required for Toyota Echo vehicles. This assembly is a non-driven type, meaning it is designed for wheels that are not powered by the drivetrain. The trapezoid flange shape and 4-bolt flange bolt hole pattern ensure a precise and secure fit. The included wheel studs (M12 x 1.5) simplify wheel installation and replacement. Key dimensions such as the flange diameter (135 mm), flange offset (54.5 mm), and pilot diameters for the wheel, brake, and hub provide accurate alignment and compatibility with the vehicle’s braking and suspension components. This assembly does not include flange bolts and is not equipped with an anti-lock braking system sensor.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Echo
• Eliminates wheel noise caused by bearing wear
• Resolves wheel vibration or wobble issues
• Restores proper wheel alignment and stability
• Addresses uneven tire wear related to hub assembly failure

Installation Notes and Tips

When installing the DuraGo 295-12210 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Verify that the flange bolt holes align correctly with the vehicle hub. Use the included wheel studs for mounting the wheel, but note that flange bolts are not included and must be reused or replaced separately. Check all pilot diameters for proper seating and alignment. Since this assembly does not include ABS components, confirm compatibility with your vehicle’s braking system before installation.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet industry standards for durability and performance. While specific warranty details are not provided, DuraGo products typically undergo rigorous quality control to ensure reliable operation in Toyota Echo vehicles. For warranty information, refer to the product packaging or contact the manufacturer directly.
