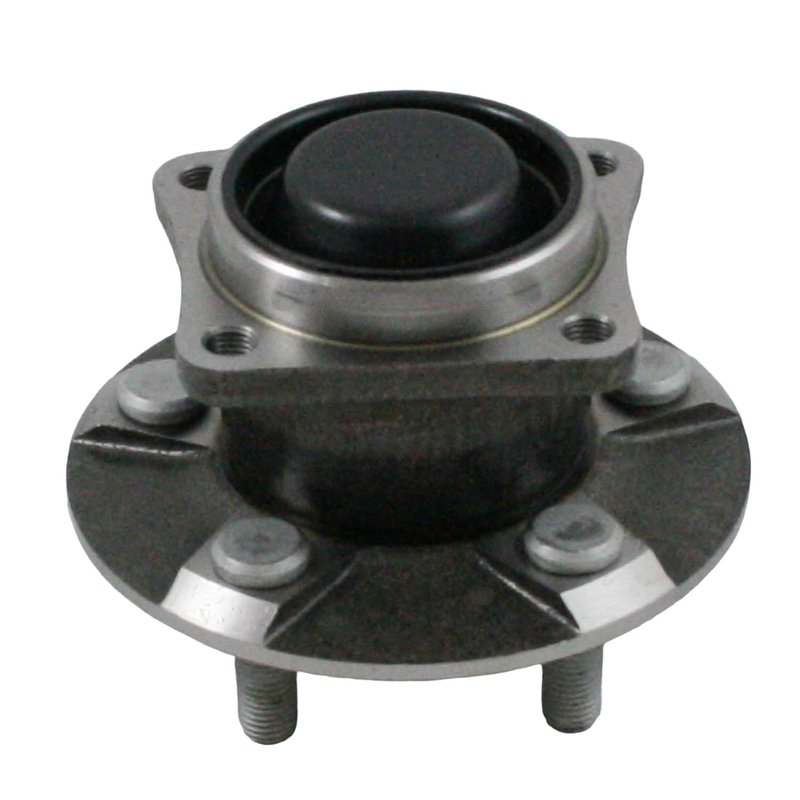

DuraGo 295-12216 Wheel Bearing and Hub Assembly - Rear

Reliable Wheel Bearing and Hub Assembly for Toyota and Pontiac Vehicles

The DuraGo 295-12216 wheel bearing and hub assembly is designed to provide dependable performance for select Toyota and Pontiac models. Engineered to meet OEM specifications, this non-driven hub assembly ensures proper fit and function for vehicles like the Toyota Corolla, Celica, Matrix, and Pontiac Vibe.

• Compatible with Toyota Corolla, Celica, Matrix, and Pontiac Vibe
• Non-driven wheel bearing and hub assembly
• Includes 5 M12 x 1.5 wheel studs for secure wheel mounting
• Modified flange shape with 4 M10 x 1.25 flange bolt holes
• Flange diameter of 135 mm (5.31 inches) and flange offset of 54.5 mm (2.15 inches)
• Wheel pilot diameter of 54 mm (2.13 inches) and brake pilot diameter of 55 mm (2.17 inches)
• Hub pilot diameter of 74 mm (2.91 inches)

Detailed Product Description

The DuraGo 295-12216 wheel bearing and hub assembly is a precision-engineered component designed for non-driven axle applications. It features a modified flange shape with four flange bolt holes sized M10 x 1.25, providing a secure connection to the vehicle’s hub. The assembly includes five M12 x 1.5 wheel studs, ensuring proper wheel mounting and alignment. The flange diameter measures 135 mm (5.31 inches), with a flange offset of 54.5 mm (2.15 inches), matching the exact specifications required for the Toyota Corolla, Celica, Matrix, and Pontiac Vibe models. The wheel pilot diameter is 54 mm (2.13 inches), and the brake pilot diameter is 55 mm (2.17 inches), which helps maintain proper brake rotor alignment and wheel balance. The hub pilot diameter of 74 mm (2.91 inches) ensures a precise fit on the axle hub, reducing vibration and enhancing driving stability.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Toyota Corolla, Celica, Matrix, and Pontiac Vibe
• Eliminates wheel noise caused by bearing wear or failure
• Restores proper wheel alignment and reduces vibration
• Addresses issues with uneven tire wear due to faulty hub assemblies
• Improves braking performance by maintaining correct brake rotor positioning

Installation Notes and Tips

When installing the DuraGo 295-12216 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the old hub assembly carefully to avoid damage to surrounding components. Verify that the flange bolt holes and wheel studs align correctly with the vehicle’s mounting points. Use a calibrated torque wrench to tighten flange bolts and wheel studs to manufacturer specifications. This assembly does not include flange bolts, so retain or replace existing hardware as needed. Proper installation will help maintain vehicle safety and performance.

Quality Assurance and Warranty

DuraGo manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for durability and fitment. While specific warranty details are not provided, DuraGo products typically undergo rigorous quality control to ensure reliable operation. For peace of mind, consult the product documentation or contact the distributor for warranty information related to the 295-12216 part number.
