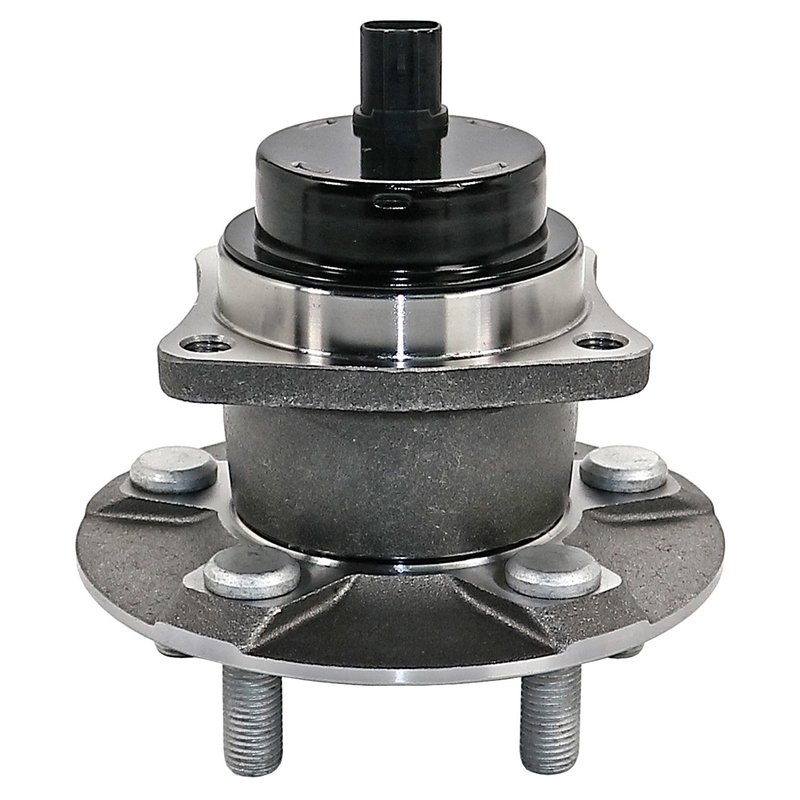

DuraGo 295-12217 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12217 Wheel Bearing and Hub Assembly

The DuraGo 295-12217 wheel bearing and hub assembly is engineered for reliable performance in select Toyota, Pontiac, and Scion vehicles. Designed as a non-driven hub assembly, it supports smooth wheel rotation and integrates an ABS sensor for enhanced braking control.

• Compatible with Toyota Corolla, Celica, Matrix, Prius, Pontiac Vibe, and Scion tC models
• Includes 5 M12 x 1.5 wheel studs for secure wheel mounting
• Features a modified flange shape with 4 M10 x 1.25 flange bolt holes
• Equipped with an ABS sensor connector for anti-lock braking system functionality
• Hub pilot diameter measures 2.91 inches (74 mm) ensuring precise fitment
• Flange diameter of 5.31 inches (135 mm) with a flange offset of 2.15 inches (54.5 mm)

Technical Specifications and Features

This wheel bearing and hub assembly from DuraGo is designed with a flange bolt hole quantity of four and a wheel stud quantity of five, each stud sized M12 x 1.5. The assembly includes wheel studs but does not include flange bolts. The flange shape is modified to match specific vehicle requirements, and the flange offset is precisely 2.15 inches (54.5 mm) to maintain proper wheel alignment. Brake pilot diameters are 2.17 inches (55 mm), and wheel pilot diameters are 2.13 inches (54 mm), ensuring compatibility with the brake and wheel components of the specified vehicles.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Toyota Corolla, Celica, Matrix, Prius, Pontiac Vibe, and Scion tC
• Restores proper wheel alignment and reduces wheel vibration
• Supports ABS sensor integration to maintain anti-lock braking system performance
• Addresses wheel stud wear or damage by including new studs
• Eliminates noise and roughness caused by failing wheel bearings

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the flange bolt holes and wheel stud sizes match the vehicle specifications. Since flange bolts are not included, retain or replace existing bolts as needed. Confirm ABS sensor connector compatibility and proper routing during installation to maintain sensor function. Torque all fasteners to manufacturer specifications to ensure safety and performance.

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet or exceed OEM standards for durability and fitment. This part number 295-12217 undergoes rigorous quality control to ensure reliable operation in compatible Toyota, Pontiac, and Scion models. Warranty coverage details should be confirmed with the original product documentation or supplier.
