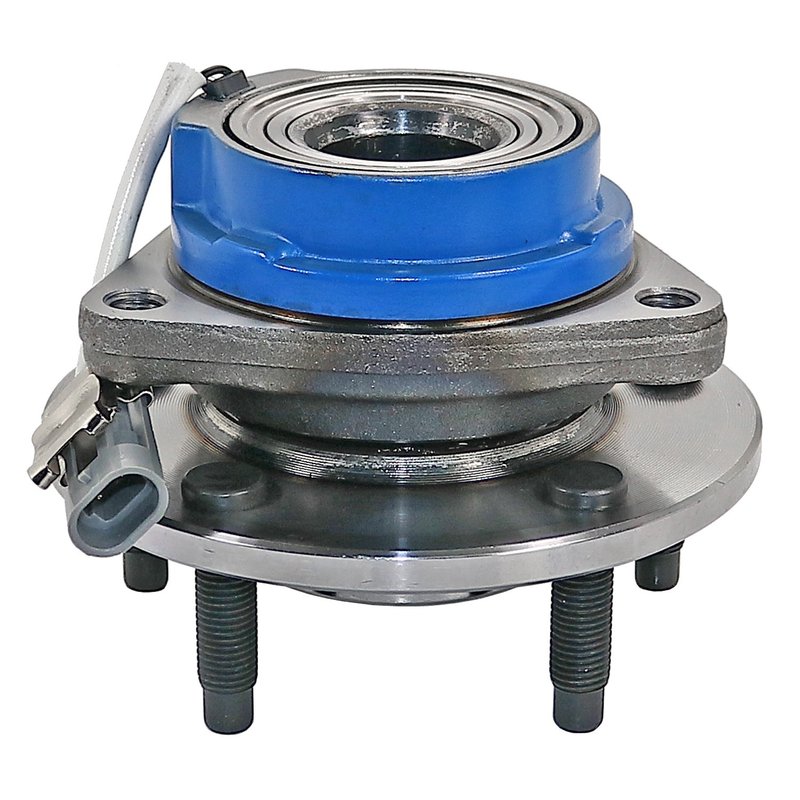

DuraGo 295-12223 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | DuraGo 295-12223 |
|---|---|
| Position | Rear and Front |
| Spline Quantity | 30 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.59 |
| Hub Pilot Diameter | 91.3 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Cadillac · 32 vehicles |
Premium hub assembly. Reduces friction and helps improve fuel economy.
ABS sensor included. Built with a sensor-type anti-lock braking system.
100% tested. Each hub unit meets strict quality standards.
Cross-references MOOG Hub Assemblies 512223, 7300386 and 25693148 for the same application. See all 6.
DuraGo 295-12223 Wheel Bearing Hub Assembly
The DuraGo 295-12223 wheel bearing and hub assembly is a driven front or rear hub application for select Cadillac STS and Cadillac CTS models. Built with premium components and 100% tested for quality control, it is engineered to reduce hub friction and support smoother wheel rotation.
Key Features
- Driven wheel bearing and hub assembly
- ABS sensor type with sensor cord included
- 5 wheel studs with M12 x 1.5 wheel stud size
- 30 spline quantity
- Triangle flange shape with 3 flange bolt holes
- Hub pilot diameter: 91.3 mm (3.59 in.)
- Wheel pilot diameter: 70.1 mm (2.76 in.)
- Brake pilot diameter: 70.6 mm (2.78 in.)
- Flange diameter: 145.5 mm (5.73 in.)
- Flange offset: 42.1 mm (1.66 in.)
Detailed Description
Part number 295-12223 is a DuraGo premium hub assembly built for select Cadillac CTS and Cadillac STS fitments. It is designed as a driven hub assembly with ABS sensor integration, making it a direct replacement option for vehicles that rely on wheel speed signal input at the hub. DuraGo manufactures these assemblies using quality components and tests each unit to meet its production standards. This part cross-references MOOG 512223 for the same application.
Compatible With 2003-2007 Cadillac CTS, rear; 2005-2009 Cadillac STS, front; 2005-2011 Cadillac STS, rear 5 stud; and 2010-2011 Cadillac STS, front except heavy duty package. Searchers looking for a Cadillac CTS rear wheel bearing hub assembly or a Cadillac STS front hub assembly will find this part number 295-12223 listed for those applications.
What It Is Used For
- Replacing a worn or noisy wheel bearing and hub assembly
- Restoring proper wheel support and rotation
- Addressing ABS warning light concerns related to hub-mounted sensing
- Correcting wheel play, vibration, or rough hub operation
- Supporting proper fitment on driven hub applications for Cadillac CTS and Cadillac STS
Installation Notes and Tips
Verify the vehicle position, stud pattern, ABS sensor connection, and hub dimensions before installation. Confirm whether the application is front or rear and check the 2010-2011 Cadillac STS front note for the exception on heavy duty package vehicles. Inspect related suspension and brake components during replacement to help ensure proper hub operation after installation.
Quality Assurance
DuraGo states that its hub assemblies are manufactured to industry-leading quality standards and tested before release. The brand also notes compliance with ISO/TS 16949:2002 manufacturing standards.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2011 | Cadillac | STS | — | AWD | — | — | Front | Except Heavy Duty Package |
| 2011 | Cadillac | STS | — | — | — | — | Rear | 5 Stud |
| 2010 | Cadillac | STS | — | AWD | — | — | Front | Except Heavy Duty Package |
| 2010 | Cadillac | STS | — | — | — | — | Rear | 5 Stud |
| 2009 | Cadillac | STS | — | AWD | — | — | Front | — |
| 2009 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 5 Stud |
| 2009 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 5 Stud |
| 2009 | Cadillac | STS | Platinum | — | 4.6L | V8 | Rear | 5 Stud |
| 2009 | Cadillac | STS | Platinum | — | 3.6L | V6 | Rear | 5 Stud |
| 2008 | Cadillac | STS | — | AWD | — | — | Front | — |
| 2008 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 5 Stud |
| 2008 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 5 Stud |
| 2008 | Cadillac | STS | Platinum | — | 4.6L | V8 | Rear | 5 Stud |
| 2008 | Cadillac | STS | Platinum | — | 3.6L | V6 | Rear | 5 Stud |
| 2007 | Cadillac | CTS | Base | — | 2.8L | V6 | Rear | — |
| 2007 | Cadillac | CTS | Base | — | 3.6L | V6 | Rear | — |
| 2007 | Cadillac | STS | — | AWD | — | — | Front | — |
| 2007 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 5 Stud |
| 2007 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 5 Stud |
| 2006 | Cadillac | CTS | Base | — | 2.8L | V6 | Rear | — |
| 2006 | Cadillac | CTS | Base | — | 3.6L | V6 | Rear | — |
| 2006 | Cadillac | STS | — | AWD | — | — | Front | — |
| 2006 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 5 Stud |
| 2006 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 5 Stud |
| 2005 | Cadillac | CTS | Base | — | 2.8L | V6 | Rear | — |
| 2005 | Cadillac | CTS | Base | — | 3.6L | V6 | Rear | — |
| 2005 | Cadillac | STS | — | AWD | — | — | Front | — |
| 2005 | Cadillac | STS | — | AWD | — | — | Rear | — |
| 2005 | Cadillac | STS | — | RWD | — | — | Rear | 5 Stud |
| 2004 | Cadillac | CTS | Base | — | 3.2L | V6 | Rear | — |
| 2004 | Cadillac | CTS | Base | — | 3.6L | V6 | Rear | — |
| 2003 | Cadillac | CTS | — | — | — | — | Rear | — |
