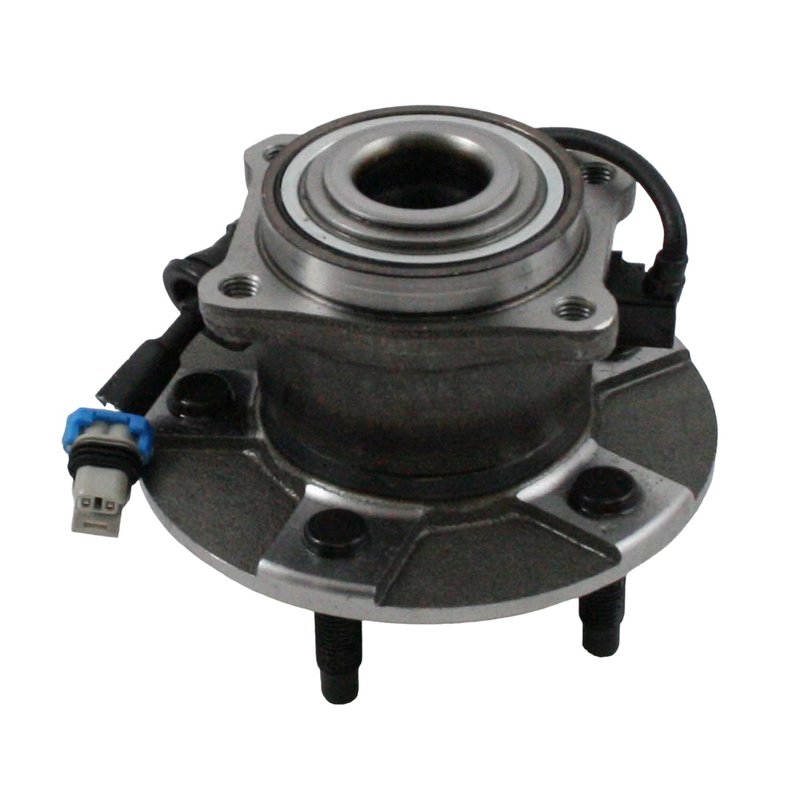

DuraGo 295-12229 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12229 |
|---|---|
| Position | Rear |
| Spline Quantity | 26 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.11 |
| Hub Pilot Diameter | 79 |
| Flange Shape | Rectangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 2.56 |
| Flange Offset | 65 |
| Flange Diameter | 150 |
| Flange Diameter | 5.91 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M10 x 1.5 |
| Fits | Chevrolet, Pontiac, and Saturn · 9 vehicles |
OE-style hub assembly. Driven design with ABS sensor compatibility for dependable braking support.
Wheel studs included. Ready for a more complete hub replacement right out of the box.
100% tested. Built to meet DuraGo's industry-standard quality requirements.
Cross-references MOOG Hub Assemblies 512229, SKF BR930327 and 7300129 for the same application. See all 8.
DuraGo 295-12229 Rear Wheel Hub Assembly
DuraGo 295-12229 is a rear wheel bearing and hub assembly for select Saturn Vue, Chevrolet Equinox, and Pontiac Torrent applications. It is built with ABS sensor integration and driven-hub construction to support stable wheel rotation, consistent braking input, and proper hub-to-wheel fitment.
- Rear wheel bearing and hub assembly for driven applications
- ABS sensor type with ABS sensor cord included
- 5 wheel studs with M12 x 1.5 wheel stud size
- 26 spline quantity
- Hub pilot diameter: 79 mm; wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm
- Flange diameter: 150 mm with rectangular flange shape
- Flange offset: 65 mm
- Connector quantity: 1
Fitment and Application Details
Compatible with rear applications on 2002-2007 Saturn Vue, 2005-2006 Chevrolet Equinox, and 2006 Pontiac Torrent. This part number, 295-12229, is a direct-fit style replacement for vehicles that use an ABS-equipped driven rear hub assembly. This part cross-references MOOG Hub Assemblies (e.g., 512229) and SKF (e.g., BR930327) for the same application.
What This Hub Assembly Helps Address
- Wheel bearing noise from a worn rear hub
- Excessive wheel play or looseness at the hub
- ABS warning light concerns related to the hub sensor circuit
- Uneven wheel rotation caused by hub wear
- Vibration or roughness from a deteriorated bearing assembly
Installation Notes and Tips
Verify rear fitment, ABS sensor style, spline count, and flange dimensions before installation. Confirm the hub pilot, wheel pilot, and brake pilot measurements match the original part on the vehicle. For best results, inspect related suspension and brake components during replacement and follow the vehicle manufacturer’s service procedure.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and tests each unit before release. The brand states that its hub assemblies are built with high-quality components and meet ISO/TS 16949:2002 standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Saturn | Vue | Rear | — |
| 2006 | Chevrolet | Equinox | Rear | — |
| 2006 | Pontiac | Torrent | Rear | — |
| 2006 | Saturn | Vue | Rear | — |
| 2005 | Chevrolet | Equinox | Rear | — |
| 2005 | Saturn | Vue | Rear | — |
| 2004 | Saturn | Vue | Rear | — |
| 2003 | Saturn | Vue | Rear | — |
| 2002 | Saturn | Vue | Rear | — |
