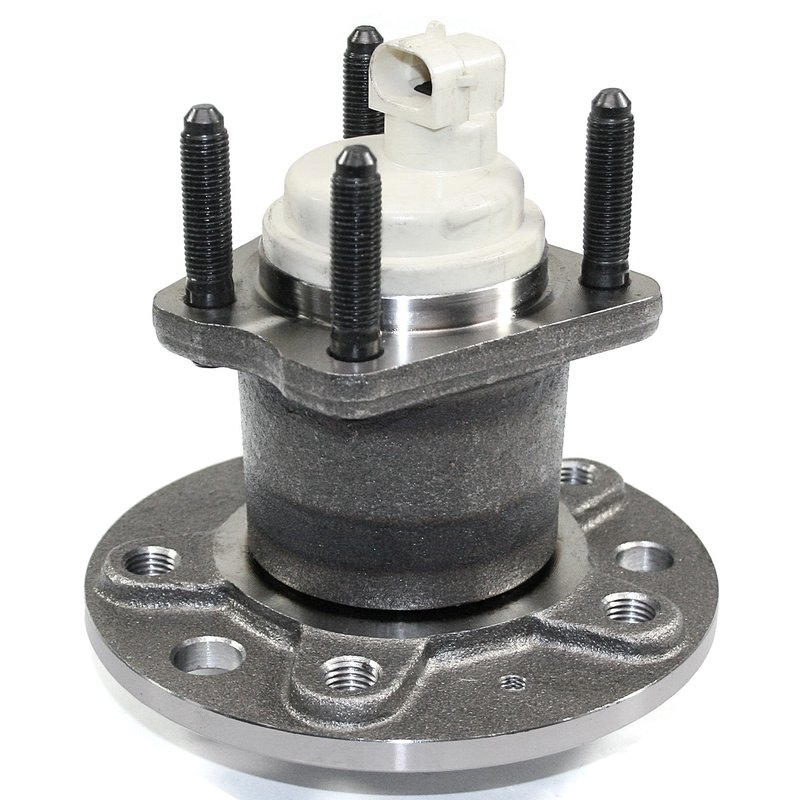

DuraGo 295-12238 Wheel Bearing and Hub Assembly - Rear

Overview of DuraGo 295-12238 Wheel Bearing and Hub Assembly

The DuraGo 295-12238 wheel bearing and hub assembly is engineered for reliable performance in Saturn vehicles, including models L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, and LW300. Designed as a non-driven hub assembly, it integrates an ABS sensor to support anti-lock braking systems.

• Compatible with multiple Saturn models: L100, L200, L300, LS series, and LW series
• Non-driven wheel bearing and hub assembly with ABS sensor type
• Flange bolt hole quantity: 4 with M10 x 1.25 flange bolt size
• Wheel stud size M12 x 1.5, with 5 wheel studs (studs not included)
• Flange diameter of 140 mm (5.51 inches) and trapezoid flange shape
• Wheel pilot diameter of 65 mm and brake pilot diameter of 65.5 mm
• Hub pilot diameter of 60 mm for precise fitment
• Flange offset of 78.4 mm (3.09 inches) for proper alignment
• Includes flange bolts but no ABS sensor cord

Detailed Product Description

The DuraGo 295-12238 wheel bearing and hub assembly is designed to meet the specific requirements of Saturn vehicles, ensuring proper fit and function. This non-driven hub assembly features a trapezoid flange shape with four bolt holes sized M10 x 1.25, providing secure mounting. The wheel stud size is M12 x 1.5, with five studs per assembly, although the studs themselves are not included. The assembly supports an anti-lock braking system with an integrated sensor, enhancing vehicle safety and braking performance.

Precision dimensions such as a 65 mm wheel pilot diameter, 65.5 mm brake pilot diameter, and 60 mm hub pilot diameter ensure accurate alignment and smooth operation. The flange offset of 78.4 mm (3.09 inches) is engineered to maintain proper wheel positioning relative to the suspension and brake components.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Saturn L100, L200, L300, LS, and LW models
• Resolves wheel noise or vibration caused by bearing wear
• Addresses ABS sensor faults related to hub assembly issues
• Corrects wheel alignment problems due to flange or pilot diameter wear
• Improves braking performance by maintaining proper ABS sensor function

Installation Notes and Tips

• Verify vehicle compatibility with Saturn L100, L200, L300, LS, LS1, LS2, LW1, LW2, LW200, or LW300 before installation
• Ensure flange bolts are torqued to manufacturer specifications; flange bolts are included with this assembly
• Wheel studs are not included; inspect existing studs for wear and replace if necessary
• Handle ABS sensor wiring carefully; sensor cord is not included and may need to be reused or replaced separately
• Check hub pilot and flange dimensions to confirm proper fitment during installation

Quality Assurance and Warranty

DuraGo wheel bearing and hub assemblies are manufactured to meet industry standards for durability and performance. The 295-12238 part number undergoes rigorous quality control to ensure reliable operation in Saturn vehicles. While specific warranty details are not provided here, DuraGo products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
