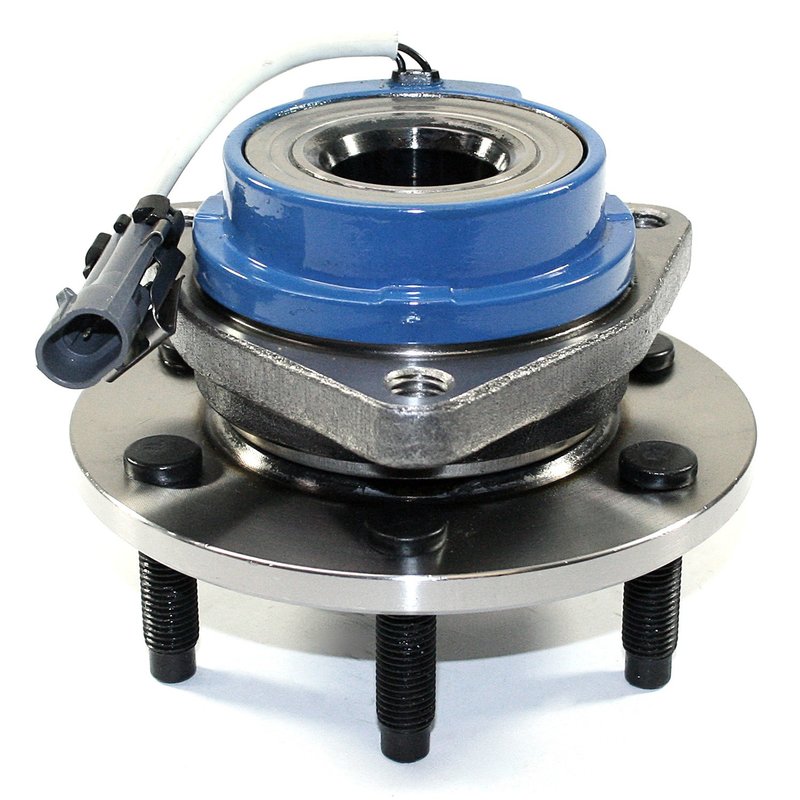

DuraGo 295-12243 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | DuraGo 295-12243 |
|---|---|
| Position | Rear and Front |
| Spline Quantity | 30 |
| 143 | 115 |
| 143 | 4.53 |
| Flange Bolt Hole Quantity | 3 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.76 |
| Wheel Pilot Diameter | 70.1 |
| Brake Pilot Diameter | 2.78 |
| Brake Pilot Diameter | 70.6 |
| Wheel Stud Quantity | 6 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.6 |
| Hub Pilot Diameter | 91.4 |
| Flange Shape | Triangle |
| Flange Bolts Included | No |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Connector Quantity | 1 |
| Flange Offset | 1.66 |
| Flange Offset | 42.1 |
| Flange Diameter | 145.5 |
| Flange Diameter | 5.73 |
| ABS Sensor Cord Included | Yes |
| Driven Or Non-Driven Type Hub Assembly | Driven |
| Flange Bolt Size | M12 x 1.75 |
| Fits | Cadillac · 33 vehicles |
OE-style replacement. Restores smooth hub operation and helps reduce friction.
ABS sensor included. Built with sensor-based anti-lock braking compatibility.
Wheel studs included. Ready for assembly with studs already installed.
Cross-references MOOG Hub Assemblies 512243, SKF BR930368 and SKF BR930458 for the same application. See all 13.
DuraGo 295-12243 Wheel Bearing Hub Assembly
DuraGo 295-12243 is a driven wheel bearing and hub assembly built for rear and front applications on select Cadillac models. It combines the hub, bearing, ABS sensor, and wheel studs into one service part to restore smooth wheel rotation and consistent wheel speed signal performance.
Key Features
- Driven wheel bearing and hub assembly for select Cadillac STS, SRX, and CTS applications
- ABS sensor type design with ABS sensor cord included
- 30-spline hub configuration
- 6 wheel studs with M12 x 1.5 wheel stud size
- Triangle flange shape with 145.5 mm flange diameter
- Hub pilot diameter: 91.4 mm; wheel pilot diameter: 70.1 mm
- Brake pilot diameter: 70.6 mm and flange offset: 42.1 mm
- Manufactured to ISO/TS 16949:2002 quality standards
Detailed Description
This DuraGo hub assembly is engineered for vehicles that require a driven hub with ABS sensor integration. It is a direct service replacement for applications such as 2004-2007 Cadillac CTS, rear; 2004-2009 Cadillac SRX, rear; 2005-2011 Cadillac STS, rear; and 2006-2009 Cadillac STS, front or rear. The part number 295-12243 is also referenced in aftermarket cross listings for the same application, including MOOG 512243.
DuraGo builds its hub assemblies with quality components and tests each unit before release. Replacing a worn hub assembly can reduce rotational friction and help maintain proper wheel bearing operation and fuel economy. The design includes one ABS sensor connector and a sensor-style anti-lock braking system interface for vehicles equipped with ABS.
What This Part Helps Address
- Wheel bearing noise from a worn hub assembly
- Excessive hub play or looseness at the wheel end
- ABS warning light concerns related to hub-mounted sensor issues
- Uneven wheel rotation caused by bearing wear
- Vibration or roughness from a deteriorated hub unit
Installation Notes and Tips
Verify vehicle position and driveline configuration before ordering, since this part is listed for both front and rear Cadillac STS applications and rear Cadillac SRX and CTS applications. Confirm spline count, flange dimensions, and ABS sensor style against the original hub assembly before installation. Clean the mounting surface and inspect related suspension and brake components for wear while the hub is removed.
Quality Assurance
DuraGo states that its hub assemblies are 100% tested and manufactured to industry-leading quality standards that meet ISO/TS 16949:2002. The part number 295-12243 is built using quality components for consistent fit and function in the listed Cadillac applications.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2011 | Cadillac | STS | — | — | — | — | Rear | 6 Stud |
| 2010 | Cadillac | STS | — | — | — | — | Rear | 6 Stud |
| 2009 | Cadillac | SRX | — | — | — | — | Rear | — |
| 2009 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 6 Stud |
| 2009 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 6 Stud |
| 2009 | Cadillac | STS | Platinum | — | 4.6L | V8 | Rear | 6 Stud |
| 2009 | Cadillac | STS | Platinum | — | 3.6L | V6 | Rear | 6 Stud |
| 2009 | Cadillac | STS | V | RWD | — | — | Front | — |
| 2009 | Cadillac | STS | V | — | 4.4L | V8 | Rear | — |
| 2008 | Cadillac | SRX | — | — | — | — | Rear | — |
| 2008 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 6 Stud |
| 2008 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 6 Stud |
| 2008 | Cadillac | STS | Platinum | — | 4.6L | V8 | Rear | 6 Stud |
| 2008 | Cadillac | STS | Platinum | — | 3.6L | V6 | Rear | 6 Stud |
| 2008 | Cadillac | STS | V | RWD | — | — | Front | — |
| 2008 | Cadillac | STS | V | — | 4.4L | V8 | Rear | — |
| 2007 | Cadillac | CTS | V | — | 6.0L | V8 | Rear | — |
| 2007 | Cadillac | SRX | — | — | — | — | Rear | — |
| 2007 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 6 Stud |
| 2007 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 6 Stud |
| 2007 | Cadillac | STS | V | RWD | — | — | Front | — |
| 2007 | Cadillac | STS | V | — | 4.4L | V8 | Rear | — |
| 2006 | Cadillac | CTS | V | — | 6.0L | V8 | Rear | — |
| 2006 | Cadillac | SRX | — | — | — | — | Rear | — |
| 2006 | Cadillac | STS | Base | — | 4.6L | V8 | Rear | 6 Stud |
| 2006 | Cadillac | STS | Base | — | 3.6L | V6 | Rear | 6 Stud |
| 2006 | Cadillac | STS | V | RWD | — | — | Front | — |
| 2006 | Cadillac | STS | V | — | 4.4L | V8 | Rear | — |
| 2005 | Cadillac | CTS | V | — | 5.7L | V8 | Rear | — |
| 2005 | Cadillac | SRX | — | — | — | — | Rear | — |
| 2005 | Cadillac | STS | — | RWD | — | — | Rear | 6 Stud |
| 2004 | Cadillac | CTS | V | — | 5.7L | V8 | Rear | — |
| 2004 | Cadillac | SRX | — | — | — | — | Rear | — |
