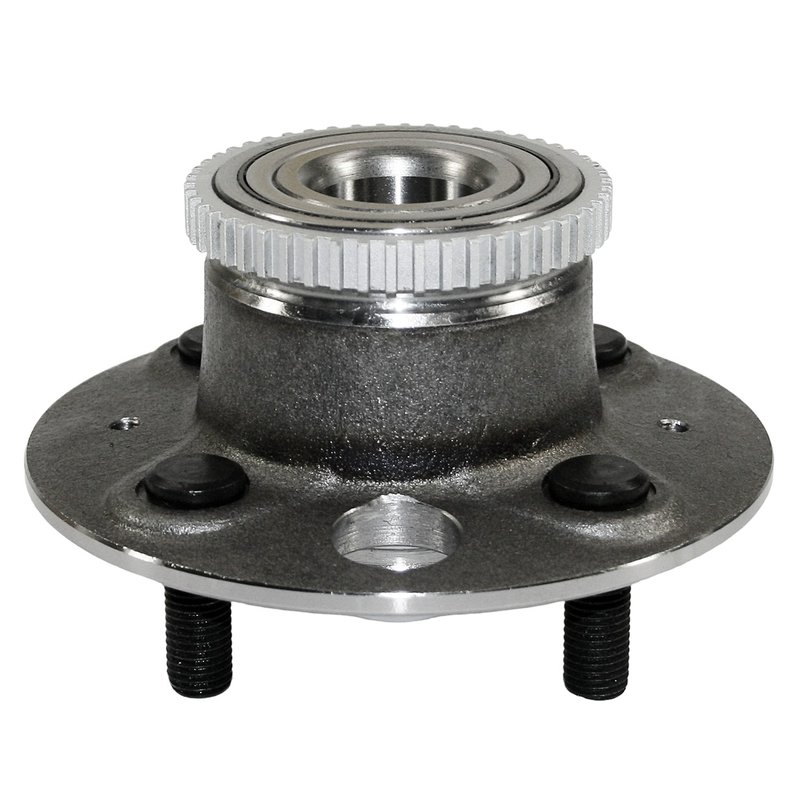

DuraGo 295-12258 Wheel Bearing and Hub Assembly - Rear
| Brand | DuraGo 295-12258 |
|---|---|
| Position | Rear |
| 143 | 100 |
| 143 | 3.94 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.2 |
| Wheel Pilot Diameter | 56 |
| Brake Pilot Diameter | 2.4 |
| Brake Pilot Diameter | 61 |
| Wheel Stud Quantity | 4 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 2.6 |
| Hub Pilot Diameter | 66 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone ring |
| Flange Offset | 2.2 |
| Flange Offset | 56 |
| Flange Diameter | 139 |
| Flange Diameter | 5.47 |
| ABS Sensor Ring Teeth Quantity | 50 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Honda · 2 vehicles |
OE-style hub assembly. Non-driven design with ABS tone ring for dependable wheel-speed sensing.
100% tested. Each hub unit is checked to meet strict quality standards.
Wheel studs included. Ready for a complete hub assembly replacement.
Cross-references MOOG Hub Assemblies 512258, SKF BR930381 and 0516141 for the same application. See all 8.
DuraGo Rear Wheel Bearing Hub Assembly
The DuraGo 295-12258 wheel bearing and hub assembly is built for rear applications on select 2002-2003 Honda Civic models. It combines the hub and bearing into one service unit to help restore smooth wheel rotation, reduce friction, and support consistent ABS operation.
For drivers searching for a rear wheel bearing hub assembly for 2002-2003 Honda Civic, this DuraGo unit is engineered to match the vehicle’s hub dimensions and sensor-ring requirements.
Key Features
- Fits 2002-2003 Honda Civic, rear
- Part number 295-12258
- Non-driven hub assembly for rear service
- ABS tone ring design with 50 sensor ring teeth
- Wheel stud size: M12 x 1.5
- Wheel studs included
- Wheel stud quantity: 4
- Flange diameter: 139 mm (5.47 in)
- Hub pilot diameter: 66 mm (2.6 in)
- Wheel pilot diameter: 56 mm (2.2 in)
- Brake pilot diameter: 61 mm (2.4 in)
Detailed Description
DuraGo 295-12258 is a rear wheel bearing and hub assembly for 2002-2003 Honda Civic models. It is a non-driven hub assembly with ABS capability and a tone ring, making it a direct-fit service part for vehicles equipped with anti-lock braking systems. DuraGo manufactures its hub assemblies using quality components and tests each unit to meet its production standards. This part cross-references MOOG Hub Assemblies 512258 and SKF BR930381 for the same application.
Common Repair Symptoms
- Wheel noise or humming from the rear of the vehicle
- Excessive wheel play or looseness at the hub
- ABS warning light related to hub sensor-ring issues
- Uneven wheel rotation or rough bearing feel
- Vibration from worn rear hub components
Installation Notes and Tips
Verify rear fitment by year, make, and model before installation. Confirm the ABS tone ring configuration, wheel stud pattern, and pilot diameters match the original hub assembly on the vehicle. Inspect the mounting surface, axle area, and brake components for wear or damage before installing the new hub assembly. For a 2002-2003 Honda Civic rear hub replacement, follow factory torque specifications and service procedures.
Quality Assurance
DuraGo states that its hub assemblies are 100% tested and manufactured to industry-leading quality standards that meet ISO/TS 16949:2002.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Honda | Civic | Rear | — |
| 2002 | Honda | Civic | Rear | — |
