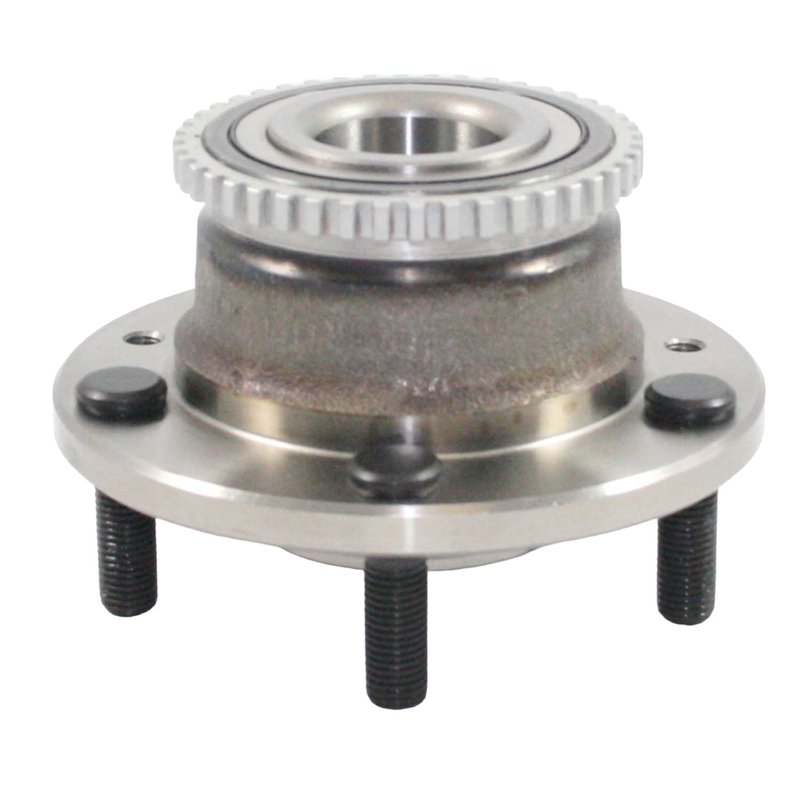

DuraGo 295-12269 Wheel Bearing and Hub Assembly - Front or Rear
| Brand | DuraGo 295-12269 |
|---|---|
| Position | Front and Rear |
| 143 | 114.3 |
| 143 | 4.5 |
| Wheel Stud Size | M12 x 1.5 |
| Wheel Pilot Diameter | 2.64 |
| Wheel Pilot Diameter | 67 |
| Brake Pilot Diameter | 2.83 |
| Brake Pilot Diameter | 72 |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 3.07 |
| Hub Pilot Diameter | 78 |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone ring |
| Flange Offset | 2.4 |
| Flange Offset | 61 |
| Flange Diameter | 140 |
| Flange Diameter | 5.51 |
| ABS Sensor Ring Teeth Quantity | 44 |
| Driven Or Non-Driven Type Hub Assembly | Non-driven |
| Fits | Mazda · 29 vehicles |
OE-style hub assembly. Direct replacement for a worn wheel bearing and hub assembly.
ABS-ready design. Includes a tone ring for anti-lock braking system compatibility.
100% tested. Built with quality components to meet strict standards.
Cross-references SKF BR930114, 512269 and 513131 for the same application. See all 17.
DuraGo 295-12269 Wheel Bearing Hub Assembly
DuraGo 295-12269 is a non-driven wheel bearing and hub assembly for select Mazda applications. It is built with quality components, 100% tested, and engineered to reduce friction while supporting smoother wheel rotation and improved fuel economy.
Key Features
- Wheel bearing and hub assembly for front or rear service, depending on vehicle application
- Non-driven hub assembly design
- 5 wheel studs with M12 x 1.5 wheel stud size
- ABS-equipped design with tone ring sensor system
- 44 ABS sensor ring teeth
- Wheel pilot diameter: 67 mm (2.64 in.)
- Brake pilot diameter: 72 mm (2.83 in.)
- Hub pilot diameter: 78 mm (3.07 in.)
- Flange diameter: 140 mm (5.51 in.)
- Flange offset: 61 mm (2.4 in.)
Detailed Description
This DuraGo hub assembly, part number 295-12269, is a direct-fit replacement for select Mazda MPV, Protege, Protege5, Millenia, and 929 models. It is built to match the specified hub dimensions and ABS tone ring configuration, helping restore proper wheel support and sensor operation on vehicles with anti-lock braking systems. This part cross-references SKF BR930114 for the same application.
Compatible With 2000-2006 Mazda MPV, rear; 2000-2003 Mazda Protege, rear; 2002-2003 Mazda Protege5, rear; 2001-2002 Mazda Millenia, rear; 1989-1998 Mazda MPV, front; and 1992-1995 Mazda 929, front. If you are replacing a worn Mazda MPV hub assembly or sourcing a rear wheel bearing hub assembly for a Mazda Protege, DuraGo 295-12269 provides the required fitment and ABS-related dimensions.
What It Helps Address
- Wheel noise caused by a worn hub bearing
- Excessive play or looseness at the wheel hub
- ABS warning light concerns related to hub sensor ring wear
- Uneven wheel rotation from a damaged hub assembly
- Vibration or roughness from a failing bearing surface
Installation Notes and Tips
Verify the vehicle position, ABS configuration, and hub dimensions before installation. Confirm that the wheel stud pattern, pilot diameters, and flange measurements match the original part on the Mazda MPV, Mazda Protege, Mazda Protege5, Mazda Millenia, or Mazda 929 application. Always inspect related brake and suspension components during replacement to help ensure proper operation after service.
Quality Assurance
DuraGo manufactures this hub assembly to industry-leading quality standards and states that each unit is 100% tested before release. The part is produced to meet ISO/TS 16949:2002 requirements.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Mazda | MPV | — | Rear | — |
| 2005 | Mazda | MPV | — | Rear | — |
| 2004 | Mazda | MPV | — | Rear | — |
| 2003 | Mazda | MPV | — | Rear | — |
| 2003 | Mazda | Protege | — | Rear | — |
| 2003 | Mazda | Protege5 | — | Rear | — |
| 2002 | Mazda | Millenia | — | Rear | — |
| 2002 | Mazda | MPV | — | Rear | — |
| 2002 | Mazda | Protege | — | Rear | — |
| 2002 | Mazda | Protege5 | — | Rear | — |
| 2001 | Mazda | Millenia | — | Rear | — |
| 2001 | Mazda | MPV | — | Rear | — |
| 2001 | Mazda | Protege | — | Rear | — |
| 2000 | Mazda | MPV | — | Rear | — |
| 2000 | Mazda | Protege | — | Rear | — |
| 1998 | Mazda | MPV | RWD | Front | — |
| 1997 | Mazda | MPV | RWD | Front | — |
| 1996 | Mazda | MPV | RWD | Front | — |
| 1995 | Mazda | 929 | — | Front | — |
| 1995 | Mazda | MPV | RWD | Front | — |
| 1994 | Mazda | 929 | — | Front | — |
| 1994 | Mazda | MPV | RWD | Front | — |
| 1993 | Mazda | 929 | — | Front | — |
| 1993 | Mazda | MPV | RWD | Front | — |
| 1992 | Mazda | 929 | — | Front | — |
| 1992 | Mazda | MPV | RWD | Front | — |
| 1991 | Mazda | MPV | RWD | Front | — |
| 1990 | Mazda | MPV | RWD | Front | — |
| 1989 | Mazda | MPV | RWD | Front | — |
